Item # 57390 BRAND: Painless

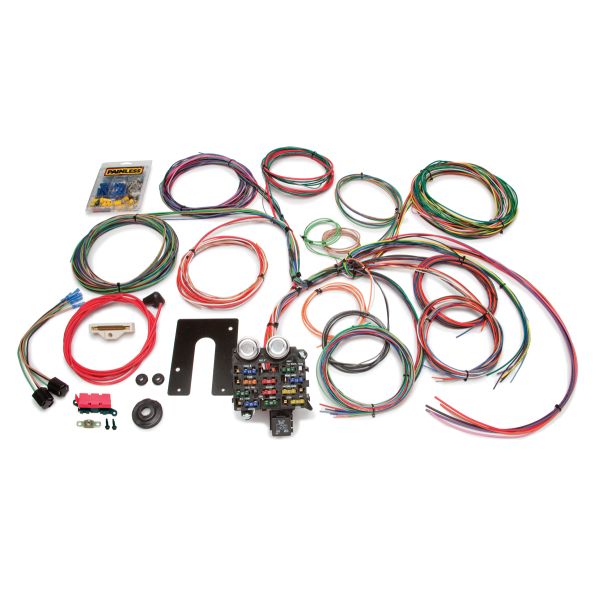

Painless Classic Customizable Jeep CJ Harness - 1975 and earlier - 22 Circuits 10105

22 Circuit Classic Customizable 1974 & Earlier Jeep CJ Harness
22 Circuit Classic Customizable 1974 & Earlier Jeep CJ Harness
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 174.61ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$489.99
Loading...
Loading...
Save for Later
22 Circuit Classic Customizable 1974 & Earlier Jeep CJ Harness
  • 90-Day Returns
  • Technical Support
Painless Classic Customizable Jeep CJ Harness - 1975 and earlier - 22 Circuits 10105

Product Overview:

Description

This 22 circuit Painless Performance factory upgrade harness for 1974 & earlier CJ Jeeps uses the OEM style fuse block. Open ended wire leads allow for custom routing of the wiring for your CJ. This harness routes the wires through a firewall via a grommet in the bulkhead and the ignition switch is in the dash for your earlier Jeep CJ. Also included are pre-wire plugs for headlights. Each wire is custom printed with the circuit identification as well as using factory color codes for easy installation.



Part Number: 10105
Year: 1944-1974
Make: Jeep
Model: CJ
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any

Specifications

Number of Circuits: 22 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Blade & Maxi Fuse
Firewall Passthrough: Bulkhead Connector
Color Code Based: Factory Jeep
Circuit Designations: Printed on Wires


Connections Included:

Two Headlight Pigtails, 10SI & 12 SI Alternator, Dimmer Switch and 20 Extra 56 Series Terminals for use with any Factory GM 56 Series Connector such as Headlight Switch, Wiper Switch or A/C Switch/Blower Motor.

This harness includes circuits for:

  1. A/C & Heat
  2. Accessory / Cigarette Lighter
  3. Backup Lights
  4. Brake Lights
  5. Charging
  6. Dome Light
  7. Electric Choke
  8. Emergency flashers
  9. Fan Relay Activation Power
  10. Fused Power Source
  11. Headlights
  12. Horn (Relay)
  13. Ignition Coil
  14. Instrument Panel Lighting and Gauges*
  15. Park Lights
  16. Radio/Clock (Constant and Switched)
  17. Starting
  18. Tail Lights
  19. Third Brake Light
  20. Turn Signals
  21. Under Hood Light
  22. Wipers

* Including Wires For:
Brake Warning Light
Emergency Brake Light
Four Wheel Drive Light
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter
