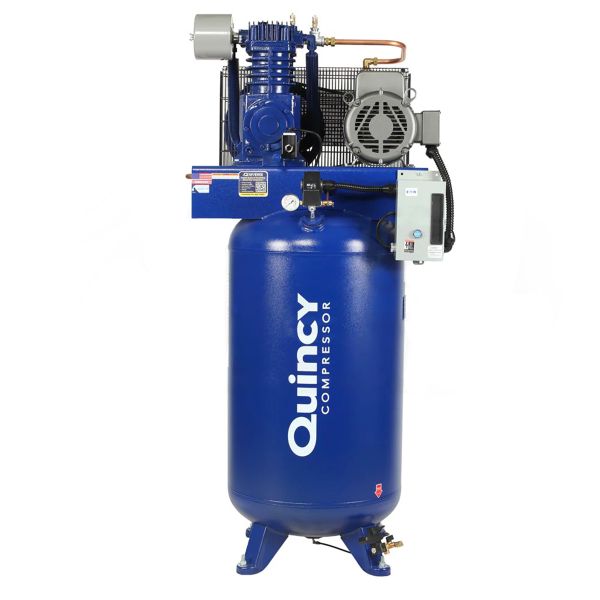

Quincy 7.5 HP 80 Gallon Two Stage Air Compressor 271C80VCB23M
QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Heavy Duty Industrial Components
- 50,000 hour -or more- pump life; 5 year pump warranty
- 1725 rpm industrial motor to continuously run your business
Special Low Oil Protection & Extra Capacity Oil Reserve
- Extends the life of the splash lubricated, cast-iron pump
High-Efficiency Finned Intercooler
- Reduces air temperature for maximum performance
Magnetic Starter
- Provides thermal overload protection for the motor
2-Piece Connection Rods
- Fewer moving parts increases reliability
ASME Certified; Proudly Built In The USA
- Pressure relief valve, discharge and receiver tank for safety
Automatic Tank Drain & Air-Cooled Aftercooler
- Less maintenance and prolongs tank life
- Allows use with a refrigerated air dryer (sold separately)
Specifications
| Motor | |
| Voltage: | 230 Volt AC |
| Phase: | 1-Phase |
| Magnetic Starter: | Yes |
| Amp Draw: | 40 |
| Recommended Breaker: | Consult Certified Electrician |
| Engine | |
| HP: | 7.5 |
| Pump | |
| CFM: | 22.6 |
| CFM Rated @: | 175 PSI |
| Pump Material: | Cast Iron w/ Aluminum Head |
| Max PSI: | 175 PSI |
| Oil Sight Glass: | Yes |
| Pump Type: | Two-Stage |
| After Cooler: | Yes |
| Pump Drive: | Belt Drive |
| Oil Type: | Oil Lubricated |
| Oil System: | Splash Lubricated |
| Pump Low Oil Shut-off: | Yes |
| Tank | |
| Tank Size: | 80 Gallons |
| Tank Outlet: | 3/4 Inch |
| Electronic Drain Valve: | Yes |
| Tank Orientation: | Vertical |
| Accessories | |
| Air Dryer: | No |
| Overview | |
| Weight: | 720 Pounds |
| Certification: | ASME. UL, CSA |
| Product Length: | 37 Inches |
| Product Width: | 24 Inches |
| Product Height: | 74 Inches |
| Power Type: | Electric |
