Rockwood® 1/2 InchNPT 2 Stage Air Filter Dryer System
Rockwood 1/2” NPT 2 Stage Air Filter Dryer System
Rockwood 1/2” NPT 2 Stage Air Filter Dryer System
CertiFlat FR2436-U 24 Inch X 36 Inch fabRack Leg Kit for fabBlocks is rated
out of
5 by
4.
Rockwood 1/2” NPT 2 Stage Air Filter Dryer System
90 day Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description

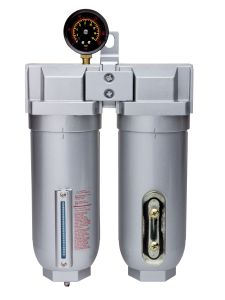

The Rockwood 1/2” NPT, 2 Stage Air Filter/Dryer System includes a high-capacity, drainable Coalescing Filter and Bowl to trap moisture and other impurities from a compressed air supply. The Dryer section contains a replenishable pellet-type of moisture absorbing desiccant. Also include is an integral mounting bracket for secure mounting.
- Bowls and housing constructed of aluminum
- Coalescing filter removes oil vapor, water and dirt
- Desiccant dryer bowl provides dry air for your system
- Wall mountable
Warranty
Specifications
| 1/2” FNPT Inlet | |
| 1/2” FNPT Outlet | |
| Flow Rate | 45 CFM |
| Maximum Pressure | 210 PSI |
| Minimum Pressure | 20 PSI |
| Operating Temperature | 41 Degrees F to 140 Degrees F |
| Filters Down to .01 Microns | |
In the Box
Contents
- (1) 1/2” FNPT inlet Coalescing Filter with Drain Valve
- (1) 1/2” FNPT outlet Dryer
- (2) 2 Bags of Desiccant
- (1) Integral Mounting Bracket
- (1) Pressure Gauge
Guides & Accessories
Instructions
Safety Information
Read Instructions thoroughly read and understand these product instructions before using this equipment. Failure to follow all warnings can result in tool damage or serious physical injury. Keep these product instructions for future reference.
Accessories
Application Tips
Reviews
Rated 5 out of
5
by
Glen from
Upgrade for shop compressor
Have not used this yet, bought it for my spray paint gun. Hung it on the wall behind my compressor and plumbed it in with 1/2 hose and quick connects to keep it isolated when I don’t need dry air. Looks good and should work great!
Date published: 2024-02-01
Questions & Answers
I plan to use 1/2 npt piping for my air compressor lines in my home shop. do I need to use the 1/2 in. npt filter drier assembly or could I get by with the 3/8 in. set up
3/8 would be sufficient enough to use the air dryer in, you will not want to go with anything lower than that.
Date published: 2019-07-18
If we only use one bag of desiccant, I cannot see it through sight glass. So I put two in it. Will that cause a problem?
The addition bag of desiccant will not cause any issues.
Date published: 2022-10-28
How much of the desiccant do you put in the Rockwood 1/2" NPT 2 stage filter dryer system. It doesn't really say.
i bag of desiccant fits in this filter at a time.
Date published: 2018-10-26
How often does the Desiccant have to be replaced? Is the Desiccant you sell in the quarts and gallons what is needed to replace the Desiccant in the Rockwood 1/2” NPT 2 Stage Air Filter Dryer System Item #31727 that you sell?
The Desiccant sold in quarts is perfect to refill this system. As for how often it needs to be replaced this depends on too many variables to quote a time. The more humid your environment, the more often you use the system, and the volume of air the tool in question uses all play into how fast this desiccant gets consumed.
Date published: 2020-12-27
Would this unit be suited to keep the air dry for a Central Pneumatic 110 lbs. Pressurized Abrasive Blaster so the sand will not get moisture in it and clog up?
This would work perfect to hook up before going into an abrasive blaster.
Date published: 2021-05-13
Hi,I want to paint my car probably the only car i will paint what would be a good set up i have a 60 gallon 155psi max compressor and will install filter/dryer etc. about 75' from compressor. Thanks
The shorter the air hose the better you'll be, unless you have a compressor which has a pretty high CFM output. Say your paint gun requires 6 CFM and you have 75 feet of hose. This would mean you would probably want approximately 12+ capable CFM output compressor to make sure you can account for loss in the long air hose.
Date published: 2022-03-23
Where is this made?
This unit is manufactured in China to Eastwood's Specifications.
Date published: 2018-07-19
Is the 1/2" mounting bracket between the bowls that connect them together available for purchase seperatelt to work with the 1/2" rockwood pressure regulator. I see the 3/8" version but not one for 1/2"
Unfortunately we do not have the connecting block for the 1/2 filter at this time.
Date published: 2018-07-09
