Eastwood Solid Rivet Kit

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Solid Rivet Kit

Product Overview:

Description

The Eastwood Solid Rivet Kit is designed to install AN470 series aluminum rivets in steel, aluminum.

  • Designed to install AN470 series aluminum rivets in steel and aluminum
  • Create Pro Custom Metal Fabrication Work
  • Perfect for Race Cars & Street Rods for a One oF a Kind Look
  • Includes High Quality Pneumatic Rivet Gun
  • Comes with High Quality Aircraft Rivets
"A few years ago we made some big elaborate set up to rivet in the middle of a panel where our riveter ran out of reach. This Eastwood handheld made it easy to deal with semi closed areas like this. It was the perfect solution for this project"
-Rob Ida/ Ida Concepts

The Eastwood Solid Rivet Kit is designed to install AN470 series aluminum rivets in steel, aluminum. Used to structurally join panels for underhood, door skins, interiors, etc. This kit includes all components required to drive AN470 (round head) rivets in both 1/8 and 3/16 inch diameter. These are the same rivets used on aircraft and high performance race vehicles. A complete instructions included with kit. The kit includes a professional pneumatic rivet gun, 1/8 inch and 3/16 inch rivet sets for round head rivets, universal bucking bar, 1/8 inch and 3/16 inch Cleco kit and 1/4lb of 1/8 inch and 3/16 inch rivets.

Warranty

365 days warranty, some components USA some China

In the Box

Contents

20139 Rivet bucking bar -
Universal bucking bar 3-3/4" long, 2" wide, 1" high. Weighs 1.5 lbs . Made of cast steel.

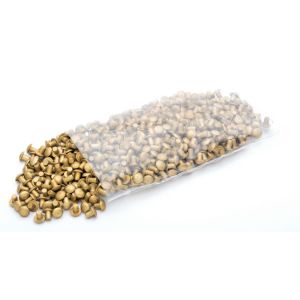

20140 1/8" dia x 3/16" long rivet 1/4 lb (approx 250 pcs) -
1/8" x 3/16" 470 style aluminum rivet. Made for 1000 series aluminum for aluminum or steel panels.

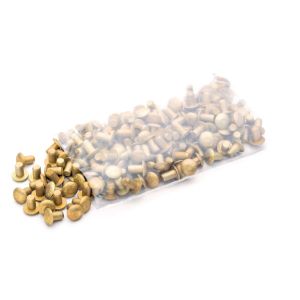

20141 3/16" dia x 5/16" long rivet 1/4 lb (approx 200 pcs) -
3/16" x 5/16" 470 style aluminum rivet. Made for 1000 series aluminum for aluminum or steel panels.

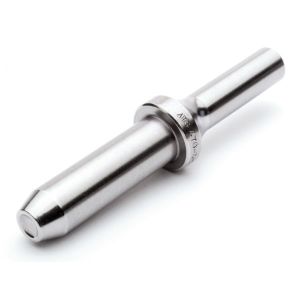

20142 Rivet set for 1/8" rivet -
3.5" overall length with 1/8" head for standard AN470 or MS20470 rivets. Shank style .401


20143 Rivet set for 3/16" rivet -
3.5" overall length with 3/16" head for standard AN470 or MS20470 rivets. Shank style .401


20144 Pneumatic Rivet Tool -
4500 blows per minute rivet gun with 1/4 inch air inlet and 2.8cfm requirement at 90psi. Variable speed trigger accepts standard .401 shank tools.


19074 Panel Holding System 1/8" -
Includes 10 blind holders, 2 side grip holders, and a compression pliers.


13752 Blind Grip Panel Holders 3/16" -
Pack of 10.

Guides & Accessories

Instructions

Safety Information

Always wear hand face and eye protection when cutting, forming and riveting metal panels

Accessories

20140 1/8 inch dia x 3/16 inch length rivet sold in 1/4 lb ( approx 250 pcs), 20141 3/16 inch dia x 5/16 inch length rivet sold in 1/4 lb ( approx 200 pcs)

Application Tips

Used to structurally join metals panels in place of traditional threaded hardware. AN470 rivets are 10010seris aluminum and once driven will not loosens like typical threaded fasteners with vibration or heat

Reviews

Rated 5 out of 5 by from Rock Solid Riviting Tool I purchased the riveted for making repairs and modifications to aluminum boat s. The tools seems to be very high in quality and has been used consistently in the shop. I plan on buying more Eastwood products because of this one tool.
Date published: 2023-11-24
Rated 5 out of 5 by from Bomb dot com Eastwood is the only place I go to save money and buy high quality tools. Love you guys!
Date published: 2021-07-10
Rated 5 out of 5 by from Really good tool Had it a few months now and works great. The video on this page was enough to get me started but super easy lay to pick up (it’s my first experience using rivets) wish it had a hard case to keep it all together when not in use but it’s a great tool.
Date published: 2020-12-22
Rated 5 out of 5 by from Amazing Tool and Kit I bought this to work on my vintage camper. The video and instruction guide were very helpful. Happy to learn a new skill that I was very anxious about. Just call me Rosie
Date published: 2020-12-07
Rated 5 out of 5 by from Good starter kit! I've been watching this on the site for years, when an opportunity to buy it for a project came up, I bought it, and I'm glad I did. For a reasonable price, you get everything you need to complete a small-medium project without having to buy more rivets. Definitely enough tools and consumables for you to feel confident in your skills with the process.
Date published: 2020-02-16
Rated 5 out of 5 by from Fantastic tool, very fast shipping I repaired some old leaky rivets in a 1956 Sea Nymph boat with ease. Just added some marine sealant to the underside of rivets and the ole girl floats and is now leak free. I also repaired a 1952 Arkansas traveler thats was missing 9 rivets that was temp fixed with jbweld.
Date published: 2019-07-10
Rated 5 out of 5 by from Works great Does an excellent job of setting rivets. If you are riveting soft aluminum as I did, cut the air pressure or it may deform (crush) the aluminum under the rivet enough to damage the panel. Test first!
Date published: 2017-09-03
Rated 5 out of 5 by from Cool Tool!! A very nice piece of shop equipment, as is anything from Eastwood. Easy to use, and does a superb job. I look for things to use it on.
Date published: 2016-05-25
  • y_2024, m_4, d_16, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_12
  • loc_en_US, sid_20127, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.5ms
  • REVIEWS, PRODUCT

Questions & Answers

Will this work on floor panels for a Model A?

Asked by: Vintage car
Yes, This will work on sheet metal that is under 3/16 thick. you could also purchase seperately the Eastwood 3/16in dia x 5/16in long rivets for sheet metal that is less than 5/16 thick (20141)
Answered by: James Project Advisor
Date published: 2023-12-01

Would this work for 1/4" solid aluminum rivets with the correct rivet set?

Asked by: Chulki
This set up will not work with 1/4" rivets. We apologize for the inconvenience.
Answered by: Kelly H
Date published: 2023-11-11

Will this work on the bottom of a boat like a fourteen foot sterns or a twelve foot wards boat

Asked by: Larry32
Yes the Eastwood Solid Rivet Kit(20127) will work for riveting Aluminum hull boats. The kit comes with Aluminum rivets. Follow established guidelines for riveting and sealing Aluminum boats.
Answered by: vince
Date published: 2022-06-22

are the aluminum rivets in 20127 kit anodized why are they gold

Asked by: rjb harleydog
These rivets are anodized gold.
Answered by: Kelly H
Date published: 2020-05-28

Will this rivet gun also work with other types of aluminum rivets; brass and mild (soft) steel rivets?

Asked by: Woody
This gun will work with other style rivets as well.
Answered by: Scott C
Date published: 2022-06-22

Will this set 3/16 steel rivits?

Asked by: Advanced
This product will certainly set 3/16 rivets.
Answered by: SeanW
Date published: 2022-06-22

Does it come with a case?

Asked by: Cosmo
This product comes in a cardboard box and does not have a case with it.
Answered by: SeanW
Date published: 2020-04-02

Can these be used to secure floor replacement panels when used with a seam sealer?

Asked by: Jvan
Yes, these rivets will hold the floor panel in place. Use the seam sealer on the underside of the floors, but you can seam seal the top as well if you feel the need.
Answered by: Bob G
Date published: 2020-04-02
