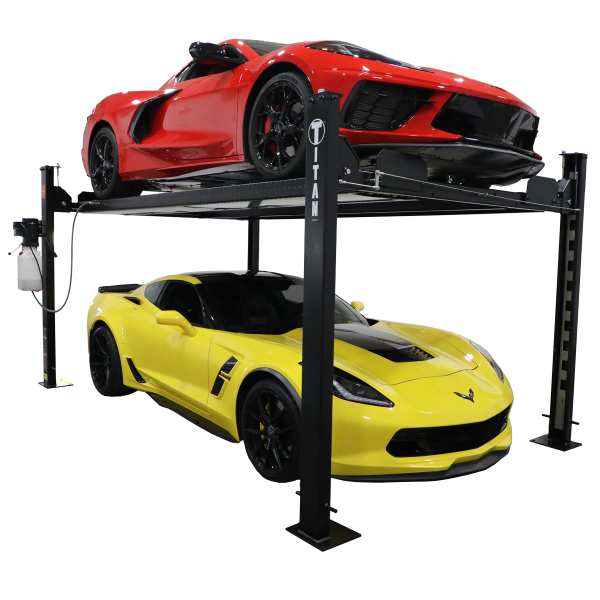

Titan Lifts SDPL-8000 - Four-Post - 8000 lb. Capacity SDPL-8000

Titan Lifts SDPL-8000 - Four-Post - 8,000 lb. Capacity SDPL-8000
Titan Lifts SDPL-8000 - Four-Post - 8,000 lb. Capacity SDPL-8000
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 21.79ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$3,999.99
Loading...
Loading...
Save for Later
Titan Lifts SDPL-8000 - Four-Post - 8,000 lb. Capacity SDPL-8000
  • 90-Day Returns
  • Technical Support
Titan Lifts SDPL-8000 - Four-Post - 8000 lb. Capacity SDPL-8000

Description

The Titan 4 post parking/storage lifts are ideal for automotive enthusiasts or if you just need extra space in your garage. They are heavy duty with one piece diamond plated runways, 3 inch cylinder and a durable scratch-resistant powder coated midnight black finish.

They come with a 110 Volt power unit easily adaptable to most residential applications. Heavy duty multiple position locking mechanism and enclosed carriage arms to ensure maximum safety. Easy operation lock handle is located by power unit minimizing any bending or squatting. There are many options available to personalize the lift to your needs. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Open up shop space you’ve never had before by going vertical with a Titan SDPL-8000 four-post vehicle lift. This heavy-duty auto storage lift has an 8,000-pound rated capacity thanks to aircraft-quality cables, steel ramps and a dual locking system. The open bottom lets you do oil changes and other maintenance. An 8,000-pound electric vehicle lift is also a great option for long-term storage of seasonal or project cars. It’s backed by a five-year structural warranty and our 100% customer satisfaction guarantee.

Features:

  • 8,000 lb lifting capacity
  • Aircraft quality cables rated at 14,500 lb
  • 18-5/8" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Single point safety lock release handle located near power unit
  • Primary locking system with secondary slack safety lock
  • Large 3" diameter cylinder
  • Powder coated in midnight black finish
  • Diamond plated steel approach ramps
  • 1 year electric/hydraulic warranty
  • 5 year structural warranty

Included

  • Caster Kit
  • Jack tray
  • 3 Drip Trays
  • Steel Ramps
  • Optional

  • Sliding Jacks Available
  • Aluminum Ramp Upgrade
  • Specifications

    Center of Baseplates - Width 93''
    Outside of Baseplates - Width 103-1/2''
    Outside of Columns - Width 100-3/4''
    Width Between Columns 94-3/8''
    Overall Width w/Motor 114-3/4''
    Drive-Thru 80''
    Between Runways 37-1/2''
    Out to Out - Runways 74-3/4''
    Length of Runway 165-1/2''
    Width of Runway 18-5/8''
    Total Length of Ramp 37''
    Baseplate Dimensions 10-1/4'' x 12''
    Column Dimensions 3-1/4'' x 6''
    Center of Baseplates - Length 163-1/2''
    Outside of Baseplates - Length 175-1/2''
    Outside of Columns - Length 169-3/4''
    Inside of Columns - Length 157-3/4''
    Overall Length w/Ramps 208-5/8''
    Lifting Height 4-3/4'' - 74-3/4''
    Overall Height (min) 86-7/8''
    Lifting Capacity 8,000 lb
    Net Weight 1,643 lb
    Power Unit 110V-120V, 60Hz, 3HP/Single Phase, 3 prong power plug, 20AMP
    SHIPPING
    Shipping Length 171''
    Shipping Width 22''
    Shipping Height 39''
    Shipping Weight 1,735 lb

    Warranty

    5 Year Structure / 1 Year Electrical

    Shipping

    Unloading: A delivery dock and/or forklift is required for delivery of this product. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise.

    Customer Reviews

    • bvseo_sdk, p_sdk, 3.2.1
    • CLOUD, getReviews, 20.85ms
    • REVIEWS, PRODUCT
    • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

    Questions & Answers

    to stack 2 standard vhls what roof height would you recomend?

    Asked by: Dick C
    measure the height of the cars and add them together.  measure the height of the lift pan tread area off of the floor add that in.  find out how far. the locking stops are apart, add that in...take a total.  Measure from floor to bottom of lowest point in the roof--remember you may have to have your garage door open so check this measurement with IT OPEN....  compare numbers...   if overall number is less that added together number, you got a problem....
    Answered by: Hooper
    Date published: 2021-10-13

    How much room is needed in front of the lift, to install the t-bar section (part# 76)?

    Asked by: DanP
    For answers to lift installation questions, contact Titan lifts at 1-888-908-4826
    Answered by: vince
    Date published: 2021-02-14
