Item # 55178 BRAND: Tuxedo

Tuxedo Distributors Cross Flow Paint Booth 22.6L-13W-8.6H 1PH-230V PSB-AFCF23B-1PH-230V-AK

Tuxedo, iDEAL, Cross Flow Paint Spray Booth
Tuxedo, iDEAL, Cross Flow Paint Spray Booth
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 106.73ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$17,099.99
Loading...
Loading...
Save for Later
Tuxedo, iDEAL, Cross Flow Paint Spray Booth

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Tuxedo Distributors Cross Flow Paint Booth 22.6L-13W-8.6H 1PH-230V PSB-AFCF23B-1PH-230V-AK

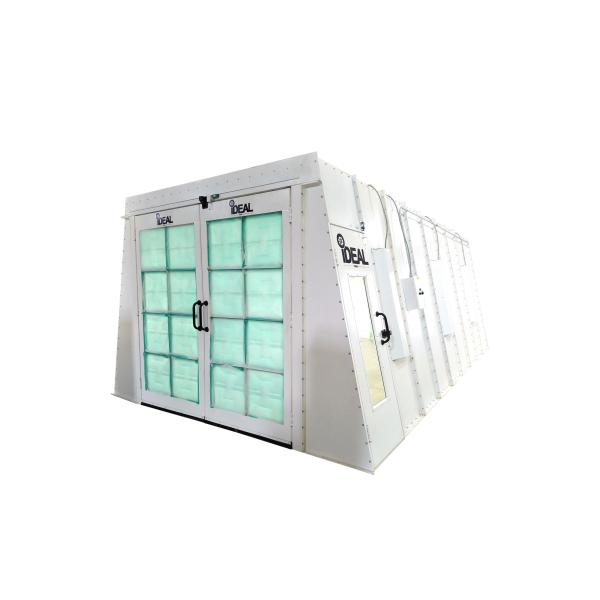

main product photo

Product Overview:

Description

Cross Flow Paint Spray Booth

The iDEAL ‘A-Frame’ Cross Flow Paint Spray Booth is an economic, commercial grade paint spray booth designed to provide superior lighting with optimal ‘cross draft’ air flow to produce a high-quality paint finish in a safe & controlled ventilated work area. The iDEAL Cross Flow Paint Booth is great for small to mid-sized Automobiles, along with being an ideal solution for Industrial or Wood finishing applications. The exhaust fan draws clean filtered air through the front entry door’s intake filters and flows towards the rear of the booth into the filtered exhaust chamber, and then discharged upwards through exhaust fan & ducting. The included bright white powder-coat finish, deluxe control panel, premium filters & high-quality tube-axial exhaust fan complete the package for a premium, high quality Paint Spray Booth, all at a great value!

Features

  • Heavy duty precision punched 18 Gauge panel construction
  • Optimal ‘cross draft’ air flow w/ CFM 9,500 @ .5 static pressure
  • Tilt panel design for optimal lighting coverage
  • Inside Dimensions: 22′-6″ L X 13′ W X 8′-6″ H
  • Convenient 5/16” bolt & nut assembly
  • Deluxe Control Panel included
  • Bright White Powder Coat panel Finish – (inside & outside)
  • Manometer, Solenoid Valve, Hardware & Sealant Included
  • UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
  • NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
  • Premium AFC intake & exhaust filters
  • (6ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
  • (24ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length
  • Double Entry Doors w/ shutoff switches
  • Personnel Door w/ viewing window & shutoff switch
  • Meets NFPA 33 standards
  • Optional: 1PH electrical, Personnel door kit & booth extension kits

Warranty

1 Year Manufacturers Warranty

Specifications

Paint Booth Model PSB-AFCF23B-1PH-230V-AK
Inside Dimensions 22'-6"L X 13'W X 8'-6"H
Outside Dimensions 25'-4"L X 13'-4"W X 8'-10"H
Fan / Motor 24" Tube Axial Fan
3HP-3PH-230/460VAC-60HZ
Non-Spark, NEMA Rated
CFM 9,500 @ .5 Static Pressure
Lighting 6 Each T-8 / 4 Bulb Light Fixtures
Options Single Phase Electrical Configuration
8' Exhaust Duct Kit (25" Diameter)
Side Personnel Door Kit
30" Lighted Extension Panel Kit
30" Solid Extension Panel Kit
Electric Booth Heater 3 Phase
Electric Booth Heater 1 Phase
LED Lighting Upgrade Kit

Shipping

Free Shipping

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

Click here for product manual

Safety Information

Please read and follow manufacturers instructions.
