Item # 56427 BRAND: Yost Vises

Yost Model 906-HV High Visibility All Steel Utility Combination Pipe and Bench Vise

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 25.15ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$175.99
Loading...
Loading...
Save for Later

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Yost Model 906-HV High Visibility All Steel Utility Combination Pipe and Bench Vise

Product Overview:

Description

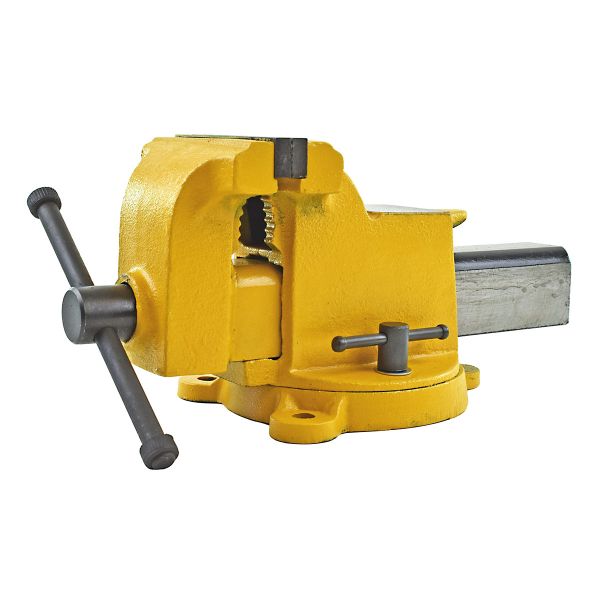

The Yost 906-HV 6" high-visibility all-steel utility combination pipe and bench vise with 360-degree swivel base mounts to a workbench to provide light-duty clamping action. The 360-degree swivel base adjusts the direction of the jaws for proper placement. Hand-tightening the two lock knobs on the base secures its position. The cast steel body has been painted with safety-yellow paint for visibility and has a flat portion that acts as a reinforced anvil and additional work surface. Both the top jaws and pipe jaws are grooved for enhanced grip. The top jaws are made of hardened steel and can be replaced when worn, and the pipe jaws are cast in place. The jaws draw closer together or farther apart by turning the vise handle clockwise or counterclockwise.

The main screw that controls the jaws has been continuous rolled for high strength and is covered by a bar to protect it from damage. A rubber washer on either side of the handle prevents unwanted sliding when turning, and the balls on each end unscrew to enable replacement of the handle if worn. The base has three 0.56"-diameter holes for mounting hardware (not included).

  • Made of structural cast steel (SC37)
  • Replaceable Hardened Steel Serrated Top Jaws
  • Finished in High Visibility Safety Yellow
  • All Steel Vise features Full 360 Degree Swivel Base With 2 Lockdowns
  • Permanent Pipe Jaws and a Large Reinforced Anvil
  • No Pinch Main Screw Handle

Overall dimensions*6.5 x 7 x 16 in. (H x W x D)
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Yost manufactures a wide range of vises, including bench-mount, woodworking, and drill-press styles. The company, founded in 1908, is headquartered in Pottstown, PA.

Warranty

Yost Warranty Terms

Specifications

Model Number: 906-HV
Jaw Width (nominal inches): 6
Jaw Opening (nominal inches): 6
Throat Depth (nominal inches): 3
Min Pipe Capacity (nominal inches): 0.5
Max Pipe Capacity (nominal inches): 2
Base: Swivel
Material: Steel
NSN: No
Packaging Dimensions: 18 inches x 9 inches x 9 inches
Shipping Weight (lbs): 32
Country of Origin: Taiwan

In the Box
