ATK Chevy 350CI Engine 345HP Complete HP98C

ATK Chevy 350CI Engine 345HP Complete HP98C

Item #22654

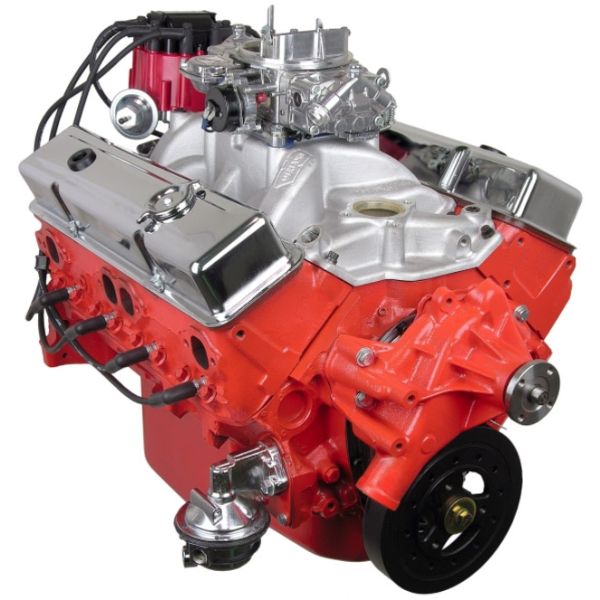

HP98C ATK Chevy 350CI Complete Engine 345HP
Quantity:
Quantity: close
Only $3,750.00

• This item ships directly from the manufacturer

• Expected delivery time is 1 – 2 weeks

• Not available in Eastwood Retail Stores

• Order may not be changed or canceled



Free Shipping on this item
< Back

Details

Improve the all-around performance of your ride by installing this ATK HP98C Chevy 350CI Engine 345HP Complete. It has high-quality components that are hand assembled and balanced by experts for reliable engine performance. This crate engine offers 345 horsepower with good street manners, while producing optimal vacuum to support power accessories.

Engine Specifications:

  • Horsepower: 345
  • Torque: 400 lbs./ft.
  • Block: Seasoned OE 4 Bolt Main 1pc Seal Roller Block P/S Dipstick
  • Bore/Stroke: 4.040 x 3.480
  • Displacement: 350 C.I.D.
  • Crankshaft: OE Cast Crank 3.480" Stroke Externally Balanced Rear/Internal Front 1pc.
  • Connecting Rods: OE Powder Metal 5.700" Stock Bolts
  • Pistons: Hypereutectic
  • Piston Rings: Moly Rings
  • Compression Ratio: 9.1:1 Compression
  • Camshaft: Hydraulic Roller
  • Camshaft Specifications: 220/224 @050 .495in/.502ex 110LSA
  • Camshaft Bearings: Installed & Clocked to OEM Position
  • Cylinder Heads: Dart Cast Iron 75cc/165cc 1.94/1.50
  • Freeze Plugs: Brass Installed & Sealed
  • Rocker Arms: Stamped Steel 1.5 Ratio
  • Oil Galley Plugs: Installed & Sealed
  • Oil Pan: OE 5qt.
  • Weight: 450

ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.



Don't forget the engine paint!
Engine Paint


More info...
< Back

Contents

ATK High Performance GM 350 345 HP Stage 2 Long Block Crate Engines


Specifications

Engine Information:

• Oil: 10W30
• Oil Filter: Wix or K&N Recommended Per Your Application
• Fuel Delivery: Quick Fuel Carburetor 680cfm #HR-680-VS
• Intake Manifold: Weiand Stealth Dual Plane #8150
• Spark Plugs: Champion RV12C
• Spark Plug Gap: .035"
• Harmonic Balancer/Damper: POWERBOND Internally Balanced 8" #PB1046-N
• Flex Plate / Flywheel: Externally Balanced 168 Tooth
• Timing: 34-36 Degrees Total
• Water Pump: Long Water Pump
• Firing Order: 1 8 4 3 6 5 7 2
• Exhuast: 1 5/8 Headers
• Fuel Pump: Holley 110GPH Mechanical #12-327-11
• Fuel: 91+ Octane
• Ignition: HEI
• Automatic Transmission Stall Converter: 2200-2500


Warranty

2 Year Manufacturer Warranty


Accessories

Recommended Components:

• Carburetor: Quick Fuel 680cfm vacuum secondary electric choke #793-HR-680-VS
• Fuel Pump: Holley Mechanical 110gph #510-12-327-11
• Spark Plugs: Champion #RV12C or NGK #739-YR5
• Spark Plug Wires: 8mm

Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.


Shipping Instructions

Shipping is free and lift gate will be provided.
