ATK Ford 347 Stroker Engine 410HP Fox Pan Complete EFI HP20C-EFI

Item #22575 Brand:ATK Engines

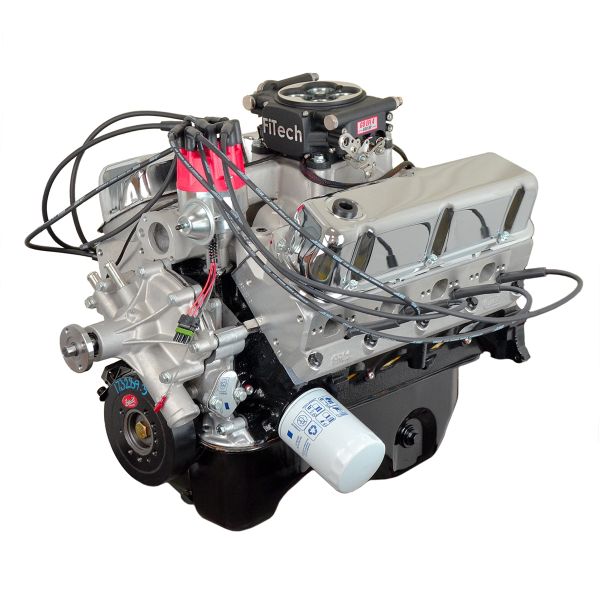

ATK Ford 347 Stroker Engine 410HP Fox Pan Complete EFI HP20C-EFI
ATK HP20C-EFI Ford 347 Stroker Engine 410HP
* ** FREE SHIPPING on ATK Engines. This item ships directly from the manufacturer and is not available for store pickup. Some engines are made-to-order or can be backordered. Delivery can be delayed up to 5 to 6 weeks but typically ship within 2 weeks.
$7,179.74
- +
Quantity:
Quantity: close
OR
Free Shipping on this item

Details

Boasting advanced EFI system, this ATK HP20C-EFI Ford 347 Stroker Engine is sure to offer a trouble-free experience to automobile owners. It comes with all the components from top to bottom, you don’t need to spend much of your time for installing this engine in your custom vehicle.

Engine Specifications:

  • Horsepower: 410
  • Torque: 415 lb/ft
  • Block: Seasoned OE Roller Block
  • Bore/Stroke: 4.040 x 3.400
  • Displacement: 347 C.I.D.
  • Crankshaft: Scat Nodular Iron 3.400" Stroke 1 Piece Externally Balanced 28oz
  • Connecting Rods: Scat 4340 Forged I Beam 5.400 With ARP 8740 Bolts
  • Pistons: Forged Flat Top W Four Valve Reliefs
  • Piston Rings: Moly Rings
  • Compression Ratio: 9.7:1 Compression
  • Camshaft: Hydraulic Roller
  • Camshaft Specifications: 220/224 @050 .512in/.512ex 112LSA
  • Camshaft Bearings: Installed & Clocked to OEM Position
  • Cylinder Heads: Dart Pro 1 aluminum 58cc/170cc 2.02/1.60
  • Freeze Plugs: Brass Installed & Sealed
  • Rocker Arms: Billet Aluminum 1.6 Full Roller
  • Oil Galley Plugs: Installed & Sealed
  • Oil Pan: OE 5qt. Front Sump
  • Weight: 430

ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.



Don't forget the engine paint!
Engine Paint

Contents

ATK High Performance Ford 347 Stroker 410 HP Stage 3 Long Block Crate Engines with EFI


Specifications

Engine Information:

• Oil: 10W30
• Oil Filter: Wix or K&N Recommended Per Your Application
• Fuel Delivery: FITECH Go EFI 600HP TBI
• Intake Manifold: Edelbrock Performer RPM #7121
• Spark Plugs: Autolite #3923
• Spark Plug Gap: .035"
• Harmonic Balancer/Damper: Professional Products Externally Balanced 28oz Dual bolt pattern #80006
• Flex Plate / Flywheel: Externally Balanced 164 Tooth
• Timing: 34-36 Degrees Total
• Water Pump: Reverse Rotation Left Hand Inlet
• Firing Order: 1 3 7 2 6 5 4 8
• Exhuast: 1 5/8 Headers
• Fuel Pump: Fitech Inline Electric Fuel Pump Kit, Command Center or Custom In Tank Setup (Fuel System NOT Provided)
• Fuel: 91+ Octane
• Ignition: Pro Billet with Melonized gear (must run ignition control box)
• Automatic Transmission Stall Converter: 2400-2800

Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.


Shipping Instructions

Shipping is free and lift gate will be provided.
