DO THE JOB RIGHT.
Details

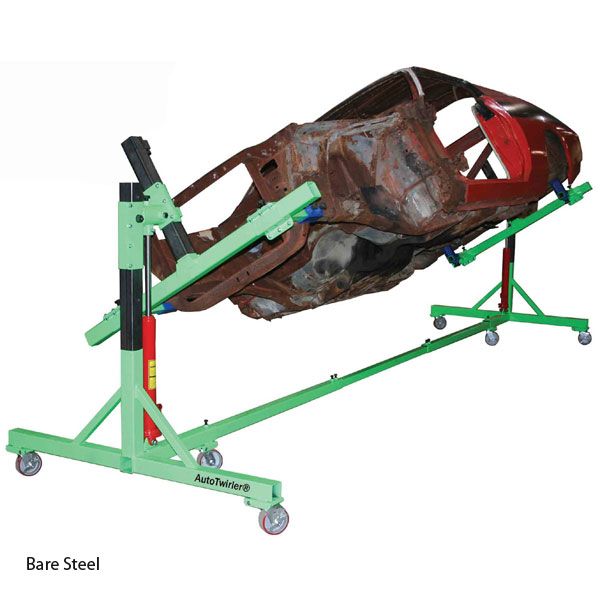

Ultimate PRO-Model Rotisserie rotates a body/frame 360 degrees, and locks it in at any position...hydraulic height adjustment, infinite balancing system, and sealed ball-bearing pivot make it easy to rotate the vehicle, even at maximum weight capacity
Our most advanced rotisserie gives professionals the easiest way to rotate a body or frame for working in those hard-to-reach areas when doing a full frame-off restoration. Eastwood's PRO Model Rotisserie includes a sealed ball-bearing pivot point, with 2 hydraulic cylinders for height adjustment at the pivot point while mounting or working on your project. Also includes our unique balancer kits for raising and lowering the center of gravity. (No manual lifting involved.)
- Two 3-ton, 20" ram hydraulic cylinders for height adjustment at the pivot point
- 2 bi-directional Balancer Kits with acme-threaded rod, drilled and tapped solid steel blocks
- Six easy-rolling 5" polyurethane-over-cast-iron casters (4 locking)
- 21" mounting height (14" with casters removed)
- Bare steel; unfinished
- 3,000-lb. maximum capacity
About Autotwirler Rotisserie PRO Model Bare Steel
Eastwood's PRO Rotisserie gives you easier access to every part of the body/frame for welding, rust repair and other serious restoration jobs.
Sometimes you find your car becomes "top heavy". With a competitor's unit, you might need to get friends to help turn it back over. But with the Eastwood PRO, a simple ratchet on the balancer rod will push the car back upside down to re-balance the car.
Telescoping center bar extends to a full 19-1/2-foot length. Four 16" mounting arms (additional brackets may be required). Casters rated 880 lbs. each. Requires a minimum 7'6" ceiling height, and 67"-wide clearance for base. 63" W x 57" H, 550 lbs. Also available with a blue powdercoat finish (model #12368). 1-year mfr's. warranty on the casters and jack, 5 years on the steel. Made in USA.
Works for most vehicle types, but some additional mounting hardware may be required; ask one of our phone reps for requirements for your specific vehicle.
May require one of the following Mounting Bracket Kits: 13645 – Mustang Kit (fits PRO Model); 13646 – Camaro Kit (fits PRO Model); 13647 – Mopar Front Brackets; 13648 – Uni-Plate Brackets; 12178 – Camaro Brackets (Rear Only); 12181 – U-Weld-It Leaf Spring Brackets; 12176 – U-Weld-It Valance Brackets; 12182 – U-Weld-It Uni-Plate Brackets
Application
Restoration, welding, painting, abrasive blasting, soda blasting
Accessories
Mounting Bracket Kits (see "More Info" tab)
12177, 13656, 13657 Door Bars
12011, 12012, 12746, 12740 Welders
50095 Soda Blaster
12096, 12097 Gel Rust Dissolver
51483Z, 51676, 51677 Rust Converter
50544ZP, 50545ZP 2K Ceramic Chassis Black
Safety
Always make sure the vehicle is secure and balanced when using a rotisserie. Always wear eye, skin and respiratory protection. Read and understand instruction manual before using, since serious vehicle damage or bodily injury could occur.
Warranty
Items that ship via Truck are non-refundable or returnable. Repair parts will be provided during warranty period.
Shipping
Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.
