Product Overview:

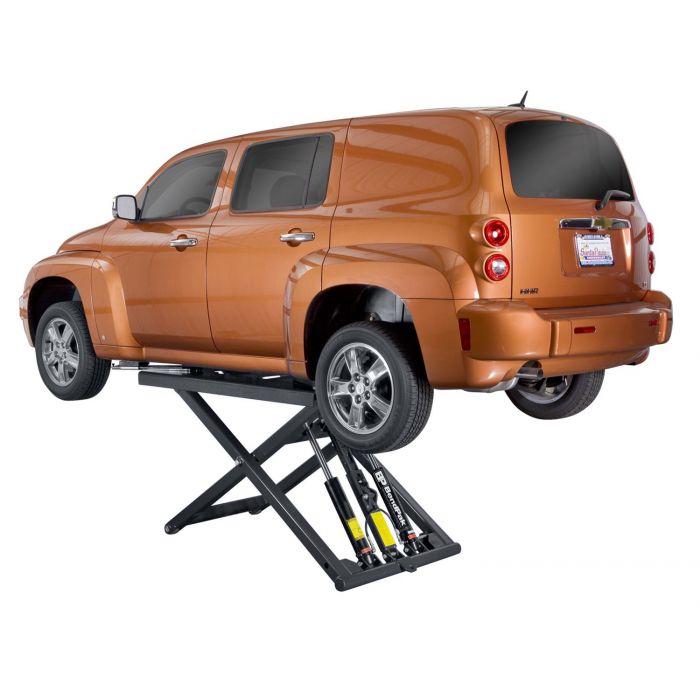

You haven’t experienced state-of-the-art portable lifting convenience until you’ve used the BendPak MD-6XP mid-rise scissor lift. This 6,000-lb. capacity portable mid-rise lift comes loaded with adjustable arm assemblies, safety lock bars with multiple lock positions and free set of truck adapters.

Middle-of-the-Road Height, Top-of-the-Line Design

When it’s time to add some much needed versatility and productivity to your professional shop or home garage, your first stop should always be a BendPak car lift. Our 6,000-lb. capacity mid-rise scissor lift is designed to fit nicely into narrower bays and won’t take up much of your precious floor space. Thanks to its small footprint, even shops that don’t suffer from small work areas will benefit from its ability to be placed just about anywhere without getting in the way. This state-of-the-art scissor lift comes well-equipped with adjustable arm assemblies and an all-important multi-position safety lock bar to give your lifting jobs the dynamic flexibility necessary for the best possible result. Easily and reliably adjust your lift to any secure position.

The true benefit of the mid-rise lift series, however, is their portability. Each car lift features a portable power unit and cart, so wherever you need to work is where your mid-rise lift will be. And since they are designed specifically to engage a vehicle’s frame, the mid-rise lift offers a seamless lifting experience. Your BendPak comes with a free set of truck adapters. It’s just another way that BendPak maximizes your garage's full potential. You can always trust BendPak for increased durability, safety and productivity.

Solid steel-frame support bars
Four support bars make this the strongest mid-rise lift in its class. Easily and safely perform wheel and brake service while finding easy access to your vehicle’s suspension. This is an ideal lift to quickly raise vehicles and work on most components. The MD-6XP is also great for detailing vehicles at a more comfortable height.

Dual master hydraulic cylinder
A hydraulic cylinder with a built-in flow divider ensures a safe, even rise and descent with every use. This is important—even single-platform lifts require an equal balance of pressure to prevent vehicle tipping and ensure weight is evenly applied across the lift platform.

Powerful safety lock bars
Safety arms engage automatically during ascent, a crucial safety feature that essentially makes lift failure impossible. The safety arms are over-engineered to withstand worst-case emergency situations. Even if you lose complete hydraulic fluid pressure due to a leak or hose rupture, mechanical safety locks ensure the platform won’t budge an inch.

Convenient stainless-steel pneumatic cylinders
Rather than fit our mid-rise lift with bulkier spring releases, we’ve installed lighter air cylinders that simultaneously release the safety locks during descent with a simple push of a button. (NOTE: Requires min. 50 PSI, 10-CFM air source at time of installation.) The cylinders are easy to maintain and provide an absolutely safe and controlled descent with each use.

A push-button safety lock release system
Operator controls are located away from the lift and allow safe deactivation of the locks without the need to push or pull cumbersome release bars or lock release handles. The lift functionality is already perfected by our engineers. For your convenience, all you need to do is press the Down button, and watch as the platform fully descends in seconds flat. We couldn’t have made it any easier.

Hinge-point features Zerk grease fittings
Our Zerk fittings feed lubrication at critical wear areas, which is essential for not only the lon




Lifting capacity: 6,000 lbs. (2,724 kg)
Lifting height without adapters: 48'' (1,219 mm)
Lowered height: 4.75'' (121 mm)
Lifting time: 45 sec
Motor: 110 or 220 VAC / 60 Hz / 1 Ph


  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

Fork Lift Required for Delivery

In the Box

Guides & Accessories


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 18.79ms
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

How many locking detents does this lift have and at what heights are they? I think this is important info to have because not every job requires a vehicle to be lifted to the max height but very few of the lifts provide it. Thanks

Asked by: Dave in WV
I bought my unit in Feb. 2010 so I don't know if anything change (other than the price... ouch). Mine has 3 lock positions, they are at 22", 32" and 42" from the ground.
Answered by: Eds Garage
Date published: 2022-12-04

I have three different vehicles I would just lift sure. The 1999 Chevy Tahoe, 1997 Chevy Camaro, thousand one Chevrolet Corvette. How do I know if the arms will reach the list price on all three vehicles? Thank you

Asked by: RayS
