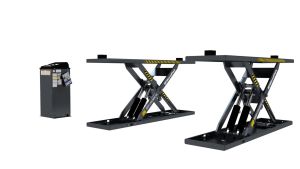

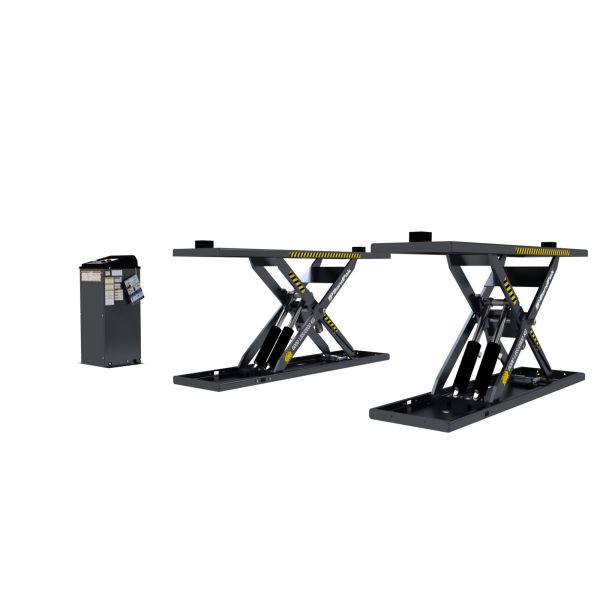

BendPak MDS-6LP - Mid-Rise Scissor - Open Center - 6000 lb. Capacity 5175226

BendPak MDS-6LP - Mid-Rise Scissor - Open Center - 6,000 lb. Capacity 5175226
BendPak MDS-6LP - Mid-Rise Scissor - Open Center - 6,000 lb. Capacity 5175226
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 25.2ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,505.00
Loading...
Loading...
Save for Later
BendPak MDS-6LP - Mid-Rise Scissor - Open Center - 6,000 lb. Capacity 5175226
  • 90-Day Returns
  • Technical Support
BendPak MDS-6LP - Mid-Rise Scissor - Open Center - 6000 lb. Capacity 5175226

Description

The MDS-6 Series Revolution

This open-center mid-rise lift is a mechanical marvel. Decades of experience have taught us a thing or two about designing equipment to safely connect to virtually any vehicle's OEM lift points. A car lift with longer platforms means you get to lift more vehicle types than ever. Some well-meaning shops risk the personal safety and well-being of the vehicles they work on because their lifts don’t full reach those OEM jack points. BendPak's redesigned MDS-6LP corrects that problem once and for all with longer platforms. Its extended lift point spread means vehicles with long wheelbases can be safely raised in seconds flat.

Add or remove ramps at your leisure
Converting your low-rise lift to a flush-mount design is now easier than ever. Our design lets the ramps attach directly to the platform. This makes it easy to work on elevated vehicles, especially in the wheel well area. The approach ramps have slotted receivers and simply drop into place. They are easily removed by pulling upward for rapid disconnect from the frames.

Stronger lift from a collapsed position
The MDS-6LP mid-rise lift has a pivoting “kicker” mechanism that helps lift low ground-clearance vehicles. Unfortunately, some scissor have poor mechanical advantage when fully lowered. They have no lifting force until the frames rise a few inches. Our kicker is like having booster rockets for the first six inches of upward movement.

Four hydraulic cylinders
Your low-rise lift is no wimp. Four super-powerful hydraulic cylinders with a proprietary flow divider ensure the separate platforms remain level and efficient at all times. It takes mere seconds to get to the max rise. This lift also features the best electric-hydraulic technology the industry has to offer.

Solid-steel safety lock bars
As the platforms rise, locks automatically engage at several heights. This safety feature ensures two things: more versatile positions to work from and increased safety as the platforms rise. For your safety, hydraulics are not engaged when the safety arms rest on the mechanical locks. Once the lift moves, hydraulic pressure resumes.

NOTE: The lift platform and contact blocks allow lifting of most unibody and frame contact undercarriages at recommended manufacturer pick‐up points on most vehicles. Be sure to compare your vehicle specifications, including ground clearance and overall height, with the specifications shown before you purchase.

Features:

  • Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class
  • Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity
  • Solid‐steel safety lock bars engage automatically during ascent
  • Convenient stainless‐steel pneumatic cylinders simultaneously release safety locks during descent with a simple push of a button. (NOTE: Requires min. 50 psi, 10 CFM air source at time of installation.)
  • A push‐button safety lock release system is operated away from the lift and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles
  • Hinge point features Zerk grease fitting to allow lubrication at critical wear areas
  • Comes standard with four durable cushioned‐rubber contact blocks, permitting fast vehicle setup
  • Three locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue
  • Powder coat finish provides a long lasting durable finish

Specifications

<table class=''specs''> <tr> <td>Lifting capacity:</td> <td>6,000 lbs. (2,722 kg)</td> </tr> <tr> <td>Lifting Height:</td> <td>43'' (1,093 mm)</td> </tr> <tr> <td>Lifting Height + Blocks:</td> <td>45'' (1,144 mm)</td> </tr> <tr> <td>Lift Platform Dimensions:</td> <td>19'' x 67'' (484 mm x 1,701 mm)</td> </tr> <tr> <td>Width Between Platforms:</td> <td>40'' to 46'' (1,018 mm to 1,168 mm)</td> </tr> <tr> <td>Overall Width:</td> <td>Adjustable</td> </tr> <tr> <td>Overall Length:</td> <td>92.6'' (2,351 mm)</td> </tr> <tr> <td>Lowered Height:</td> <td>4.5'' (116 mm)</td> </tr> <tr> <td>Lifting Time:</td> <td>35 seconds</td> </tr> <tr> <td>Motor:</td> <td>110 or 220 VAC / 60 Hz / 1 Ph</td> </tr> </table>

Warranty

<p><a href="https://www.bendpak.com/Low-Rise-Mid-Rise-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/MDS-6-Series-Mid-Rise-Lift-Manual-5900030-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175226</b></i></a></p>
