BendPak PCL-18B - Mobile Lift System - 208-230/190V, 50/60HZ, 3-Ph - Set of 2 - 36,000 lb. Capacity 5175291
  • 90-Day Returns
  • Technical Support
BendPak PCL-18B - Mobile Lift System - 208-230/190V, 50/60HZ, 3-Ph - Set of 2 - 36,000 lb. Capacity 5175291

Description

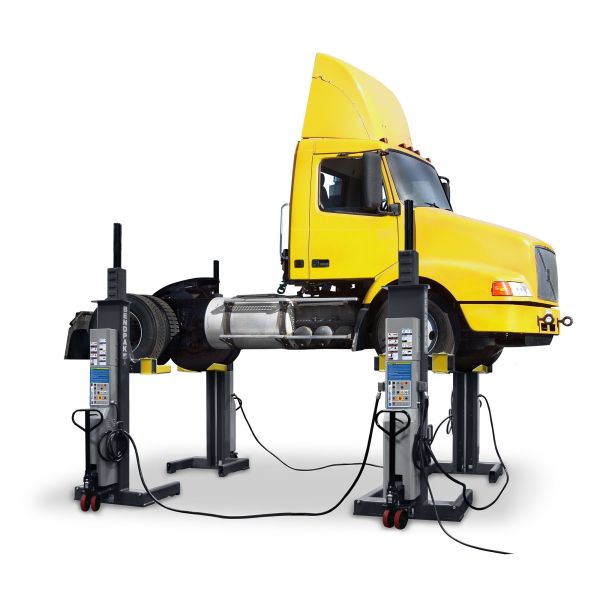

This PCL-18B mobile column lift system comes in a set of 2. When combined, the system lifts up to 36,000 lbs. A set of 2 is the perfect way to expand your lifting capabilities on vehicles with three or four axles. Sets of 4, 6 and 8 are available.

Set of 2 Mobile Column Lifts

With a pair (2) of mobile column lifts, you can add to your existing fleet and expand your lifting capabilities to include larger semi-trucks and heavy-duty vehicles. A minimum of 4 mobile column lifts must be used to lift a vehicle, and heavier vehicles require 6 or 8. This 2-set is a great way to gradually upgrade into the 6 or 8-lift range, offering up to 144,000 lbs. with a full set.

Do not attempt to lift half of a vehicle (the front or back only) with only 2 mobile lifts. Vehicles must be raised on an even plane at all times.

Features:

  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • 208-240V, 3-phase main power system - optional voltages available upon request
  • SINGLE, PAIR or TEAM operation
  • or a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Intuitive controls allow the lift to be fully programmed and controlled from any column
  • Control systems feature 24-volt safety circuitry
  • The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls
  • Smart electronics feature self-diagnostics and self-calibration functions
  • Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
  • Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
  • Two-speed lowering option
  • Each column is equipped with a warning light and audible alarm for critical warning alerts
  • Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
  • Separate key lock enclosure on each column
  • Electronics are multi-fuse protected
  • An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas
  • Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle
  • Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems
  • Extended forks accommodate wide tires and deep wheel configurations Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
  • Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
  • Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
  • Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks

Specifications

<table class=''specs''> <tr> <td>Lifting Capacity</td> <td>18,000 lbs. (8,165 kg)</td> </tr> <tr> <td>A - Overall Height (RAISED)</td> <td>101” (2,565 mm)</td> </tr> <tr> <td>B - Overall Height (LOWERED)</td> <td>146.5” (3,721 mm)</td> </tr> <tr> <td>C - Max. Lifting Height</td> <td>71.5” (1,889 mm)</td> </tr> <tr> <td>D - Overall Depth</td> <td>48.75” (1,238 mm)</td> </tr> <tr> <td>E - Overall Width</td> <td>45” (1,143 mm)</td> </tr> <tr> <td>F - Chassis Length</td> <td>32.25” (819 mm)</td> </tr> <tr> <td>G - Min. Lifting Fork Width</td> <td>9.5” (241 mm)</td> </tr> <tr> <td>H - Max. Lifting Fork Width</td> <td>35” (889 mm)</td> </tr> <tr> <td>I - Lifting Fork Length</td> <td>11.5” (292 mm)</td> </tr> <tr> <td>Turning Circle</td> <td>40” (1,016 mm)</td> </tr> <tr> <td>Column Weight</td> <td>1,450 lbs. (657 kg)</td> </tr> <tr> <td>Lifting Speed</td> <td>85 sec</td> </tr> </table>

Warranty

<p><a href="https://www.bendpak.com/Portable-Column-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Instructions

<p><a href="https://www.bendpak.com/PCL-18B-Mobile-Column-Lift-Manual-5900170-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175291</b></i></a></p>
