BendPak PCL-18B - Mobile Lift System - 208-230/190V, 50/60HZ, 3-Ph - Set of 8 - 144,000 lb. Capacity 5175294
  • 90-Day Returns
  • Technical Support
BendPak PCL-18B - Mobile Lift System - 208-230/190V, 50/60HZ, 3-Ph - Set of 8 - 144,000 lb. Capacity 5175294

Description

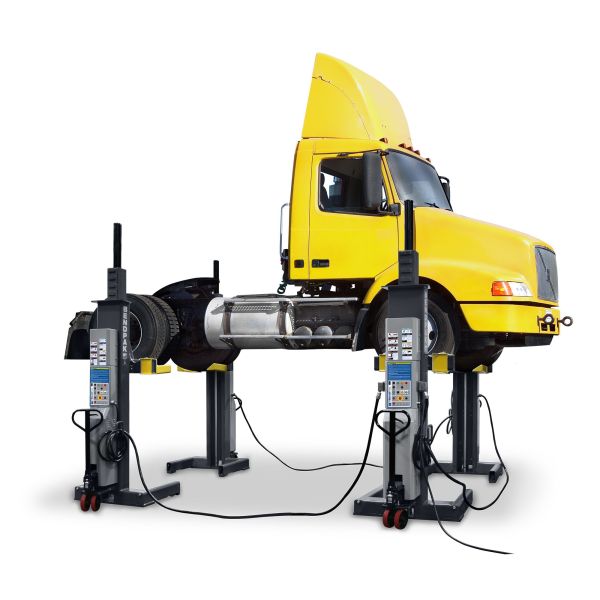

This PCL-18B mobile column lift package comes in a full set of 8. With 8 lifts, raise up to 144,000 lbs. of vehicle. With that much power in your shop, your lifting abilities are nearly infinite. Ideal for four-axle vehicles. Sets of 2, 4 and 6 are available.

Set of 8 Mobile Column Lifts

When you need to lift beyond what most shops even consider possible, put 8 mobile column lifts in your shop. The best part: you don't even have to use all 8 at once. Break them up into sets of 4, lifting multiple heavy-duty trucks up to 72,000 lbs. with each set. These mobile lifts make up BendPak's most powerful lifting system to date. If you need to lift more than 40,000 lbs., which is the most our four-post lifts can handle, a heavy-duty set of mobile column lifts is your best bet.

Features:

  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • 208-240V, 3-phase main power system - optional voltages available upon request
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Intuitive controls allow the lift to be fully programmed and controlled from any column
  • Control systems feature 24-volt safety circuitry
  • The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls
  • Smart electronics feature self-diagnostics and self-calibration functions
  • Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
  • Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
  • Two-speed lowering option
  • Each column is equipped with a warning light and audible alarm for critical warning alerts
  • Emergency shut-off switches on each column quickly shut off power to the lift
  • Separate key lock enclosure on each column
  • An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas
  • Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle
  • Low-mounted power units and cylinders means a lower center of gravity
  • Extended forks accommodate wide tires and deep wheel configurations
  • Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
  • Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
  • Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
  • Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
  • Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another
  • Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss

Specifications

<table class=''specs''> <tr> <td>Lifting Capacity</td> <td>18,000 lbs. (8,165 kg)</td> </tr> <tr> <td>A - Overall Height (RAISED)</td> <td>101” (2,565 mm)</td> </tr> <tr> <td>B - Overall Height (LOWERED)</td> <td>146.5” (3,721 mm)</td> </tr> <tr> <td>C - Max. Lifting Height</td> <td>71.5” (1,889 mm)</td> </tr> <tr> <td>D - Overall Depth</td> <td>48.75” (1,238 mm)</td> </tr> <tr> <td>E - Overall Width</td> <td>45” (1,143 mm)</td> </tr> <tr> <td>F - Chassis Length</td> <td>32.25” (819 mm)</td> </tr> <tr> <td>G - Min. Lifting Fork Width</td> <td>9.5” (241 mm)</td> </tr> <tr> <td>H - Max. Lifting Fork Width</td> <td>35” (889 mm)</td> </tr> <tr> <td>I - Lifting Fork Length</td> <td>11.5” (292 mm)</td> </tr> <tr> <td>Turning Circle</td> <td>40” (1,016 mm)</td> </tr> <tr> <td>Column Weight</td> <td>1,450 lbs. (657 kg)</td> </tr> <tr> <td>Lifting Speed</td> <td>85 sec</td> </tr> </table>

Warranty

<p><a href="https://www.bendpak.com/Portable-Column-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Instructions

<p><a href="https://www.bendpak.com/PCL-18B-Mobile-Column-Lift-Manual-5900170-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175294</b></i></a></p>
