BendPak PCL-18B - Mobile Lift System 72000 lb. Capacity 5175296

Product Overview:

Description

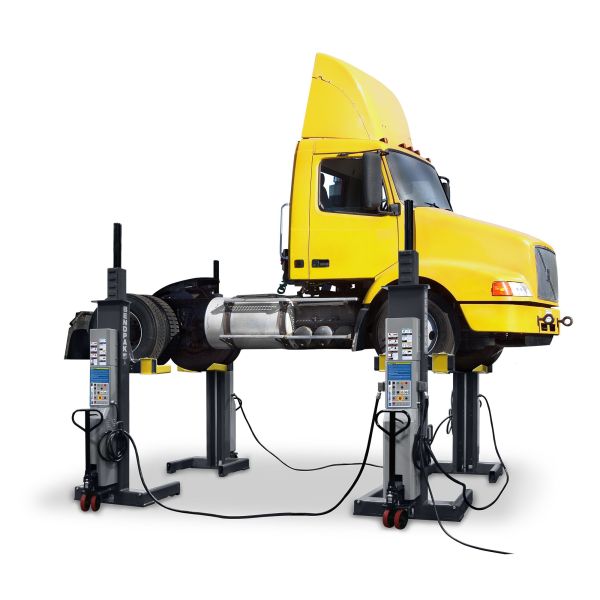

Set of 4 Mobile Column Lifts

When you need to lift beyond what most shops even consider possible, put 4 mobile column lifts in your shop. Each column has a maximum capacity of 18,000, thus making this system capable of lifting multiple heavy-duty trucks up to 72,000 lbs. If you need to lift more than 40,000 lbs., mobile column lifts are your best bet.

Features:

  • 18,000-lb. individual column capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2017
  • Just three 30’ cables are used leaving the front or back of the lift clear of cable obstructions
  • Intuitive controls allow the lift to be fully programmed and controlled from any column
  • Smart electronics feature self-diagnostics and selfcalibration functions
  • Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns through all cycles for precise, level lifting
  • Height settings can be programmed for low ceiling shops

Warranty

Warranty

Specifications

Lifting Capacity 18,000 lbs. (8,165 kg)
A - Overall Height (RAISED) 101” (2,565 mm)
B - Overall Height (LOWERED) 146.5” (3,721 mm)
C - Max. Lifting Height 71.5” (1,889 mm)
D - Overall Depth 48.75” (1,238 mm)
E - Overall Width 45” (1,143 mm)
F - Chassis Length 32.25” (819 mm)
G - Min. Lifting Fork Width 9.5” (241 mm)
H - Max. Lifting Fork Width 35” (889 mm)
I - Lifting Fork Length 11.5” (292 mm)
Turning Circle 40” (1,016 mm)
Column Weight 1,450 lbs. (657 kg)
Lifting Speed 85 sec

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/PCL-18B-Mobile-Column-Lift-Manual-5900170-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175296</b></i></a></p>
