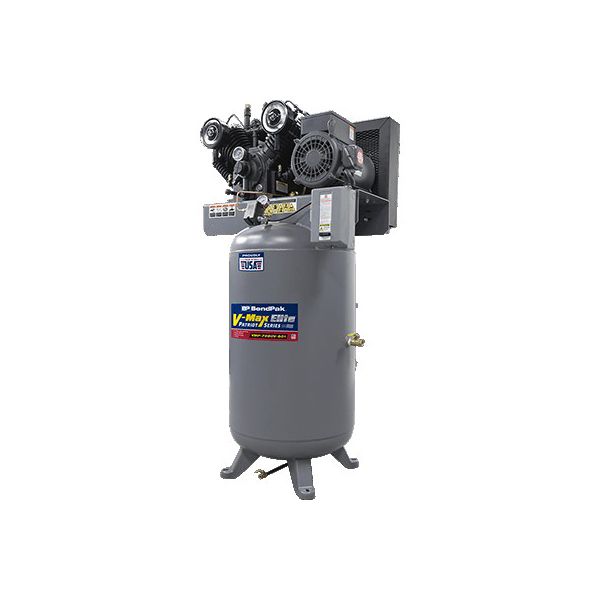

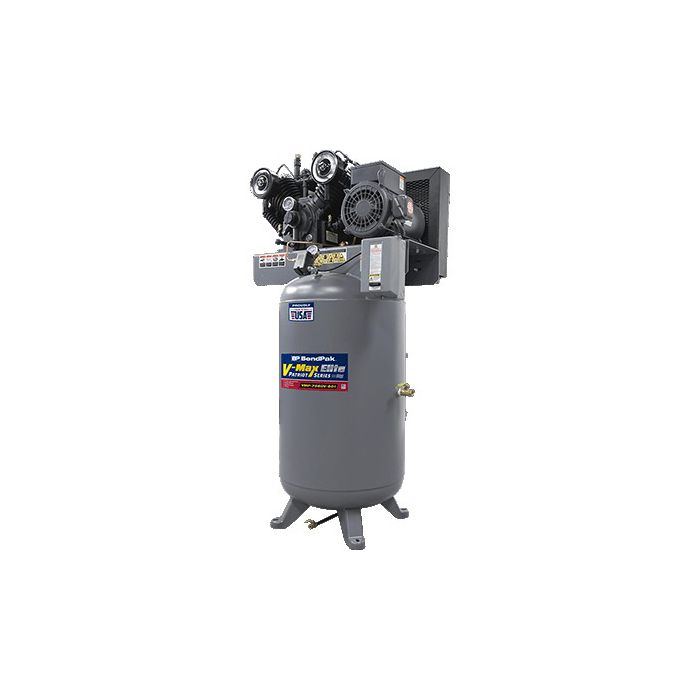

BendPak V-Max Elite Air Compressor 10 HP 120-Gal. Vert. Tank VMP-10120V-603 5179114
V-Max Patriot Air Compressor 10 HP, 3 Ph 120-Gallon Vertical Tank
V-Max Patriot Air Compressor 10 HP, 3 Ph 120-Gallon Vertical Tank
V-Max Patriot Air Compressor 10 HP, 3 Ph 120-Gallon Vertical Tank
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description
Built for High Productivity and Lower Operating Costs
The TSP-5 is one of BendPak’s most popular air compressor models. High-quality, slow running cast iron compressor pumps deliver proven longevity in the demanding conditions. Because they run at a slower RPM than most comparable units, they’re quieter, run cooler and cost less to operate. 100% cast iron pumps provide the quality and performance needed for heavy-use applications like automotive and body repair to manufacturing and industrial service.
Features:
- Made in USA
- 5 HP energy-efficient motor
- ASME, CSA, UL certified
- Pressure switch ensures efficient operation at all times with no wasted energy
- Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed-in sleeves
- Simple splash lubrication for total reliability and a finned cylinder configuration that provides 360° cooling
- Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
- Oversized ductile iron crankshaft provides extra strength and longer wear
- Tapered roller main bearings provide full contact and support of the crankshaft and needle-type piston pin bearings properly distribute bearing loads
- Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
- Magnetic starter provides thermal overload protection and minimizes start loads providing long life
- ASME-rated safety valve protects the compressor from overpressure and safeguards the operator
- Balanced flywheel and counterbalanced crankshaft provides vibration-ree operation
- Readily accessible disc-valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
- Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance
- High-density, die-cast aluminum alloy rods minimize reciprocating weight
Specifications
Motor | |
Horsepower: | 10 HP |
RPM: | 1,750 RPM |
Voltage: | 208-230 Volt AC |
Phase: | 3-Phase |
Hertz: | 60 Hz |
Magnetic Starter: | Yes |
Amp Draw: | 24 |
Recommended Breaker: | 40 Amp Breaker |
Noise: | 78 dB |
Pump | |
Style: | Two-Stage / V-4 |
Pump RPM: | 800 RPM |
Material: | Solid Cast Iron |
Duty Cycle: | Continuous |
CFM: | 34 CFM |
CFM Rated @: | 175 PSI |
Max PSI: | 175 PSI |
Oil Sight Glass: | Yes |
Pump Type: | Two-Stage |
Pump Drive: | Belt Drive |
Oil Type: | Oil Lubricated |
Oil System: | Full Pressure Lubrication |
Tank | |
Orientation: | Vertical |
Size: | 120 gallon |
Outlet: | 1" Fitting |
Electronic Drain Valve: | Yes |
Certification: | UL, CSA, ASME |
Dimensions | |
Width: | 51" (610 mm) |
Depth: | 51" (1,829 mm) |
Height: | 90" (864 mm) |
