Item # 59114 BRAND: Blue Demon

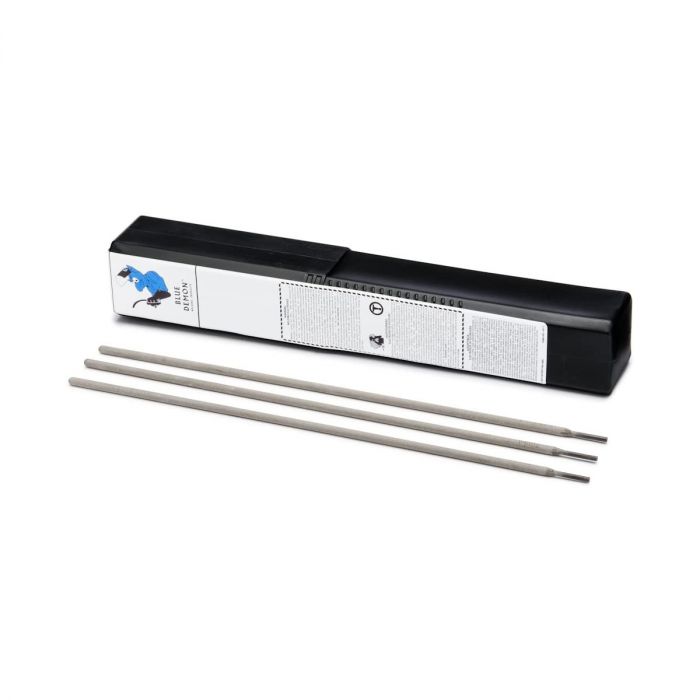

Blue Demon E6013 Carbon Steel Electrode 5/64in x 14in x 5 lb E6013-564-05P

E6013 X 5/64in X 14in X 5 Lb Pack General Purpose Carbon Steel Electrode
E6013 X 5/64in X 14in X 5 Lb Pack General Purpose Carbon Steel Electrode
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 100.76ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$28.99
Loading...
Save for Later
E6013 X 5/64in X 14in X 5 Lb Pack General Purpose Carbon Steel Electrode

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Blue Demon E6013 Carbon Steel Electrode 5/64in x 14in x 5 lb E6013-564-05P

Product Overview:

Description

E6013 is a mild-steel, all position, general purpose cellulose-base rod. It operates on AC or DC welding current and works well on low voltage AC machines. E6013 is an excellent choice where there is poor fit-up in the joint. It deposits easily and smoothly producing medium to shallow penetration. Small sizes are well adapted to low heat and thin metals. Medium to heavy slag is easily removed and provides for excellent weld cleaning action during the welding process.

Typical Applications: general purpose fabrication, metal buildings and structures, machine parts, shaft buildup

Specifications

AWS Class: E6013
Alloy: E6013
Welding Position: F, V, OH, H
Certification: AWS A5.1/A5.1M:2004
ASME: SFA A5.1
Current: DC, AC, DCEP, DCEN
Tensile Strength, kpsi: 60 min
Yield Strength, kpsi: 48 min
Elongation in 2" (%): 17 min

Typical Wire Chemistry as per AWS A5.1 (single values are maximum)

C Mn Si P S Ni Cr Mo V Combined Limit for Mn+Ni+Cr+Mo+V
0.2 1.2 1 *NS *NS 0.3 0.2 0.3 0.08 *NS

*Not Specified


Typical Welding Parameters
Diameter Process Volt Amps (V/OH)
in (mm)
3/32 (2.4) SMAW 19-24 40-80
1/8 (3.2) SMAW 18-23 70-120
5/32 (4.0) SMAW 20-24 130-160
3/16 (4.8) SMAW 20-23 140-220

In the Box

Contents

  • 1 Disposible tip with tube
  • 1 Bedliner spray gun
