Item # 59319 BRAND: Chicago Pneumatic

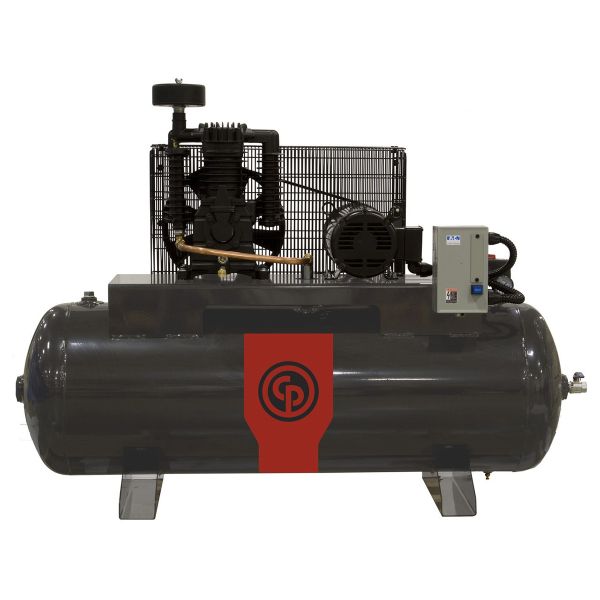

Chicago Pneumatic 7.5 HP 80 Gallon Air Compressor RCP-7583H4

7.5 HP 460 Volt Three Phase Two Stage 80 Gallon Horizontal Full Featured Air Compressor
7.5 HP 460 Volt Three Phase Two Stage 80 Gallon Horizontal Full Featured Air Compressor
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 111.85ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$3,735.99
Loading...
Loading...
Save for Later
7.5 HP 460 Volt Three Phase Two Stage 80 Gallon Horizontal Full Featured Air Compressor

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Chicago Pneumatic 7.5 HP 80 Gallon Air Compressor RCP-7583H4

Product Overview:

Description

This Chicago Pneumatic full featured 7.5 HP air compressor is perfect for automotive or small body shops.

  • 7.5HP, Premium 460 Volt Three Phase
  • Two Stage
  • Solid Cast Iron Cylinder
  • 80 Gallon Horizontal Tank
  • 25.3 CFM @ 100 psi
  • 175 psi Max
  • 2 Year Full Warranty covers everything, including valves. No Fine Print

Specifications

Motor
Voltage: 460 Volt AC
Phase: 3-Phase
Magnetic Starter: Yes
Amp Draw: Consult Certified Electrician
Recommended Breaker: 40 Amp Breaker
Engine
HP: 7.5
Pump
CFM: 25.3
CFM Rated @: 100 PSI
Pump Material: Aluminum w/ Cast Iron Sleeve
Max PSI: 175 PSI
Oil Sight Glass: Yes
Pump Type: Two-Stage
After Cooler: Yes
Pump Drive: Belt Drive
Oil Type: Oil Lubricated
Oil System: Splash Lubricated
Pump Low Oil Shut-off: Yes
Tank
Tank Size: 80 Gallons
Tank Outlet: 3/4 Inch
Electronic Drain Valve: Yes
Tank Orientation: Horizontal
Overview
Weight: 491 Pounds
Certification: ASME/CRN
Product Length: 71 Inches
Product Width: 24 Inches
Product Height: 49 Inches
Power Type: Electric

In the Box

Guides & Accessories

Instructions

Brochure

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 19.48ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 133.33ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Chicago Pneumatic 7.5 HP 80 Gallon Air Compressor RCP-7583H4
$3,735.99
In Stock
