Eastwood 12 Ton Shop Press
- High Quality Steel Construction
- Pro Quality 12 Ton Hydraulic System
- Meets ASME 2014 Standards
- Use for Many Medium and Heavy Duty Applications
- High Quality Steel Construction
- Pro Quality 12 Ton Hydraulic System
- Meets ASME 2014 Standards
- Use for Many Medium and Heavy Duty Applications
- High Quality Steel Construction
- Pro Quality 12 Ton Hydraulic System
- Meets ASME 2014 Standards
- Use for Many Medium and Heavy Duty Applications
1 year Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Price for all checked items:
Product Overview:
Description

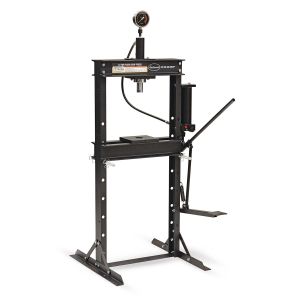

The Eastwood 12 Ton Hydraulic Bench Press is excellent for many mechanical procedures requiring a strong linear pressing force for disassembly or assembly operations.
- High Quality Steel Construction
- Pro Quality 12 Ton Hydraulic System
- Meets ASME 2014 Standards
- Floor Standing Model that can be used for many medium and heavy duty applications
This Bench Press has a generous 7.1” Ram Stroke and adjustable 3” to 36” vertical working range can easily accommodate many ball joint, u-joint, bearing, bushing and gear pressing projects. The convenient Foot Pedal feature provides a choice of hands-free, foot actuated operation or the standard, hand operation pump function.
This Eastwood 12 Ton Shop Press ships in two boxes. Both boxes will be shown in your shopping cart and are needed to assemble a complete press.
Warranty
Specifications
| Hydraulic Pump Capacity: | 12 Tons (24,000 lbs.), [10,886 kg] maximum |
| Hydraulic Ram Stroke: | 7.1" [175 mm] |
| Vertical Working Range: | 3" to 36" [77-917mm] |
| Arbor Depth: | 4.33". [110mm] |
| Horizontal Working Capacity: | 20.25". [515mm] |
| Force Gauge units: | 0-18 U.S. Tons, 0-16 Metric Tons |
| Ram Size: | 40mm |
| Workpiece Plate Construction: | 20mm Steel, Black Powdercoat |
| Frame Construction: | 7mm Welded Steel, Black Powdercoat |
| Workpiece Support Pins Construction: | 18mm Steel, Zinc Plated |
| Hydraulic Pump: | Includes Foot Pedal and Handle |
In the Box
Contents
Box 1 Contents
(2) Main Frame Sides
(2) Upper Frame Beams
(2) Base Rails
(1) Lower Cross Member
(4) Angle Braces
(1) Foot Pedal
(1) Linkage Arm
(2) Table Support Pins
(1) Table
(1) Pump Handle
Box 2 Contents
(1) Hydraulic Pump Unit
(1) Upper Yoke Plate (thinner)
(1) Lower Yoke Plate (thicker with locating pins)
(1) Ram
(1) Force Gauge
(1) Nylon Seal
(4) Table Support Pin Clips
(1) Foot Pedal Spring
(1) Foot Pedal Pivot Shaft Assembly
(2) Spring Eyelet Assembly
(2) Linkage Clevis Pins
(2) Cotter Pins
(2) Arbor Plates
Hardware
This Eastwood 12 Ton Shop Press ships in two boxes. Both boxes will be shown in your shopping cart and are needed to assemble a complete press.
Guides & Accessories
Instructions
Click here for product instructions
Safety Information
Accessories
54445 Eastwood 12T/20T Hydraulic Pump w/Hose (54441/54442)
54448 Eastwood 12T Bed Frame Pin and Clip - Pair (54441)
54451 Eastwood 12T Shop Press Hardware Kit (54441)
