Item # 32559 BRAND: Eastwood

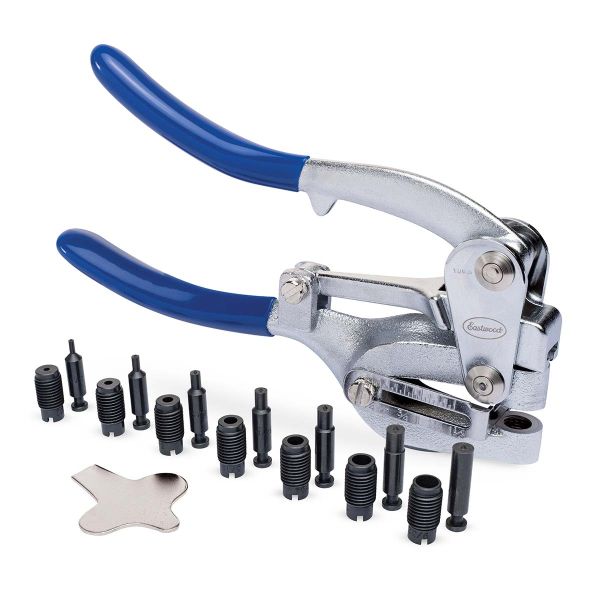

Eastwood 14 Gauge Metal Hand Punch

Name: Eastwood 14 Gauge Metal Hand Punch
SKU: 32559
Price: 49.99 USD
Availability: InStock

Quickly and accurately punch holes up to 9/32" in diameter. Quit Drilling!

Eastwood 14 Gauge Metal Hand Punch is rated 3.4 out of 5 by 7.

$49.99

Save for Later

Quickly and accurately punch holes up to 9/32" in diameter. Quit Drilling!

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

• 90 Day Returns
• Lifetime Tech Support

Eastwood 14 Gauge Metal Hand Punch

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview:

Description

The Eastwood 14 Ga Hand Punch is our take on a classic sheet metal tool every fabricator needs in his tool box. This punch makes quick work of spot weld and rivet holes and produces a clean burr- free hole. The 1.75" throat depth allows you get get into a deep flange an put a hole right where you need it.

1.75” [44mm] Throat Depth allows punching into the center of a 3.5” [88mm] work piece
Compound Leverage Action greatly amplifies punching power
1200 lbs of punching force

Warranty

1 Year

Specifications

1.75" Throat Depth
Max. Aluminum Thickness: 12 Ga
Max Steel Thickness: 14 Ga
Max Stainless Thickness: 16 Ga
Punching Force: 1200 lbs

Shipping & Handling

Ships via UPS

In the Box

Contents

(1) Eastwood 14 Gauge Metal Hand Punch

Guides & Accessories

Safety Information

Always wear ANSI rated safety glasses and gloves while using.

Application Tips

N/A

Reviews

Rated 5 out of 5 by Dave S from Well worth the money Great tool. Cost effective price. Crisp clean cuts. Easy to use
Date published: 2023-01-29

Rated 5 out of 5 by 54 Effie from 54 Ford Effie Project Works great for punching holes in sheet metal to do spot welding of panels
Date published: 2021-05-28

Rated 4 out of 5 by Azbaer from nice clean consistent hole Makes real nice clean holes. I used this to make holes for spot welds on a rear package tray, took some effort to get the holes punch, as i had to brace the bottom handle, the use upper body strength to get the holes punched. Swapping out dies is a real pain at first, but once you get figure it gets easier.
Date published: 2020-06-26

Rated 2 out of 5 by ct35 from Works good until it becomes increasingly difficult to punch holes It appears the hole punchers get dull quickly. I punched about 150-200 holes and now I have to really squeeze hard to get it to punch a hole.
Date published: 2021-09-30

Rated 2 out of 5 by Ryke from Hole punch Works well for standard steel. The dies don’t hold up well to 20 gauge stainless steel work for very long. It would be nice if I could just order extras of warn dies...
Date published: 2021-08-08

Rated 1 out of 5 by David P from Unusable. I found it nearly impossible to punch a hole in even 22 gauge metal. Returned. I'm going to stick with pneumatic versions instead.
Date published: 2023-01-26

y_2023, m_9, d_29, h_4

bvseo_bulk, prod_bvrr, vn_bulk_3.0.35

cp_1, bvpage1

co_hasreviews, tv_1, tr_6

loc_en_US, sid_32559, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]

clientName_eastwood

bvseo_sdk, p_sdk, 3.2.1

CLOUD, getReviews, 7.65ms

REVIEWS, PRODUCT

Questions & Answers

Has anyone tried using this for staple holes on inner fender dust shields, door panel window felt etc. ?

Asked by: Scott

I can tell you from experience a Mathew punch set excels at that application. Can also use to make gaskets. It can also be used to make concentric punches, so you can make round ‘o-ring’ gaskets.
Answered by: Eddie

Date published: 2023-06-29

Unlike your other hand hole punch. Can every hole punch die punch a hole in 14 gauge mild steel?

Asked by: Justin

9/32" on 14 ga. steel requires significant hand pressure, but it is possible. 1/4" and below get significantly easier.
Answered by: Nick BC

Date published: 2022-02-07

What are the sizes of the punch and die sets that come with it, please?

Asked by: Lefty

The sets included with this are: 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32".
Answered by: Kelly H

Date published: 2022-02-02

Are replacement dies available

Asked by: uturns

Please contact our Sales team for a parts request to be put in for this. They can be reached by calling 800-343-9353 or by emailing help@eastwood.com
Answered by: Kelly H

Date published: 2021-10-14

What is the largest punch/die size?

Asked by: Frank

The largest die is 9/32"
Answered by: ZachC

Date published: 2021-07-12

Looking at punching Kydex , maybe two layers, what is the jaw opening of this punch

Asked by: Tool_keeper

The Eastwood 14 Gauge Metal Hand Punch(32559) has a throat opening of 5/16th inch between the jaws and a depth of 1 3/4".
Answered by: vince

Date published: 2022-02-02

Can replacement dies be purchased for this tool?

Asked by: jzirk27

Please contact our Sales team at 800-343-9353.
Answered by: Kelly H

Date published: 2020-08-06

I'm making notebooks. Can it be used to cut through chipboard, card stock, or cardboard etc?

Asked by: Mrsjackson

Yes this can cut through those items but very thin carboard (close to paper thin) might not have as clean of a punch. Also a corrugated cardboard may also cut poorly. We've used it on 1/8" thick chipboard and it worked well.
Answered by: MattM

Date published: 2022-02-02
