Eastwood Screw Buster

SET UP AND CONNECTION

CAUTION: INJURY HAZARD! Disconnect air supply from Pneumatic Hammer to prevent accidental starting and potential injury while placing a tool bit in the bore.

• Insert selected bit into 5/16" (8mm) hex bore of tool.

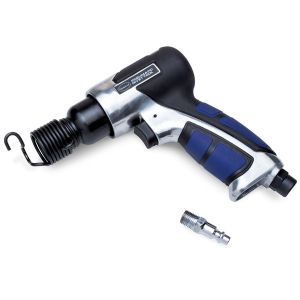

• Place the 0.401 Parker Taper Shank into bore and spring of Pneumatic Hammer.

OPERATION

• Place the desired tool bit into the fastener screw head and depress Pneumatic Hammer Trigger, while set to low pressure, to actuate hammering.
• While hammering, apply moderate pressure to the Pneumatic Hammer toward the fastener with one hand at the same time rotating the handle of the Screw Buster in a counter clockwise (loosening) direction with the opposite hand.
