Item #
62746
BRAND: Edwards

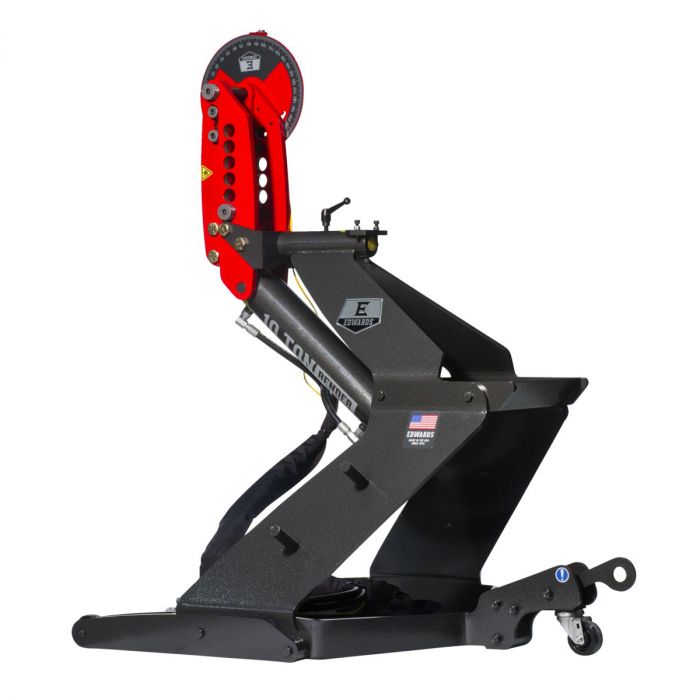

Edwards 10 Ton Tube/Pipe Bender HAT1000
10 Ton Bender
10 Ton Bender
10 Ton Bender
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
The Edwards 10 Ton Bender provides great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180 degrees, this Bender is a must-have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. Must be run off an Edwards Ironworker with PowerLink System or Portable Power Unit.
- Bend a wide variety of round or square tube and pipe up to 180 degrees
- Horizontal or Vertical operation provides the user flexibility
- Over 300 standard dies available to handle your bending needs
- Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate
Specifications
| Bend Capacity: | 180° |
| Pipe Capacity: | 2" (ID) Schedule 40 |
| Tube Capacity: | 2-1/2" (OD) .095" |
| Square Tube Capacity: | 2" (OD) .25" |
| Chromoly Capacity: | 2-1/4" (OD) .083" |
| Cylinder: | 1-3/4" Ram |
| Stroke: | 14" |
| Standard Motor: | 5 HP 3~ 208 V or 230 V 1725 RPM 14 A |
| Optional Motors: | 5 HP 3~ 460 V 1725 RPM 7 A 5 HP 3~ 575 V 1725 RPM 6 A 5 HP 1~ 208 V or 230 V 1725 RPM 23 A |
| Hydraulic Pump: | 3-1/2 GPM - 1 Stage |
| Valve Pressure: | 2750 PSI |
| Reservoir: | 7 Gallons |
| Height: | 40-1/2" |
| Width: | 36-1/2" |
| Depth: | 42" |
| Shipping Weight: | 600 lb |
In the Box
Guides & Accessories
Reviews
Questions & Answers
Edwards 10 Ton Tube/Pipe Bender HAT1000
$4,379.00
In Stock
