Gedore Torque wrench 3/4 110-550Nm l.955mm 3301220

Product Overview:

Description

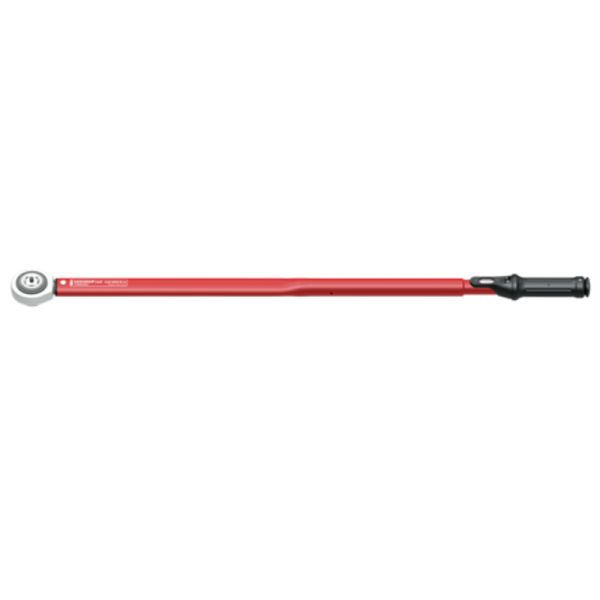

GEDORE red R78900550 torque wrench 3/4 110-550 N m 955 mm, 3301220

  • Adjustable torque wrench with square drive and integrated ratchet function
  • Controlled screw tightening from 110 to 550 Nm
  • Repetition-accurate and precision-like
  • Audible Torque triggering can clearly be heard and felt
  • Clockwise and anti-clockwise tightening from switching over the mushroom head/push-through square
  • Features:
  • Adjustable torque wrench with square drive and integrated ratchet function
  • Square drive with ratchet mechanism
  • Torque is set by turning the handle
  • The set value is fixed through the lock at the end of the handle
  • Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting
  • Tripping accuracy: +/-3 % tolerance of the set scale value

Specifications

  • Total width [mm]: 69 mm
  • Total height [mm]: 52 mm
  • Total length [mm]: 960 mm
  • Nominal width [mm]: 69 mm
  • Nominal height [mm]: 52 mm
  • Nominal length [mm]: 960 mm
  • Net weight [kg]: 4,184 kg
  • Distance housing - square drive: 34,5 mm
  • Drive type/drive: Push-through square with pin
  • Drive connector square [metric]: 20 mm
  • Drive square inch: 3/4 in.
  • Number of teeth: 36
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.) [Nm]: 550 Nm
  • Torque (min.) [Nm]: 110 Nm
  • Range of application: Assembly Maintenance and repair
  • Fixed setting: No
  • Calibration length: 853,7 mm
  • Width of head 1 [mm]: 69,0 mm
  • Head height 1 [mm]: 38 mm
  • vernier Nm: 1 Nm
  • Precision +/-: +/- 3 %
  • Test certificate: DIN EN ISO 6789-2:2017
  • Return angle: 10 °
