Grizzly 20in x 26in 5 HP Mitering Industrial Metal-Cutting Bandsaw G0887

Product Overview:

Description

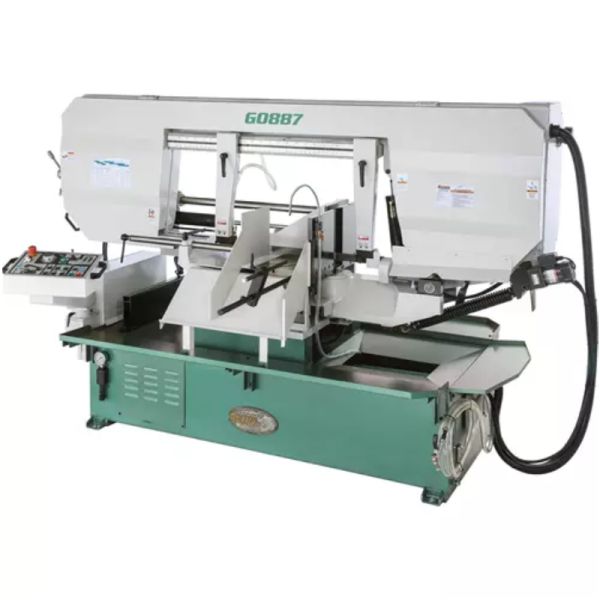

G0887 20 in. x 26 in. 5 HP Mitering Industrial Metal-Cutting Bandsaw

A dual-mitering metal-cutting bandsaw for all-day use in production shops and industrial facilities.

The G0887 Metal-Cutting Bandsaw minimizes material size constraints with its massive 20 in. x 26 in. cutting capacity.

This fully hydraulic operated bandsaw features a powerful 5 HP, 3-phase motor with variable-speed adjustment from 106–315 FPM.

The G0887 truly is industrial-duty with its 232 in. blade and the ability to cut miters from -60° to +60°.

The sliding vise and hydraulically-controlled angle adjustment features allow you to load the largest of material and make cuts without the need of rotating or removing the workpiece from the machine.

The blade tension gauge, 10-gallon coolant system, and a programmable height stop are just some of the outstanding convenience features of this saw.

The G0887 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw.

Parts for the bandsaw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. Made in an ISO 9001 factory

FEATURES:

  • Dual swivel cutting miters up to 60°
  • One-piece stand with swivel control box for convenient operation
  • High-efficiency gear drive system provides quick speed changes
  • Hydraulic cylinder and buffer spring enhance cutting stability
  • Electric shut off system and alarm for the ultimate in safety
  • Cleaning hose and nozzle and easy access chip tray for smooth clean ups
  • Self-propelled blade brush extends life of blade
  • 1-year limited warranty

Specifications

  • Main Motor: 5HP, 220V, 3-phase, 15.2A
  • Hydraulic Pump Motor: 2 HP, 220V, 3-phase, 5.7A
  • Table motor: 1 HP, 220V, 3-phase, 3.3A
  • Coolant Pump: 1/8 HP, 220V, 3-phase, 0.3A
  • Blade brush motor: 60W, 220V, 3-phase, 0.4A
  • Blade size: 232 in. x 1-5/8 in.
  • Blade speed: 106–315 FPM
  • Cutting capacities:
    • 90° Round: 20 in.
    • 90° Rectangular: 20 in. x 25-7/8 in.
    • ±45° Round: Round: 20 in.
    • ±45° Round: Rectangular: 20 in. x 20 in.
    • ±60° Round: 14-7/8 in.
    • ±60° Rectangular 14 in. x 14 in.
  • Overall dimensions: 119 in. W x 63 in. D x 70 in. H
  • Approximate shipping weight: 3960 lbs.
