Item # 21144 BRAND: Holley

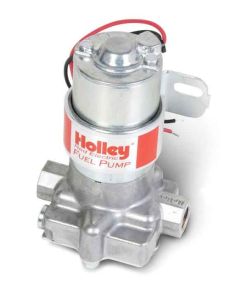

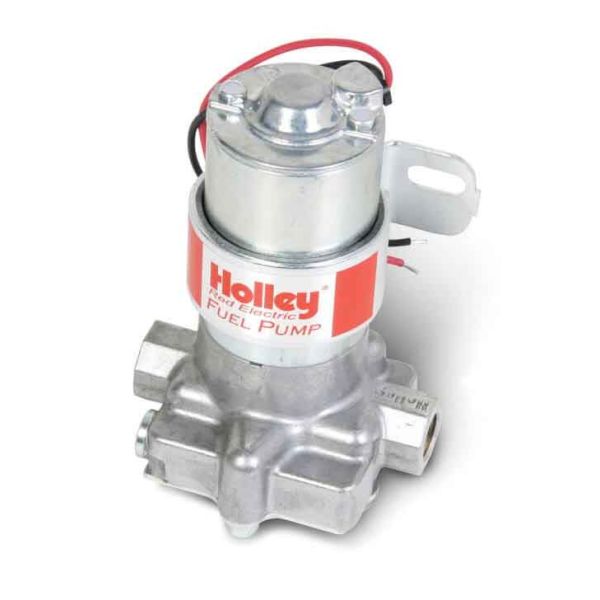

Holley 97 GPH Red Electric Fuel Pump 12-801-1

Street/Strip Carbureted Applications Street/Strip Carbureted Applications Compatible with Gasoline Only
Street/Strip Carbureted Applications Street/Strip Carbureted Applications Compatible with Gasoline Only
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 81.61ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$144.95
Loading...
Out Of Stock. Due back December 15
Save for Later
Street/Strip Carbureted Applications Street/Strip Carbureted Applications Compatible with Gasoline Only
  • 90-Day Returns
  • Technical Support
Holley 97 GPH Red Electric Fuel Pump 12-801-1

Description

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.

Features:

  • Tumble polished billet look
  • Lower housing casting designed for enhanced fuel flow
  • Maximum pressure is 7 psi
  • Motor draws 2 amps current
  • Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
  • Constant fuel flow with no pulsation
  • Improved design for street/strip applications
  • Not designed to be used on aircraft of any type.
  • Distinctive “Red” logo
  • Flows 97 GPH (free flow)
  • Flows 71 GPH at 4 psi
  • regulator is not required
  • Has externally accessible pressure relief valve (max 7 psi)
  • Rotor/vane pump design is more tolerant of contaminated fuels
  • Weighs only 2.88 lbs
  • Not designed or recommended for use with fuel injection systems
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • Not compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended

Specifications

Application: Universal
Bracket Color: Silver
Brand: Holley
Emission Code: 5
Free Flow GPH: 97
Free Flow LPH: 367
Fuel System: Carbureted
Fuel Type: Gasoline
Inlet Size: 3/8 inch NPT
Material: Aluminum
Motor Finish: Silver
Outlet Size: 3/8 inch NPT
Product Type: Fuel Pump
Pump Body Color: Silver
Part Number: 12-801-1
EMMISIONS

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.


The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:


Shipping

Ships Via Fedex

Aerosol Details

N/A

Consumables

N/A

Instructions

Instructions for Part# 12-801-1

Fuel Pumps Technical Information

Fuel Systems Selection Chart


*** Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.
