Product Overview:

Description

Dramatically simplify turbo manifold design and fabrication with these turbo manifold modeling blocks from Icengineworks! The 1500NP Kit works similarly to the header blocks by simply snapping together, with the ability to rotate to create the exact radius necessary for your compact turbo manifold design. Blocks come in a variety of centerline radii and degrees to replicate common stainless cast pipe elbows. Each block features index points to aid in block rotation and obtaining the perfect radius for your custom manifold. Once a design is made, metal parts can be cut and welded to replicate your model.

  • Design and layout turbo manifolds quickly and easily
  • Blocks simply snap together
  • A variety of blocks are included to match cast pipe elbows
  • For use with 1-1/2 inch pipe (1.900 inch OD)

In the Box

Contents

  • (60) 1 inch Straight blocks
  • (60) 1/2 inch straight blocks
  • (60) 1-1/2 inch CLR x 1 inch long radius blocks
  • (60) 1-1/2 inch CLR x 30 deg radius blocks
  • (60) 2-1/4 inch CLR x 1 inch long radius blocks
  • (60) 2-1/4 inch CLR x 30 deg radius blocks
  • (60) 2-1/4 inch CLR x 15 deg radius blocks

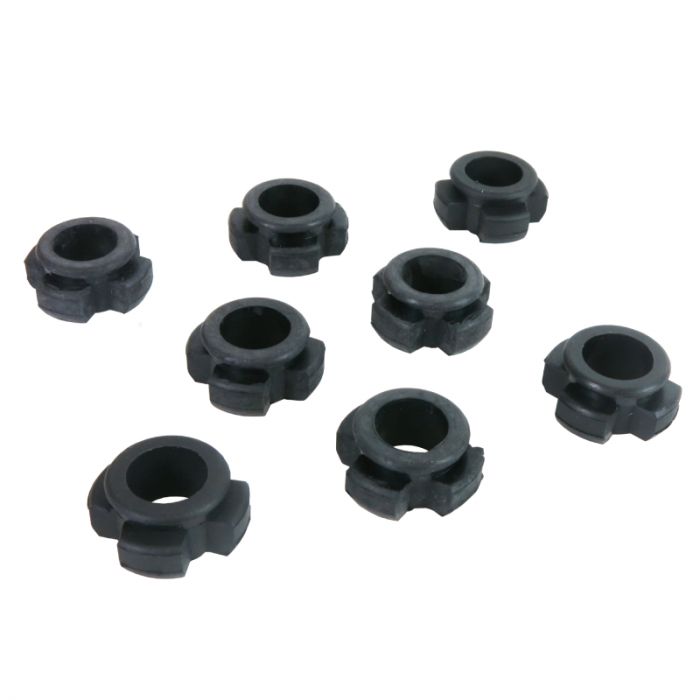

  • 8 block adapters
  • Manual
  • Control sheet pad
  • Plastic case
