Twin Wire Feeder, S-type

Twin wire feeder to use with single wobble laser welders (S-head). A twin wire feeder takes two spools or reels of wire, and has two main advantages:

1. Two wires can be fed into the weld fillet, allowing gaps to be filled, and/or a larger weld fillet, if both reels are the same.
2. Two different spools or filler material can be loaded, then you can select the material without changing spools.

Wire feeders are mostly important for filling gaps or adding bulk to the weld. However the also allow semi-automation of welding as the wire feed speed pushes the gun along. With minimal practice you only need to guide the gun, resulting in a perfectly consistent weld with the best possible visual quality.

This wire feeder accepts standard MIG wire spools up to 12 in. diameter if they have a 2 in. bore.

Rollers are included for wire sizes 0.8, 1.0, 1.2 and 1.6mm (in inches, approximately .030, .035, .045 and .062)

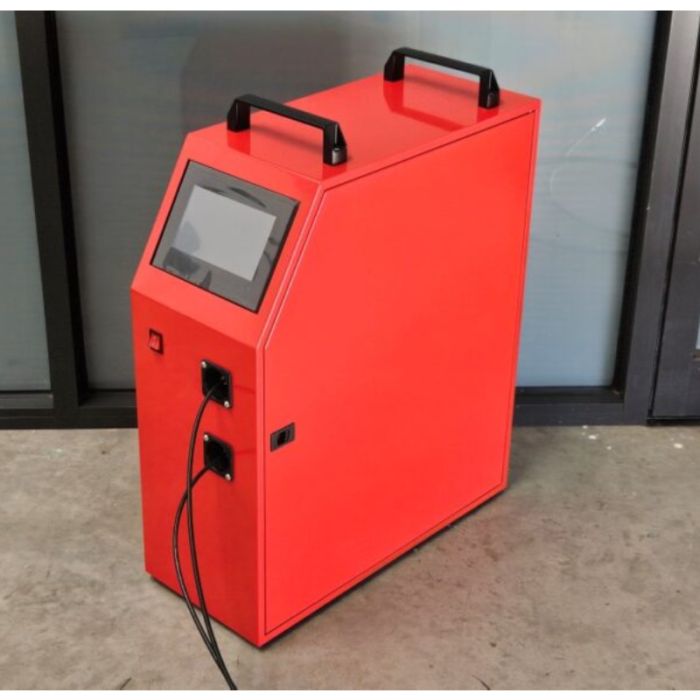

This S-head feeder has a colored touchscreen with two cable inputs, one for control and one power cable with a mains plug.
