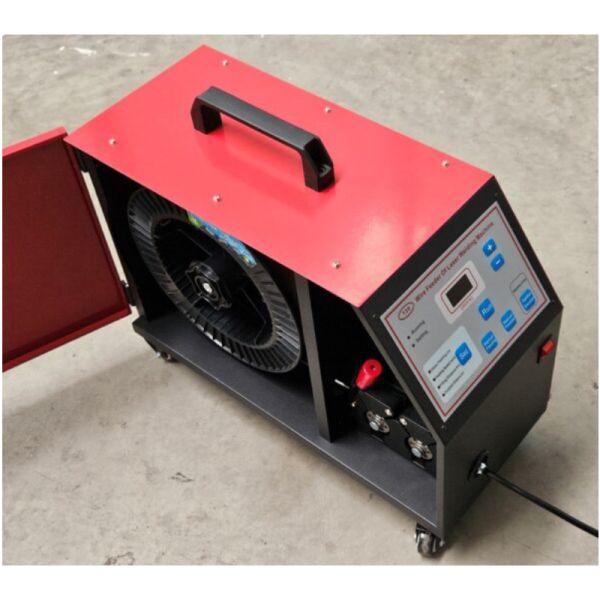

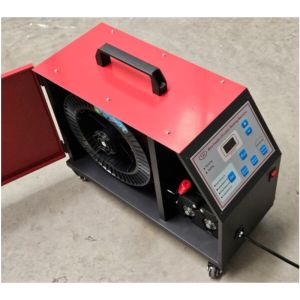

Wire Feeder, single reel

Wire feeder for double wobble head (Q-head) as used on G5-1500WC and most G5-2000WC laser welders.

You should buy one at least, but customers who will be swapping wires frequently often buy more than one, to save time. This is our single wire feeder. (If a twin wire feeder is required, check our other listings or ask us)

Wire feeders are a valuable accessory for a laser welder, as they allow filler to be added to fill gaps or add bulk to the weld. However the also allow semi-automation of welding as the wire feed speed pushes the gun along. With minimal practice you only need to guide the gun, resulting in a perfectly consistent weld with the best possible visual quality, as indicated in the image attached.

These take standard MIG reels up to 12 in. diameter with 2 in. bore in aluminum, stainless and steel.

Rollers are included for wire sizes 0.8, 1.0, 1.2 and 1.6mm (in inches, approximately .030, .035, .045 and .062)

Our Q-head feeder has push buttons with membrane switches and only one cable (24V umbilical).

NOTE: Not for G5-3000WC or welders with wide cleaning function (single wobble), as these welders use our S-head.
