Item # 63525 BRAND: Metal Ace

MetalAce Fully Assembled Heavy Duty Fabricated English Wheel 30 In. Throat MA30F

30F Classic Series English Wheel
30F Classic Series English Wheel
Homak 54” 1 Drawer RS Pro Hutch With Power Strip - Black BK02054010 is rated 5.0 out of 5 by 1.
  • y_2024, m_4, d_24, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_63525, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 34.41ms
  • REVIEWS, PRODUCT
$3,495.00
Loading...
Loading...
Save for Later
30F Classic Series English Wheel

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
MetalAce Fully Assembled Heavy Duty Fabricated English Wheel 30 In. Throat MA30F

Product Overview:

Description

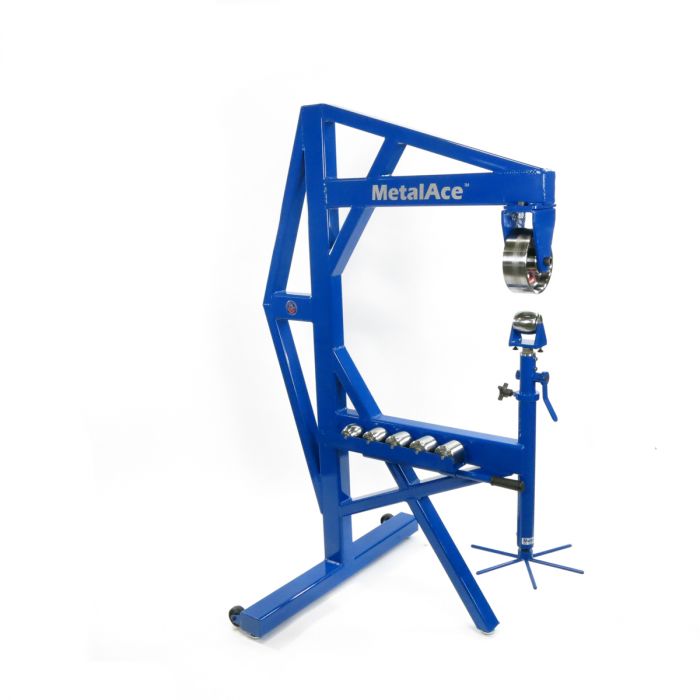

This brand new design from MetalAce is suited for heavy metal forming and yet is small enough to fit in small shop environments. The 3-leg design includes rubber feet for a stable grip on all floors, but the retractable handle and tip-back casters allow it to move around easily. This on-the-go metal forming machine is perfect for racing needs, auto restoration, sculpture creation, hot-rod building and vintage aircraft restoration. Collision repair professionals will find it useful for smoothing a wrinkled quarter or rocker panel.

Features include a removable lower 3 inch yoke, allowing for use with the included 3 inch wide anvil set or the optional 2 inch yoke and variety of specialty anvil wheels. A handy anvil storage rack keeps lower wheels close at hand and allows for quick radius changes. The tested and true jack mechanism offers a quick-release anvil yoke with precision alignment adjusters. This gives you the ability to quickly remove your work piece for inspection and easily repeat the pressure you were working at, even when changing radii. All MetalAce anvils are made from 4140HT material and feature industry standard flat spots for ideal wheeling. Proudly made in the USA using heavy wall gusseted tubular construction and powder-coated for maximum capacity and extra durability.

  • Screw lift assembly has quick-release cam mechanism
  • Includes 6 anvil wheels made from 4140HT
  • 30 inch throat depth
  • Heavy Duty 12 gauge capacity
  • 1 year manufacturer's warranty

Specifications

Throat Height (inches): 30
Throat Depth (inches): 30
Steel Capacity: 12 gauge (2.6mm)
Aluminum Capacity (inches): .125 (3.2mm)
Work Height (inches): 48
Upper Wheel (inches): 8 x 3
Anvil Wheels (inches): 3 x 3
Weight (pounds): 340
Dimensions (LxWxH): 54 x 42x 70

In the Box

Contents

  • (6) 3 inch wide anvil wheels made from 4140HT: Flat, 2.5, 3.75, 6.0, 12.0, and 24.0 inch radii
  • 8 x 3 inch upper wheel

Guides & Accessories

Consumables

  • 63518 - Metal Ace 2" Wide lower anvils (6 standard sizes), yoke, and tray for use on 30F & 44F, blue powder coat MA2-Deluxe
  • 63494 - Metal Ace Upper Wheel Rubber Band MA3-Band
  • 63496 - Metal Ace Optional 2" Anvil Yoke for fabricated floor models, blue powder coat MA2-Yoke
  • 63493 - Metal Ace Optional 2" Anvil Tray for fabricated floor models, blue powder coat MA2-Tray
  • 63491 - Metal Ace Radius Check Gauge MARCG
  • 63516 - Metal Ace 1.00" Radius anvil for 22B MA2-1.00
  • 63515 - Metal Ace 1.00" Radius edging anvil for 22B MA2-1.00E
  • 63514 - Metal Ace 2.50" Radius anvil for 22B MA2-2.50
  • 63513 - Metal Ace 3.25" Radius anvil for 22B (Standard with the MA22B) MA2-3.25
  • 63512 - Metal Ace 5.00" Radius anvil for 22B MA2-5.00
  • 63511 - Metal Ace 5.00" Radius narrow anvil for 22B MA2-5.00N
  • 63510 - Metal Ace 5.00" Radius narrow offset anvil for 22B MA2-5.00NO
  • 63509 - Metal Ace 8.50" Radius anvil for 22B MA2-8.50
  • 63508 - Metal Ace Flat anvil for 22B MA2-Flat
  • 63507 - Metal Ace 2" Wide upper wheel for 22B MA2-Upper

Reviews

Rated 5 out of 5 by from MetalAce English Wheel Outstanding design and build quality. The framework design provides a very sturdy platform with no flexing. The rigid framework makes rolling much easier and more controllable than lighter weight, inexpensive English wheels. The welds and finish work seem very nice. No regrets on this purchase.
Date published: 2023-03-07
