  • Mini (#9) TIG Torch Metal plug
Mini (#9) TIG Torch Metal plug is rated 4.6 out of 5 by 5.
Rated 5 out of 5 by from Works great It's my first mini love it. Works well on muffler pipe up close to Vehicle
Date published: 2015-12-24
Rated 5 out of 5 by from grate welder i bought this num 9 tig tourch about 3 weeks ago and it is all i use and i do have a flex head 17 tig tourch but i love this num 9 the best and i have went all the way up to 150 amps with it and no prob what so ever i recomewnd evry one that tig welds to buy a num 9 minny tourch
Date published: 2015-04-26
Rated 5 out of 5 by from A must have!! If your welding sheet metal, this is the perfect tool for it. Wish I had purchased it months ago.
Date published: 2015-02-10
  • y_2018, m_4, d_22, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_US, sid_20167, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

Does this torch fit the Vulcan 220

Asked by: Uncle Fester
Since we do not test on other brand units all we can say is the thread pattern for the gas hose is 16mm X 1.5 thread.
Answered by: Scott C
Date published: 2018-04-09

Will this torch fit the tig ac dc 200 unit?

Asked by: Kevin19
Depending on what year your AC/DC is this will be a direct fit. The torch itself will fit to all of our TIG 200 units. The plug for the finger control is what has changed though the years. The finger control that comes on this torch fits on machines which were made between 10/2013 and roughly 7/2016 If you unit is newer than these dates you will simply need a 5 pin plug part number 21258. If your unit is older you can simply use the finger control on your current torch.
Answered by: Scott C
Date published: 2018-03-09

will this torch fit the older TIG 200 #14100, ??. what all is needed for it,???. Dave

Asked by: barracudadave67
The main gas/power hose will thread directly on to your 14100 DC TIG welder. All you will need to pick up is part number 21258 finger switch. This will allow you to use the finger control functionality of your welder with this torch.
Answered by: Scott C
Date published: 2018-03-08

Does this torch fit the new digital  200 AC/DC Welder?

Asked by: Jlwetzel
This will fit as long as you also grab part number 21258.
Answered by: S Church
Date published: 2017-05-16

what's overall length of cable ?

Asked by: kru llc
overall length is 13'
Answered by: KHoffnagle
Date published: 2017-01-05

Does Eastwood make an adjustable thumb controller for the ac dc tig 200 and who makes the welder itself?

Asked by: Merlin
Unfortunately we do not have a thumb controller for the unit. the unit was designed by our R&D team and is manufactured overseas
Answered by: SeanA
Date published: 2015-05-21

picture show's a finger control, but it is not in the description

Asked by: emelvin
Pictured is just a trigger. Not an amp control.
Answered by: SeanA
Date published: 2018-04-17
  • y_2018, m_4, d_22, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_7
  • loc_en_US, sid_20167, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

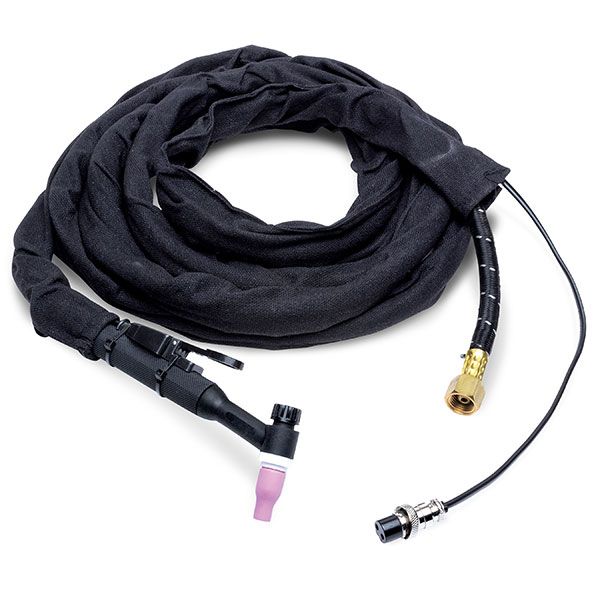

Mini (#9) TIG Torch Metal plug

Item #20167

deal for low amperage welding in tight spaces

In stock

Only $65.99



Details

This torch kit is ideal for low amperage welding in tight spaces where the standard TIG200 (#17) torch may have trouble fitting. Attach the torch the same way the standard torch connects to make getting into tight places much easier. The torch kit comes complete with a selection of consumable parts. This torch is rated for 125 Amps DC or 100 Amps AC. Do not exceed the rated amperage! For use on machines WITH A TWO PIN METAL Plug on the machine and torch lead.

More info...

About Mini (#9) TIG Torch Metal plug

This torch kit is ideal for low amperage welding in tight spaces where the standard TIG200 (#17) torch may have trouble fitting. Attach the torch the same way the standard torch connects to make getting into tight places much easier. The torch kit comes complete with a selection of consumable parts. This torch is rated for 125 Amps DC or 100 Amps AC. Do not exceed the rated amperage! For use on machines WITH A TWO PIN METAL Plug on the machine and torch lead.


Contents

TIG Torch (#9); Gas Nozzle, 4, 1/4 inch; Gas Nozzle, 5, 5/16 inch; Gas Nozzle, 6, 3/8 inch; Collet, 1/16 inch; Collet, 5/64 inch; Collet, 3/32 inch; Collet Body, 1/16inch; Collet Body, 3/32 inch; Short Back Cap; Medium Back Cap; Long Back Cap


Safety

Welding fumes and gasses can be hazardous to your health. Arc Rays can injure your eyes and burn your skin. Electric shock from welding can cause injury and possible death. Keep your head out of the fumes. Wear correct eye, ear, and body protection. Do not touch live electrical components. Do not exceed rated power of this torch (125 Amp DC or 100 Amp AC)


Warranty

1 Year Warranty. Imported.


Application

Fits the Eastwood TIG200. WITH TWO PIN METAL PLUG on machine and torch lead
