Item # 32321 BRAND: Painless

Painless Classic Customizable Chassis Harness - Key In Dash - 21 Circuits

Painless Classic Customizable Chassis Harness - Key In Dash - 10102
Painless Classic Customizable Chassis Harness - Key In Dash - 10102
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 23.19ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$259.99
Loading...
Loading...
Save for Later
Painless Classic Customizable Chassis Harness - Key In Dash - 10102

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Painless Classic Customizable Chassis Harness - Key In Dash - 21 Circuits

Product Overview:

Description

This Painless Performance 21 circuit chassis harness is our most widely used customizable automotive wiring harness.

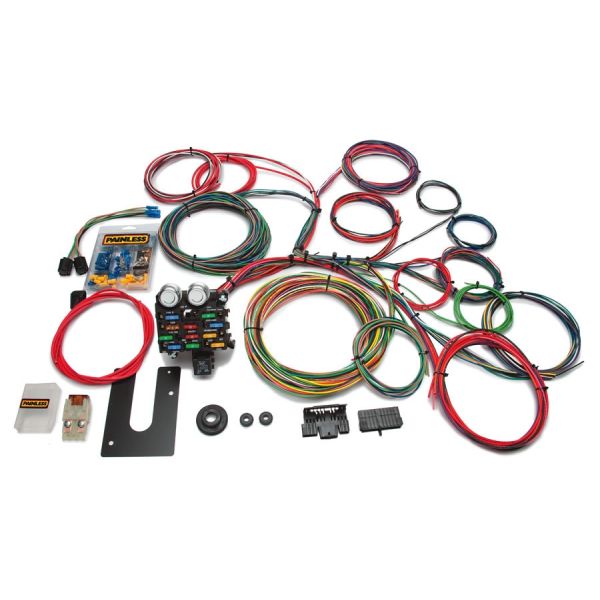

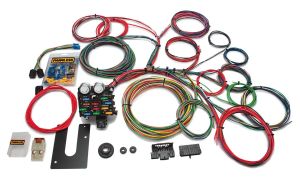

This universal kit is great for hot rod or street rod builds, but you'll find that it's easily adaptable to almost any vehicle and has enough length to handle full size and muscle cars. This harness comes with open ended ignition switch wires that can easily be adapted to any ignition switch out there. For those using a GM Keyed Column, part number 10101 comes with a Pre-Terminated GM ignition switch connector. Included with this harness are the following parts; a GM engineered fuse block & Painless mounting bracket; GM turn signal connectors; pre wired plugs for the headlights & dimmer switch; and each wire is printed with the circuit identification as well as using GM color codes for easy installation.

Wire your classic car once and wire it right with a Painless Customizable wiring harness.

Warranty

1 Year Manufacturers Warranty

Specifications

Number of Circuits: 21 Circuit - 12 Fuses w/ Horn Relay and Maxi Fuse
Harness Length: Universal
Fuse Type: Blade & Maxi Fuse
Firewall Pass through: Grommet
Color Code Based: GM
Circuit Designations: Printed on Wires

Application

Part Number: 10102
Year: Universal
Make: Universal
Model: Universal
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any

Connections Included:

GM Steering Column Turn Switch, Two Headlight Pigtails, 10SI & 12 SI Alternator, Dimmer Switch

This harness includes circuits for:

1. A/C & Heat
2. Accessory / Cigarette Lighter
3. Backup Lights
4. Brake Lights
5. Charging
6. Dome Light
7. Electric Choke
8. Emergency Flashers
9. Fan Relay Activation Power
10. Fused Power Source
11. Headlights
12. Horn (Relay)
13. Ignition Coil
14. Instrument Panel Lighting and Gauges*
15. Park Lights
16. Radio/Clock (Constant and Switched)
17. Starting
18. Tail Lights
19. Third Brake Light
20. Turn Signals
21. Wipers

* Including Wires For:

Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge

Shipping & Handling

Ships via UPS

In the Box

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

N/A

Aerosol Details

N/A

Application Tips

N/A

Consumables

N/A

Spare Parts

N/A

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.79ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Will this fit my 1984 Chevy K10 Suburban 5.7L V8 4x4? Also it is the complete wiring set, and doesn’t need anything more right?

Asked by: Edwin10
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 1.800.423.9696
Answered by: ZachC
Date published: 2021-08-06

Will it work on a 1990 chevy truck I out big block with aftermarket gauges and electric fans fuel pump

Asked by: Yoyo
The Painless Wiring Harness(32321) you reference is a key in dash harness and will not work with your 1990 Chevy truck.
Answered by: vince
Date published: 2021-01-03

Could this kit replace my 1976 FORD 350 ECONOLINE 351 5.8L WINDSOR RV FUSE BOX THAT FITS UNDER DRIVERS SIDE?

Asked by: Pete
This is a universal harness for key in-dash applications and could certainly be using the vehicle's original wiring harness. It is not designed specifically for RV applications and it may not have all the accessory circuits needed for an RV application. This harness includes circuits for: 1. A/C & Heat 2. Accessory / Cigarette Lighter 3. Backup Lights 4. Brake Lights 5. Charging 6. Dome Light 7. Electric Choke 8. Emergency Flashers 9. Fan Relay Activation Power 10. Fused Power Source 11. Headlights 12. Horn (Relay) 13. Ignition Coil 14. Instrument Panel Lighting and Gauges* 15. Park Lights 16. Radio/Clock (Constant and Switched) 17. Starting 18. Tail Lights 19. Third Brake Light 20. Turn Signals
Answered by: Kelly H
Date published: 2019-12-15

could this harness be adapted to a 1931 chrysler 6CM?

Asked by: bert
Yes this harness would work well for this application.
Answered by: Kelly H
Date published: 2019-09-27

Can you make me a custom  wire hardness for the motor, 4.0 Jeep Cherokee 93

Asked by: 1gil
Unfortunately, we do not make custom wiring harnesses to support this engine.
Answered by: ZachC
Date published: 2019-08-21

Will this come with each wire marked to were it gos so there is no guess work I hope.

Asked by: Zoeandzack1
The instructions for this item are listed right on our website and are extremely thorough: https://www.painlessperformance.com/Manuals/10102.pdf
Answered by: Kelly H
Date published: 2019-09-16
