Painless Direct Fit Camaro Harness (1970-1973) - 26 Circuits

Painless Direct Fit Camaro Harness (1970-1973) - 26 Circuits

Item #32349 Brand: Painless

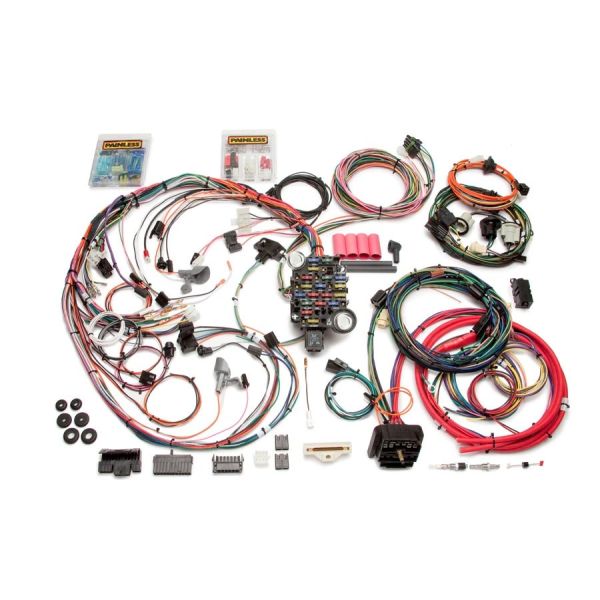

26 Circuit Direct Fit 1970-73 Camaro Harness - 20112
Quantity:
Quantity: close
Only $949.99

• This item ships directly from the manufacturer

• Expected delivery time is 1 – 2 weeks

• Not available in Eastwood Retail Stores

• Order may not be changed or canceled



< Back

Details

This 26 circuit direct fit 1970-1973 2nd Gen Camaro harnesses has virtually every connector installed on the harness out of the box. These harnesses are split into three sections (engine, interior, & rear) and features a fully integrated ground circuit. You'll find many upgrades in ths harnesses such as a 6 gauge charge wire and a 150 amp midi fuse. Also available is a 150+ page full color step by step manual that also covers many alternative wiring options and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.

NOTE: Factory A/C wiring is not included, as this option seemed to almost change year to year. These harnesses DO include the power wire for the A/C switch to make it as easy as plugging in your original A/C harness, an aftermarket reproduction harness, or an aftermarket A/C system. These harnesses DO include a new blower motor harness for those with heat only systems.

Wiring for factory power window/locks is also not included but available as a separate part number. Painless part # 30715 is a factory style power window/power lock harness for these vehicles if a replacement harness for this option is needed. Like the A/C wires, these chassis harnesses DO include the power wires for the power window/lock option making it another easy plug in to a factory power window/lock harness or the Painless Power Window/Lock Harness.


More info...
< Back

Contents

(1) 26 Circuit Direct Fit 1970-73 Camaro Harness


Specifications

Number of Circuits: 26
Fuse Type: ACT
Firewall Pass through: Bulkhead
Color Code Based: Factory GM

Application

Part Number: 20112
Year: 1970 - 1973
Make: Chevrolet
Model: Camaro
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any

Automotive wiring harness for:

• 1970 Chevrolet Camaro
• 1971 Chevrolet Camaro
• 1972 Chevrolet Camaro
• 1973 Chevrolet Camaro

This harness includes circuits for:

1. Accessory
2. Accessory / Cigarette Lighter
3. Backup Lights
4. Blower Motor
5. Brake Lights
6. Charging
7. Courtesy and Dome Light
8. Electric Choke
9. Electric Fuel Pump
10. Emergency Flashers
11.Fused Power Source
12. Glove Box Light
13. Headlights
14. Horn (Relay)
15. Ignition Coil
16. Instrument Panel Lighting and Gauges*
17. Park Lights
18. Power Door Locks
19. Power Windows
20. Radio/Clock (Constant and Switched)
21. Seat Belt Lights
22. Starting
23. Tail Lights and License Plate Light
24. Turn Signals
25. Under Hood Light
26. Wipers and Washer Pump

* Including Wires For:

Aftermarket Gauge Power
Brake Warning Light
Fuel Gauge
Gear Indicator Light
Key Buzzer
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter


Instructions

Click here for product instructions


Warranty

1 Year Manufacturers Warranty


Eastwood Offers Free Lifetime Technical Support


Click here for product SDS information


Attention California Residents - Proposition 65


Proposition 65 Warning WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
