Painless Direct Fit Mustang Chassis Harness (1969-1970) - 22 Circuits

Painless Direct Fit Mustang Chassis Harness (1969-1970) - 22 Circuits

Item #32354 Brand: Painless

22 Circuit Direct Fit 1969-70 Mustang Chassis Harness - 20122
Quantity:
Quantity: close
Only $847.99

• This item ships directly from the manufacturer

• Expected delivery time is 1 – 2 weeks

• Not available in Eastwood Retail Stores

• Order may not be changed or canceled



< Back

Details

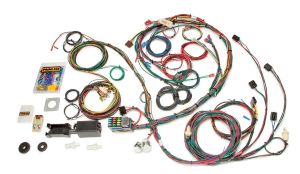

This 22 circuit direct fit 1969-1970 Ford Mustang wiring harness has many of the factory connectors already installed on the harness out of the box. This harness uses our unique covered micro-fuse block. Also featured is an auxiliary circuit with 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation. /p>


More info...
< Back

Contents

(1) 22 Circuit Direct Fit 1969-70 Mustang Chassis Harness


Specifications

Number of Circuits: 22 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay and Maxi Fuse
Harness Length: Factory Fitment
Fuse Type: Mini Blade & Maxi Fuse
Firewall Pass through: Grommet
Color Code Based: Factory Ford
Circuit Designations: Printed on Wires

Application

Part Number: 20122
Year: 1969 - 1970
Make: Ford
Model: Mustang
Engine: Carbureted or Any Stand Alone Fuel Injection
Trans.: Any

Complete Ford color-coded chassis wiring harness for:

• 1969 Ford Mustang
• 1970 Ford Mustang

This harness includes circuits for:

1. A/C & Heat
2. Accessory / Cigarette Lighter
3. Accessory Relay
4. Backup Lights
5. Brake Lights
6. Charging
7. Courtesy and Dome Lights
8. Electric Choke
9. Emergency Flashers
10. Fused Power Source
11. Glove Box Light
12. Headlights
13. Horn (Relay)
14. Ignition Coil
15. Instrument Panel Lighting and Gauges*
16. Park Lights
17. Radio/Clock (Constant and Switched)
18. Starting
19. Tail Lights and License Plate Light
20. Trunk Light
21.Turn Signals
22. Wipers and Washer Pump

* Including Wires For:

Aftermarket Tachometer
Ammeter
Brake Warning Light
Fuel Gauge
Gear Indicator Light
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter


Instructions

Click here for product instructions


Warranty

1 Year Manufacturers Warranty


Eastwood Offers Free Lifetime Technical Support


Click here for product SDS information


Attention California Residents - Proposition 65


Proposition 65 Warning WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
