Item # 33272 BRAND: Eastwood

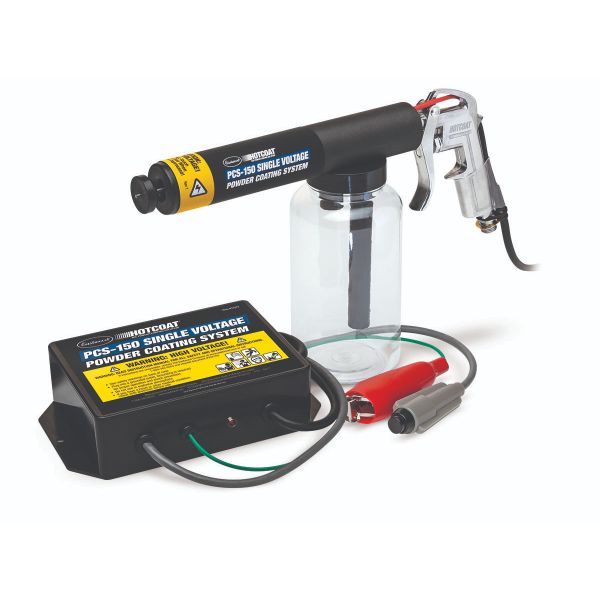

Eastwood PCS-150 Single Voltage Powder Coat Gun System

New & Improved PCS-150 DIY Powder Gun brings benefits of powder-coating to your home shop
New & Improved PCS-150 DIY Powder Gun brings benefits of powder-coating to your home shop
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 500.11ms
  • REVIEWS, PRODUCT
  • bvseo-msg: Error - Operation timed out after 500 milliseconds with 0 out of -1 bytes received; HTTP status code of 0 was returned;
$89.99
Loading...
Loading...
Save for Later
New & Improved PCS-150 DIY Powder Gun brings benefits of powder-coating to your home shop
  • 90-Day Returns
  • Technical Support
  • 1 year Warranty

Eastwood Service Plan

Eastwood PCS-150 Single Voltage Powder Coat Gun System

Description

The PCS-150 Single Voltage Powder Coating System brings the benefits of powder coating right to your home garage or shop.

  • Coat and cure in under an hour!
  • Easy to apply
  • Extremely durable finish
  • Quick color changes
  • 15,000-volt output
  • Economical
  • Minimal overspray
  • Color-Coded cables for easy setup
  • More trigger-room for additional comfort
  • Larger ground clamp
  • Clear bottle allows you to see powder color, level and fluidizing action
  • Larger internal passages for improved powder flow
  • Refined power supply for more consistent coverage and powder-build

This innovative, inexpensive powder-coat gun helps you do a professional-looking powder coating job right at home. All you need to add is compressed air (5-10psi), a dedicated electric oven and your favorite powder.

Why powder coat? Because it gives you one of the most economical, color-durable, and longest-lasting finishes available. You'll find powder-coated surfaces are far more resistant to chipping, scratches, fading, and wear than other finishes, and the color selection is virtually unlimited, with high and low gloss, metallic, and clear finishes available. And thanks to the UV resistance of many of the powders, colors stay bright and vibrant longer. Texture selections range from smooth surfaces to a wrinkled or matte finish, plus rough textures designed for hiding surface imperfections.

One 8-oz. bottle of powder (not included) covers the same area as 2-3 cans of spray paint, and clean-up is easy, since you can simply sweep-up the oversprayed powder. Contains no environmentally harmful solvents. HotCoat powder coating requires a 5-10psi compressed air source and dedicated electric oven (or toaster oven).

Specifications

15KV Single voltage output New and improved Ground Clamp provides a better Ground Color Coordinated cabling for easier setup New Clear bottle makes it easy to see powder level and fluidizing action. Additional 1/2" of trigger room makes it easier and more comfortable to use

Warranty

Contents

PCS-150 Single Voltage Powder Coating Gun with power source and instructions.

FAQs

Eastwood Powder Coating Videos - CLICK HERE


Q: How long does the baking process take?

A: For improved flow out (less "orange peel"), bake coated parts at 500 degrees F until powder flows out (about 3-4 minutes for light sheet metal parts), then turn down the heat to 400 degrees F for a full 15 minutes.

Q: What are the electrical requirements?

A: This HotCoat Gun requires 110-125VAC, 2 amps at 50-60 Hz. Can be used with a voltage transformer such as 220-240VAC to 110-125VAC as long as the transformer can handle 2 amps.

Shipping

Ships Via Fedex

Aerosol Details

N/A

Application Tips

Removable Tip With Charge Emitter

Safety Information

Use Disposable Dust Mask (22055) when handling or applying powder. Powder, like common flour, suspended in the air in high concentrations can be explosive. To minimize any explosion risk - sweep up, do not vacuum powder from the floor. Cure powder in a well ventilated area. The urethane powders we sell liberate a very minute amount of isocyanates when the powder flows out.This usually occurs about 3-5 minutes after the part is placed in the oven to bake. Wear a respirator, like our SAS Bandit Respirator (11455 or 11456), cartridges when curing or inspecting flow out progress.

Customer Reviews

Rated 4 out of 5 by from Good gun for the money This gun system seems well built and functions as I believe it should. I've done a couple projects with it with what I think are very good results. Being their entry level gun and single voltage, I will say that I had a couple instances where the Faraday Cage effect was too strong for this little gun to handle. Maybe the upgraded, dual voltage gun can do a little better, but this was something that I expected and, in the end, wasn't that big of a deal. If you want to get in to powder coating at a low price with a fairly good quality gun, I believe this is it!!
Date published: 2021-08-09
