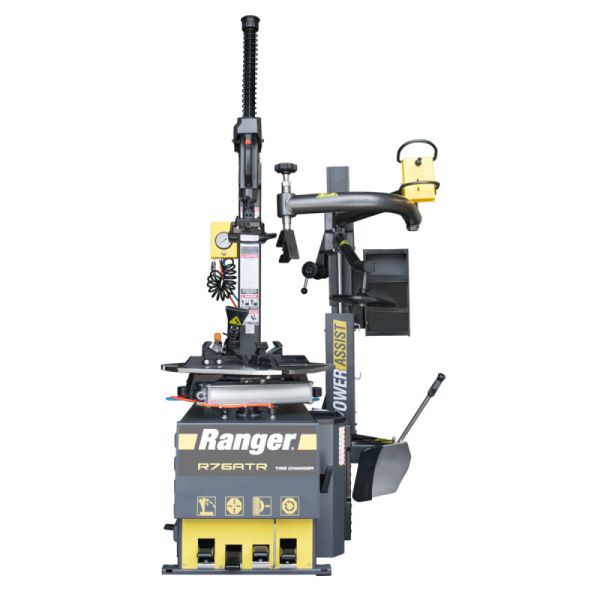

Tilt-Tower Tire Changer Design with Power Assist

When it comes to your tire repair business, Ranger's R76ATR has everything you need for safer, faster tire changes, even when working with tricky aluminum wheels. Extraordinarily easy-to-use, adjustable RimGuard™ clamps, and the tilt-back tower saves significant time when loading a new set of wheels—no more adjusting the duck head to match each wheel's diameter. The assist tower helps change low-profile and run-flats (anything with a stiff sidewall), and it holds the bead in the drop-center, protecting the tire. A centering cone further assists with external clamping, and a specialized saucer/roller combo offers yet another line of defense against stubborn beads. We also carry an "L" model available with a 110v 50/60 HZ configuration. The "L" model sports a 2 HP motor and requires a 20-amp breaker.

Our most specialized, versatile tire changer

Ergonomic controls are sensibly placed to minimize excessive reaching, walking or bending, resulting in more jobs per day and increased profits. Other time-saving features include a multi-profile traveling drop-center tool,top bead assist rollers, lower bead lifting disc and a nylon non-marring wheel restraint device. These important tire shop tools are designed to dramatically reduce effort, increase safety and help minimize operator fatigue. A large 30 in. capacity turntable features adjustable, hardened-steelRimGuard™ wheel clamps. These provide an internal clamping capacity of 8 in.- 26 in. and external clamping capacity of 10 in.- 30 in.

Electric turntable

A high-torque electric turntable drive features increased speed and reversible direction for quicker tire removal and installation. Controlled speed gives low profile and run-flat beads time to relax and reduces the risk of tire damage.

Adjustable RimGuard™ wheel clamps

Durable, adjustable RimGuard™ wheel clamps are made from hardened steel and accommodate wheels from 9 in. up to 30 in. and feature internal and external multi?teeth jaws with vertical mounting bolts that make replacement fast and simple.

Advanced clamp positioning

Versatile clamp positioning allows for improved control when clamping wheels. Position clamps exactly where you need them within the entire clamping range. No need for the clamps to cycle the full range.

Easier bead lubrication

A geometric tabletop makes bead lubrication easy. Operators are able to visibly inspect the lower bead during tire mounting and inflation.

Bead-breaker design

A completely new and proprietary bead-breaker design features bilateral pneumatic accelerators for lightning-fast bead-breaker speeds in both directions. A 100% stainless steel cylinder body means no more worrying about moisture contamination from corrosion. Other exclusive design features include a multi-axis, adjustable blade for multi-angle tire capacity, a large, dual-flange axle that eliminates blade flex and premature failure, and adjustable blade settings that help accommodate a larger variety of tire and wheel combinations.

Enhanced bead-breaker blade

Enhanced bead-breaker bladefeatures rugged box frame construction that increases the mechanical strength, as well as service life and overall performance. A large rubber bump-stop assures smooth return to help reduce shock loading and minimize wear on the pneumatic cylinder, guides and associated moving parts.

Balanced flywheel

A balanced flywheel reduces vibrations during operation, as well as stress on the machine as a whole. In essence, well-balanced flywheels keep our tire changers running smoothly for years of zero or low-maintenance operation.

Simple foot-pedal control

Rather than h
