Power Assist Perfection + Tire Changer Protection

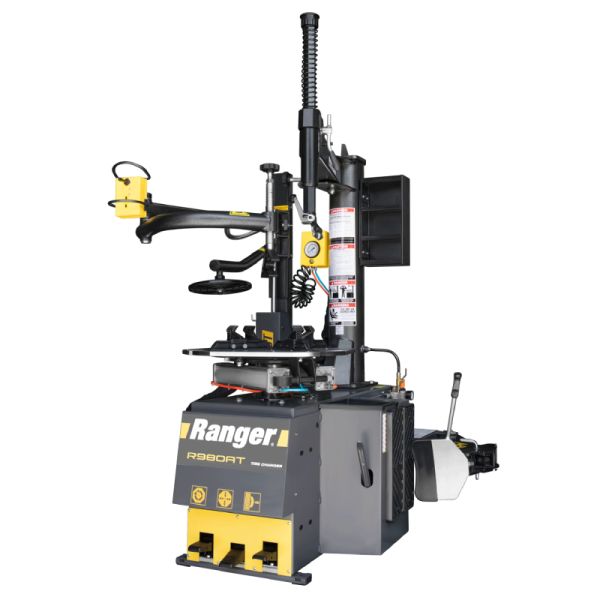

When you need a tire changer that will get the job done on virtually all commuter and passenger vehicles, including pick-up trucks and race cars, the space-saving R980AT might be exactly what you need. It features an assist tower to help unseat stiff, low-profile tire beads and run-flats. Features a centering cone which holds the bead in the drop-center, further helping protect the tire during external clamping procedures. This model is a perfect addition to full-service repair bays and general tire shops because it accommodates a wide range of tire-and-wheel combinations.

110V “L-Model” Available Now

If you don’t mind getting your hands dirty, then the R980AT L-Model is the tire changer for you! This configuration supports a standard 110V outlet, meaning if you want to perform tire changes in your own home, you’re now able to. The "L" model sports a 2 HP motor and requires a 20-amp breaker. With the R980AT L-Model, Ranger puts you in charge! Now you won’t have to worry about working on someone else’s schedule.

Power assist tower

The swing-arm on the R980AT is one of this tire changer’s most useful features. When dealing with run-flats and stubborn beads, the power assist tower will safely secure the edge of the tire, moving along with the activated turntable. The bead will almost always seat without a struggle. Try this on a stubborn bead without the swing-arm, and you’ll be at it for a while, wasting your precious time.

Electric turntable

A high-torque electric turntable efficiently spins tires to seat or remove beads. With reverse-direction foot pedal controls, you’re in total charge of your tire changing operation. The turntable is the only electrical component in the tire changer (everything else is air-powered), and it requires very little support or maintenance over time.

Traveling drop-center top-mount helper / swing-in bottom helper disc

Tough sidewalls? No problem. A traveling drop-center tool makes changing tires easy. Ranger tire changers offer increased safety and efficiency, and the drop-center tool is essential to the entire operation. A swing-in disc can also help loosen beads by using safe pneumatic power that won’t damage your tires.

Updated electric motor

Ranger motors have it all: rugged copper rotor construction, high-quality bearings, thermal-cool epoxy insulation and durable rolled steel frames.

Upfront controls

Foot pedal controls make for hands-free operation of the turntable, and all pneumatic locks and switches are easy to reach.

Stainless steel and aluminum pneumatic cylinders

To ensure a low-friction environment, steel and aluminum cylinders work together to reduce machine vibrations. End-of-stroke cushioning protects seals, wear bands and pistons bands from excessive forces, prolonging the life of the tire changer.

Balanced flywheel

Balanced flywheels also help reduce vibrations in your equipment. The less stress on your machine, the longer it lasts.

Bead-breaker design

The bead-breaker’s speed is significantly increased due to our included bilateral pneumatic accelerators. They’re just as effective in reverse too! The cylinder won’t react if moisture is detected in the air. This eliminates any chance of rust or corrosion due to condensation or extreme humidity. A multi-axis, adjustable blade permits multi-angle tire capacity, while the large, dual-flange axle prevents the blade from flexing or failing.

Enhanced bead-breaker blade

Your Ranger tire changer features a powerful bead breaker ?blade that won’t stress th
