Raytech AV-75 Tumbler
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description

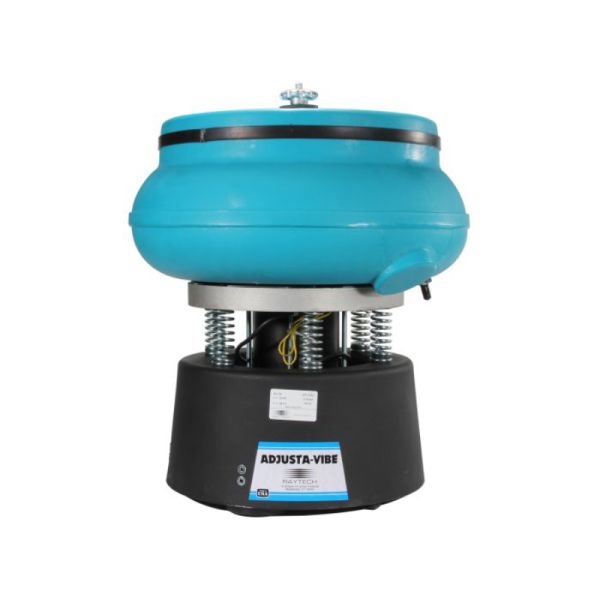

Adjusta-Vibe 75
This machine is equipped with a heavy-duty drive system that includes amplitude adjustment and the same features as the AV-40.
This model has a 21-inch diameter bowl. The AV-75 is a .75 cubic foot capacity machine.
TECH TIPS
The amplitude (the amount of movement of the bowl) determines the force with which the tumbling media will act upon the workpieces. The greater the amplitude, the more aggressive the tumbling action will be. The Adjusta-Vibe makes it possible to adjust the amplitude of the tumbler to match the job to be done. The adjustable weight system will produce a tumbling action that ranges from mild to aggressive.
- Adjusta-Vibe 75
- Comes in 115V (Domestic) & 230V (International)
- 21 " bowl capacity is .75 cubic feet
- Has a drain
- Designed for heavy duty use to deburr or polish
- Features adjustable amplitude
- Rated Horsepower: 115v - 0.38 and 230v - 0.31
Specifications
Part Number | 23040R (115v ) |
---|---|
Motor | 115V 60Hz 2.5 Amps 287W 230V 50Hz 1.0 amps 220W |
Best Use | Heavy deburring , flash removal and polishing |
Helpful Hint | See Tech Tips |
Unit Weight | 67 lbs |
Pack Carton Size | 9.18 Cubic Feet |
Box Measurements | 23 x 30 x 23 |
Bowl Capacity Size | .75 cubic feet |
Bowl Diameter | 21 Inches |
Bowl Height To Lid | 9.5 Inches |
Bowl Width To Shaft | 7 Inches |
