Item # 31679 BRAND: Rockwood

Rockwood® Air Punch and Flange Tool

Unique swivel-head design lets you work from almost any angle
Unique swivel-head design lets you work from almost any angle
Rockwood® Air Punch and Flange Tool is rated 3.2 out of 5 by 19.
  • y_2023, m_9, d_24, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_16
  • loc_en_US, sid_31679, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 24.61ms
  • REVIEWS, PRODUCT
$80.99
Loading...
Loading...
Save for Later
Unique swivel-head design lets you work from almost any angle

90 day Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support

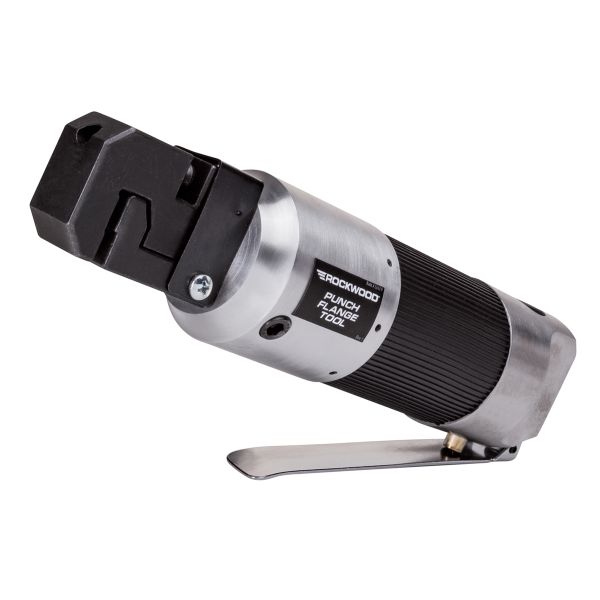

Rockwood® Air Punch and Flange Tool
main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

The Rockwood Air Punch and Flange Tool helps make quick work of seamless repairs by flanging and punching, utilizing the power of compressed air.

  • Produces 0.063” offset flanges
  • Makes perfectly clean 0.19”-diameter holes
  • Works on 16 Gauge Mild Steel / 18 Gauge Stainless Steel
  • Requires only 4 CFM @ 90 PSI

One side of the double-action head produces 0.063” offset flanges on 16-gauge metal or thinner for flush seams when joining panels. The other side produces perfectly clean 0.19”-diameter holes that are ideal for plug welding. Unique swivel-head design lets you work from almost any angle.

Warranty

90 Day

Specifications

Maximum capacity 16 Gauge Mild Steel / 18 Gauge Stainless Steel
Air Consumption MINIMUM, 4 CFM @ 90 PSI
Air Pressure MAXIMUM, 90 PSI
Throat Depth 0.88” [22mm]
Flange Width 0.88” [22mm]
Flange Offset 0.063”
Punched Hole Diameter 0.19”
Punch Hole Center Distance to Edge 0.28”

In the Box

Contents

  • (1) Rockwood Pneumatic Panel Flanging/Punch Tool
  • (1) 5mm Hex Key

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

Always read the tools instructions before use.
Always wear proper safety equipment while using using this tool.
Always follow the proper safety precautions while using this tool.

Click here to see safety products

Accessories

Rockwood Pneumatic Sheet Metal Puncher Air Hole Punch & Flange Rivet Tool With Connector

Application Tips

Produces 0.063 in. Offset Flanges

Reviews

Rated 5 out of 5 by from Great tool addition Its a very clean offset. The hole punch is cleaner & faster than drilling.
Date published: 2023-04-23
Rated 5 out of 5 by from lets make it fast and easy Works great just wish the hole was bigger it would make it easier to mig weld it like spot welds
Date published: 2022-08-21
Rated 5 out of 5 by from Works great with the fix Originally a 1 star. Had the same problem as the other 1 star reviews. Worked first time and then nothing. After investigation, I found the oil leaked out. Take the oil plug out, fill with tool oil, and make sure the o ring is in the recess on the plug. Mine was down on the threads of the plug. Once I made that fix, it works a treat. Like brand new again.
Date published: 2021-03-12
Rated 5 out of 5 by from Works very well. I just used this today and it worked perfectly. Sure beats hammering or hand flanging.
Date published: 2018-10-21
Rated 5 out of 5 by from heavy duty, should last forever. works as expected, should have bought it long ago!
Date published: 2018-06-11
Rated 5 out of 5 by from Great tool for the job I have owned this tool for about 2 years and I am restoring a 1960 BelAir and its been a rustbucket but this tool has come in real handy for flanging metal and getting the panels prepped. Punches through 16 gage steel no problems (@120 psi) Just make sure you have a compressor that can power this tool the to the best of its ability. Swivel neck makes for the right angles in how you hold the tool.
Date published: 2018-03-07
Rated 4 out of 5 by from So far works good I am using this tool for the installation of floor pans in a Chevy truck. At this point in time I am very satisfied with the performance.
Date published: 2018-02-10
Rated 2 out of 5 by from Almost good.. The tool is solid and seems well made. Delivery was slower than anticipated but got here in due time. Puncher worked fine, wish I had one ten years ago. Flanger was disfunctional and would not crimp anything thinner than 16 gauge metal. I called customer service immediately. They were helpful and promised a replacement right away. I have not received it yet nor any promise on when it will be shipped.
Date published: 2023-03-18
  • y_2023, m_9, d_24, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_16
  • loc_en_US, sid_31679, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.9ms
  • REVIEWS, PRODUCT

Questions & Answers

where to get parts for rockwood punch flange tool

Asked by: ronnnn
For any parts requests please reach out to us at help@eastwood.com
Answered by: ZachC
Date published: 2022-03-23

Used my Rockwood flange/punch tool only a few times.  Now the punch die is stuck on the metal and won't release.  How do I get it loose?

Asked by: t_bone
If the gauge of the metal it is too thick or the air supply was inadequate it won't do a complete punch and can bind. To release it you will need to either pry the moving Jaw upward or do a a partial disassembly of the head to release it.
Answered by: John S
Date published: 2020-09-10

What would be the compressor with the least gallons of capacity which works well this Tool

Asked by: Wilfredo
And a compressor of less than 30 gallons although it has 90 psi
Answered by: Wilfredo
Date published: 2020-03-24

I have an Eastwood Pneumatic Perfect Panel Prep Tool. Do you sell the dies to convert it to an Air Punch and Flange Tool?

Asked by: Richard
unfortunately, the tool is as is, there are no additional dies or punches for that tool.
Answered by: Bob G
Date published: 2023-06-30

Wil this tool make a curved flange, say, as when following a curved patch panel around a wheel arch?

Asked by: ZeeResto
This tool will not do curved flanges.
Answered by: ZachC
Date published: 2020-03-05

Specs indicate tool will flange 16 gauge steel. I will be using tool exclusively to flange 16 gauge steel to build floor. Because I am using tool at its limit is it heavy duty enough for 16 gauge only?

Asked by: Old Norse
16 gauge mild steel is the heaviest this will flange.
Answered by: SeanW
Date published: 2018-11-06

How long is the warranty on this item? What does the warranty cover?

Asked by: Familyof10
This item has a 1 year warranty against manufacturer defects.
Answered by: Kelly H
Date published: 2019-12-10

where is it made?

Asked by: mikey327
This tool is manufactured in China to Eastwood's specifications.
Answered by: Scott C
Date published: 2020-07-11
