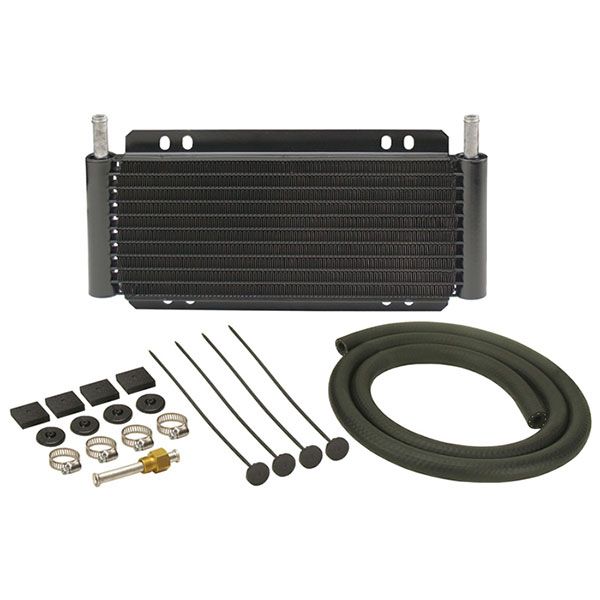

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

•Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
•Extruded plastic cooling fin guards
•Improves transmission performance
•Sturdy furnace-brazed aluminum construction
•9 row cooler design
•3/4" embossed turbulators maximize cooling & minimize pressure drop
•11/32" hose barb inlets
•15500 GVW rated
•Complete hardware kit included

Specifications

•Cooler style: Plate & Fin
•Construction: Aluminum
•Inlet size: 11/32" barb
•GVW: 15500
•Width: 11"
•Height: 5-3/4"
•Depth: 7/8"
•Inlet dim: 10-1/4"
•Mounting: 6-3/4" x 4-1/2"
•Hose size: 11/32"
•Hose length: 4'

Warranty

365 days warranty. Made in USA

11 inches L x 5.75 inches H x .875 inch thickness.

Application Tips

Universal

Instructions

Click here for product instructions

Customer Reviews

Rated 5 out of 5 by Neal from Easy to install Trans Cooler! Bought this for my Buick Riviera. Works great and was easy to install. Dropped my radiator temp by 10 degrees!

Date published: 2015-10-14

Questions & Answers

Hi will this fit my 03 Ford Ranger?

Asked by: Kevin55

This would have to be discussed with the manufacturer directly. They can be reached by calling 800.421.6288

Answered by: Kelly H

Date published: 2021-05-29

Can i use this on my 350 hp 66 Mustang

Asked by: Budrho

Yes if your 1966 mustang has an automatic transmission this highly efficient Derale plate & fin style cooler will work great. The kit includes all the hoses and fittings.

Answered by: vince

Date published: 2021-04-28

what do you fasten it to on a 94 buick regal

Asked by: LARRY

Here is a link to the instructions for installing this item which show different variations of installments https://www.eastwood.com/images/pdf/20245Q_inst.pdf

Answered by: Kelly H

Date published: 2020-01-22

What is your opinion on where to place the tran cooler; in front of or behind the tri-flow radiator? TH400 / 69 Firebird 400

Asked by: Grumpz

This should be mounted in front of the radiator.

Answered by: ZachC

Date published: 2019-09-04

Will this fit on my Volvo s40

Asked by: Autumn

This is a universal fit unit and fits all most all vehicles. Just check the measurements to see where you can fit it.

Answered by: S Church

Date published: 2017-09-25

Will this fit on a 1977 corvette.

Asked by: Tex51

yes it will fit you need to put it in front of the cooler.

Answered by: jr lugo

Date published: 2017-03-04
