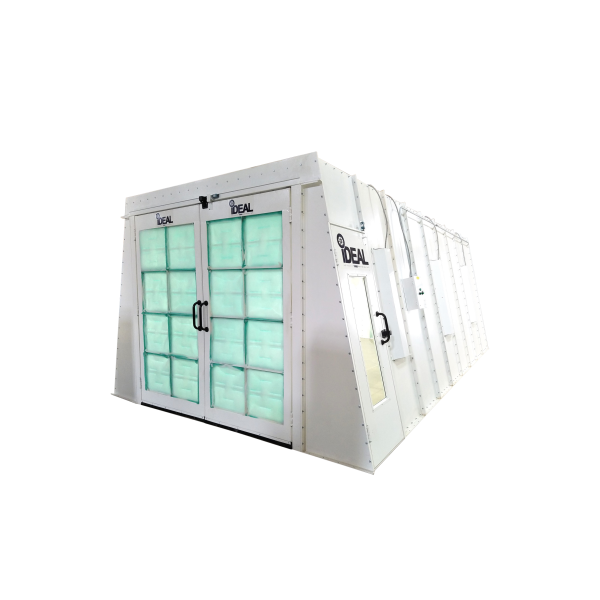

Cross Flow Paint Spray Booth
The iDEAL ‘A-Frame’ Cross Flow Paint Spray Booth is an economic, commercial grade paint spray booth designed to provide superior lighting with optimal ‘cross draft’ air flow to produce a high-quality paint finish in a safe & controlled ventilated work area. The iDEAL Cross Flow Paint Booth is great for small to mid-sized Automobiles, along with being an ideal solution for Industrial or Wood finishing applications. The exhaust fan draws clean filtered air through the front entry door’s intake filters and flows towards the rear of the booth into the filtered exhaust chamber, and then discharged upwards through exhaust fan & ducting. The included bright white powder-coat finish, deluxe control panel, premium filters & high-quality tube-axial exhaust fan complete the package for a premium, high quality Paint Spray Booth, all at a great value!
Features
- Heavy duty precision punched 18 Gauge panel construction
- Optimal ‘cross draft’ air flow w/ CFM 9,500 @ .5 static pressure
- Tilt panel design for optimal lighting coverage
- Inside Dimensions: 22′-6″ L X 13′ W X 8′-6″ H
- Convenient 5/16” bolt & nut assembly
- Deluxe Control Panel included
- Bright White Powder Coat panel Finish – (inside & outside)
- Manometer, Solenoid Valve, Hardware & Sealant Included
- UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
- Premium AFC intake & exhaust filters
- (6ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
- (24ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length
- Double Entry Doors w/ shutoff switches
- Personnel Door w/ viewing window & shutoff switch
- Meets NFPA 33 standards
- Optional: 1PH electrical, Personnel door kit & booth extension kits
Warranty
Specifications
| Paint Booth Model | PSB-AFCF23B-3PH-230V-AK |
| Inside Dimensions | 22'-6"L X 13'W X 8'-6"H |
| Outside Dimensions | 25'-4"L X 13'-4"W X 8'-10"H |
| Fan / Motor | 24" Tube Axial Fan 3HP-3PH-230/460VAC-60HZ Non-Spark, NEMA Rated |
| CFM | 9,500 @ .5 Static Pressure |
| Lighting | 6 Each T-8 / 4 Bulb Light Fixtures |
| Options | Single Phase Electrical Configuration |
| 8' Exhaust Duct Kit (25" Diameter) | |
| Side Personnel Door Kit | |
| 30" Lighted Extension Panel Kit | |
| 30" Solid Extension Panel Kit | |
| Electric Booth Heater 3 Phase | |
| Electric Booth Heater 1 Phase | |
| LED Lighting Upgrade Kit |
