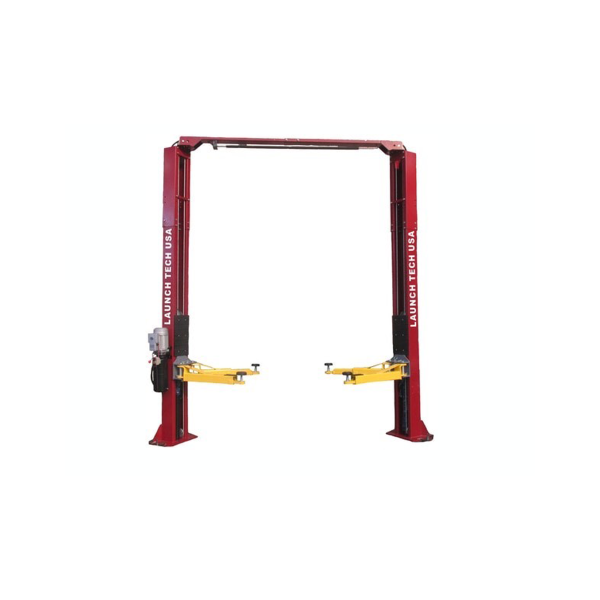

Tuxedo Distributors Launch 9000 lb Two Post Clear Floor Lift - Asymmetric - RED TLT240SC-R

Tuxedo, LAUNCH, Two Post Clear Floor Lift
Tuxedo, LAUNCH, Two Post Clear Floor Lift
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 6.18ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$3,999.99
Loading...
Loading...
Save for Later
Tuxedo, LAUNCH, Two Post Clear Floor Lift

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Tuxedo Distributors Launch 9000 lb Two Post Clear Floor Lift - Asymmetric - RED TLT240SC-R

Product Overview:

Description

Tuxedo, LAUNCH, Two Post Clear Floor Lift

Economical, high quality, Clear Floor chain-over lift with dual point lock release, steel pulleys, high strength equalization cables and double telescoping screw pads configured to accommodate the smallest Cars to the SUV's and Trucks.

Features

  • 9,000 lbs. capacity
  • Chain crive
  • Rubber door guards
  • Hose guards
  • Dual point lock release
  • Heavy duty arm restraint system
  • Double telescoping screw pads
  • Adjustable column width
  • Standard or rotated asymmetric columns
  • 3 stage front arms
  • Stackable pad extensions

Warranty

1 Year Manufacturers Warranty

Specifications

Lift Model TLT240SC-R
Capacity 9,000 lbs.
Height Overall 151"
Width Overall w/ Power Unit Asymmetric: 140"
Symmetric: 134"
Max Lift Height 73"
Width Between Columns 108"
Min. Pad Height 4"
Drive Thru Clearance Asymmetric: 95"
Symmetric: 98"
Lifting Speed 50S
Asymmetric / Symmetric Symmetric/Asymmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 23-5/8"-43-1/2"
Long Arm Reach – min/max 34"-54"
Narrow Bay Setting Deduct 5.9"
Max Load Per Arm 2,250 lbs
Ship Weight 1,600 lbs
Power 208-230V-60Hz.-1 PH

Shipping & Handling

Free Shipping

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

Click here for product manual

Safety Information

Please read and follow manufacturers instructions.
