Product Overview:
Description

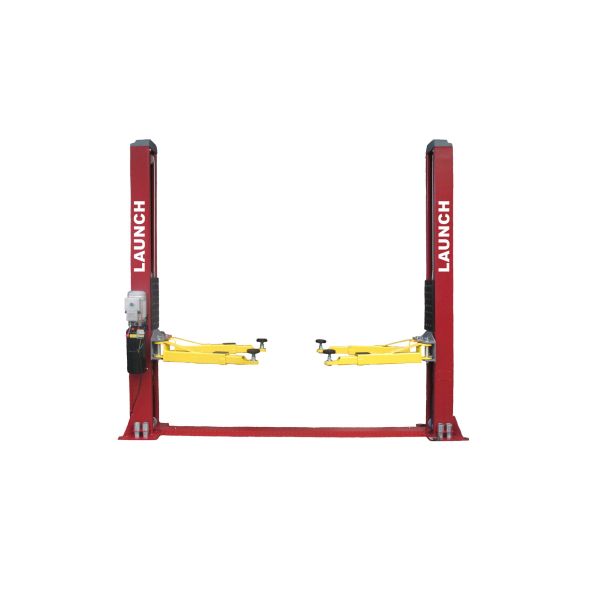

Tuxedo, LAUNCH, Two Post Floor Plate Lift
Economical, high quality, floor plate chain-over lift with dual point lock release, steel pulleys, high strength equalization cables and double telescoping screw pads configured to accommodate the smallest Cars to the SUV's and Trucks.
Features
- 9,000 lbs. capacity
- Chain drive
- Rubber door guards
- Hose duards
- Dual point lock release
- Heavy duty arm restraint system
- Double telescoping screw pads
- Stackable pad extensions
Warranty
Specifications
Lift Model | TLT240SB-R |
Capacity | 9,000 lbs. |
Height Overall | 113" |
Width Overall w/ Power Unit | 133" |
Max Lift Height | 73" |
Width Between Columns | 108" |
Min. Pad Height | 4" |
Drive Thru Clearance | 98" |
Lifting Speed | 50S |
Asymmetric / Symmetric | Symmetric |
Clear Floor / Floor Plate | Floor Plate |
Short Arm Reach – min/max | 31-1/2"-47-1/4" |
Long Arm Reach – min/max | Same |
Narrow Bay Setting | N/A |
Max Load Per Arm | 2,250 lbs |
Ship Weight | 1,445 lbs |
Power | 208-230V-60Hz.-1 PH |
