Item # 56432 BRAND: Yost Vises

Yost Model 750-DI 5-1/8 Inch Multi Jaw Rotating Combination Pipe and Bench Vise Swivel Base

Highly Durable Combination Vise from Yost
Highly Durable Combination Vise from Yost
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 25.88ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$263.99
Loading...
Loading...
Save for Later
Highly Durable Combination Vise from Yost

3 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Yost Model 750-DI 5-1/8 Inch Multi Jaw Rotating Combination Pipe and Bench Vise Swivel Base

Product Overview:

Description

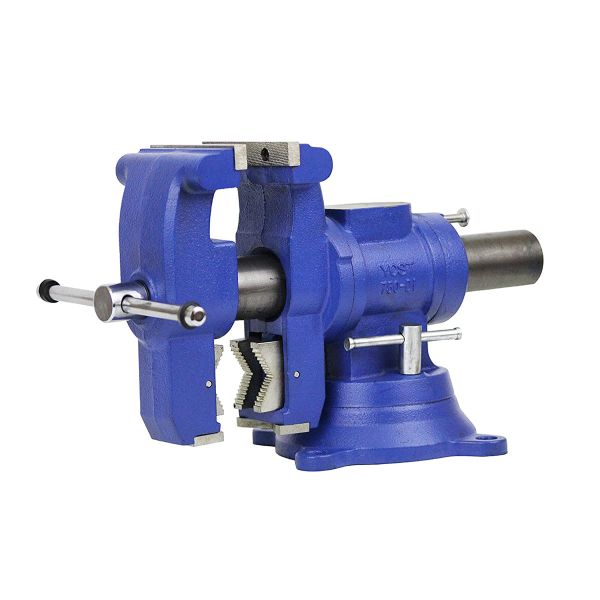

This heavy-duty ductile iron casted vise has a dual jaw system equipped with a bench jaw to perfectly secure your wood or metal works as well as other manufacturing applications and a pipe jaw for your pipe and tubing projects such as cutting or threading.

  • Meets NSN 5120-01-520-9328
  • Made of Heavy Duty Ductile Iron
  • Vise is equipped with (3) three sets of replaceable hardened steel jaws
  • Parallel serrated jaws pipe jaws and V-jaws for holding both round and flat stock
  • Vise head rotates 360° with locking at every 30° or (12) twelve different locking positions
  • Vise body rotates 360° using interlocking V-grooved swivel base and (2) two lockdowns to lock at any position
  • Swivel base has (4) four 5/8 Inch Dia. holes for securing vise base to a work bench (fasteners not included)
  • Large built-in anvil
  • No-pinch main screw handle

Yost Vises has been producing high-quality vises and vise accessories since 1908. We supply our products to both large distributors and individual craftsmen throughout the world ranging from industrial-grade vises, professional-grade vises, workshop-grade vises, light to heavy-duty vises, multifunction vises, welding vises, etc... Our products meet or exceed the Industrial Standard of Federal Specification GGG-V-410A, providing consumers with quality products that last for years at a great price.

Yost Combination Vise Chart

Warranty

Yost Warranty Terms

Specifications

Model Number: 750-DI
Jaw Width (nominal inches): 5
Jaw Opening (nominal inches): 5
Throat Depth (nominal inches): 4
Min Pipe Capacity (nominal inches): 0.125
Max Pipe Capacity (nominal inches): 3.5
Base: Swivel
Material: Ductile Iron
NSN: NSN 5120-01-520-9328 (5120015209328)
Packaging Dimensions: 20 inches x 10 inches x 10.5 inches
Shipping Weight (lbs): 63
Country of Origin: China

In the Box

Contents

(1) Yost Model 750-DI 5-1/8 Inch Multi Jaw Rotating Bench Vise
