Item # 57071 BRAND: Yost Vises

Yost Model T-2503 2-1/2 Inch Clamp-on Vise Replaceable Jaw Facings

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 72.68ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Reg. $34.99 Sale $30.97 Save $4.02
Loading...
Save for Later

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Yost Model T-2503 2-1/2 Inch Clamp-on Vise Replaceable Jaw Facings

Product Overview:

Description

The clamp on bench vise shall consist of a body with integral front and back jaws (back body with anvil feature), a sliding front jaw body, guide rods, vise screw and a sliding screw handle with a stop on each end. The back jaw and body combination shall extend down and under (a bench / shelf) in a yoke style. A clamping screw will extend through the bottom of the yoke and the swivel button at the top end of the screw. A clamping screw handle (“T”, or sliding bar type) shall be provided at the bottom end of the screw. Replaceable jaw facings shall be of hard plastic (Nylon), tool steel or mild steel, milled, or otherwise machined parallel with part of the face that is applied to the castings. Replaceable hard plastic (Nylon) jaw facings and hard steel jaw facings are supplied as smooth facings and with necessary mounting hardware. See accessories for additional information.

  • Conforms to Federal Specification GG-V-410A
  • Meets National Stock Number NSN# 5120-01-657-5478
  • Clamp On Vise Made from Gray Iron
  • Two steel guide rods provide smooth screw action
  • Yoke-style screw clamp for mounting to bench tops 1/2" - 1-7/8" thick
  • Replaceable / interchangeable hard plastic (nylon) jaws. Mounted on vise.

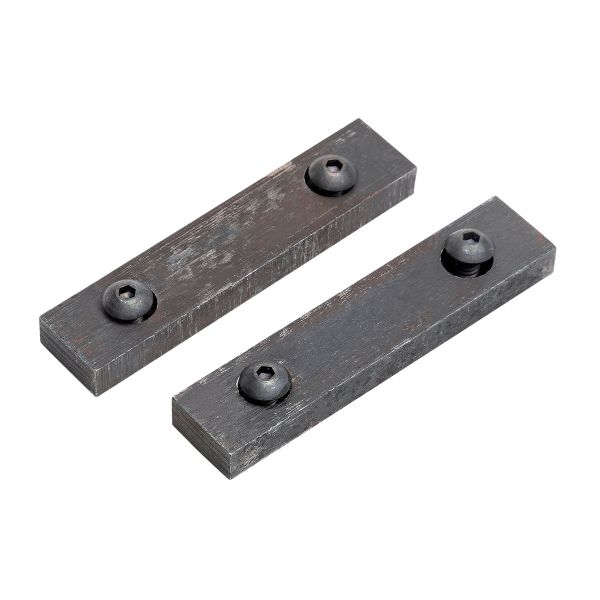

  • Replaceable / interchangeable hardened steel jaws
  • Vise, Bench, Clamp Base (Utility); Type: Stationary Base
  • Individually Packed

Specifications

Model # 2503
Item # 102503
Jaw Width (nominal inches) 2.5"
Jaw Opening (nominal inches) 3"
Throat Depth (nominal inches) 1.25"
Min Pipe Capacity (nominal inches) -
Max Pipe Capacity (nominal inches) -
Base Clamp
Material Grey Iron
NSN NSN# 5120-01-657-5478 (5120016575478)
Packaging Dimensions 9" x 6" x 3"
Shipping Weight (lbs) 4
Country of Origin Taiwan

In the Box
