BendPak BB-2 Pipe Bender - w/ B-2 Die Package 5115150

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
BendPak BB-2 Pipe Bender - w/ B-2 Die Package 5115150

Product Overview:

Description

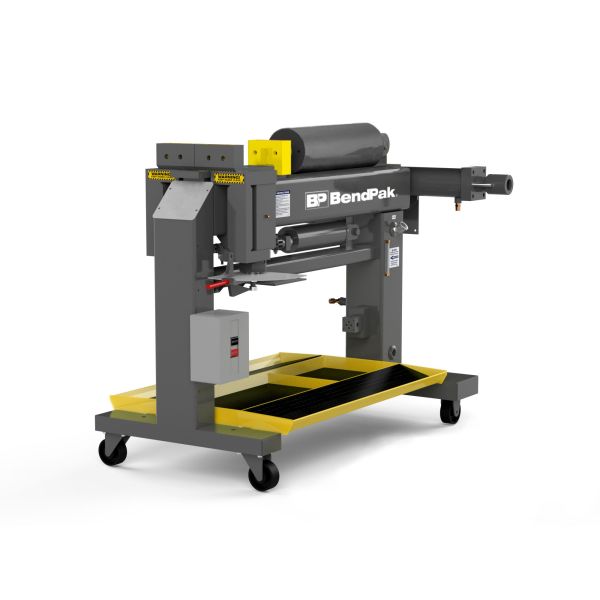

Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.

Go Manual and Control Your Bends
Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.

With its superior performance and simple operation, the Blue Bullet BB-2 exhaust pipe benders will hold a special place in your shop. We took our standard bender and equipped it with a knee valve and degree plate combination for a straightforward, rugged design that will never let you down. The knee operated valve gives you precise control and hands-free bending capabilities. Simply push the lever to the left to advance the bending die and then to the right to retract it. Heavy-duty cast iron construction guarantees that the valve will stand up to years of heavy use.

Quick-change bending dies
Who has time to waste? Not you. Especially when you have a car in the air and others lined up. Our competitors tried for years to come up with an effective way to swiftly switch out the bending dies, but BendPak actually did it. Our twist-lock tooling and quick-change bending dies are so effective that they are copied across the entire industry. We choose to think of imitation as the best form of flattery, but you should make sure that you get your innovative equipment from the originator and not a knock-off.

180° bending capacity
You told us you needed a bender with an extremely deep bending capability. Is a U-shape deep enough? Thought so. Be sure to ask for our 180° dies if you're planning to bend more than 170°. You'll get perfect, deep bends on a 5" radius, without pipe sticking or hang-ups. That's because we use an exclusive relief cut design on our bending dies to help maintain the pipe's uniformity throughout the bend cycle and eliminate excessive crimping or deformation.

3" bending capacity with die kit
We built a convenient 3" bending capacity into every BendPak bender. In fact, our 3" bending dies perfectly exemplify our commitment to quality. Take a close look at the design. They might look like ordinary bending dies, but these heavy handfuls are anything but. No other manufacturer uses our exclusive step-cut process for the die rails. Our dies feature better-contained, larger-sized tubing for a more uniform bend. Despite the title of "bender," this unit is actually capable of expanding and flaring, too! Choose from a full range of exclusive dies.

Long-stroke bending cylinder
Because every BendPak bender is equipped with an extended-top cylinder, you no longer need to use pusher block extensions when bending with small-radius dies. Also, the 14" top-cylinder can be retracted further, providing additional clearance for changing dies or removing bent tubing.

Clampless swager
All BendPak benders are equipped with our exclusive clampless swager, which puts out an incredible force of over 30,000 lbs. for quick and precise end forming. The clampless swager provides rapid set-up time and a high degree of accuracy for I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints, reductions and manifold flanges. All tooling is quick-release. Take a close look at the clamp assembly. You won't see a cumbersome, antiquated vise in our clamp assembly. What you will find is modern ingenuity at its finest—the narrow-hinged collars simply drop into position and allow for flare tubing ends as close as 3" from a bend. Don't worry about troublesome slipp

Warranty

Warranty

Specifications

Overview
Bending Controls: Manual / Knee Lever
Expander Controls: Manual / Knee Lever
Frame Style: Double-Ended Expander
Max. Tube Capacity: 3'' (76 mm) .095 wall
Bending
Max. Bending Radius: 5'' (127 mm)
Min. Bending Radius: 3.3'' (89 mm)
Hydraulics
Top Cylinder Force: 60,000 lbs. (27,216 kg)
Hydraulic Filter: Canister
Motor: 5 HP / 208-230 VAC / 60 Hz / 1 PH
Die Pack
Standard: 1.5'', 1.75'', 1.625'', 2'', 2.25'', 2.5'' (BB-2)

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/BendPak-Pipe-Bender-Manual.pdf" target="_blank"><i><b>User Manual for Part # 5115150</b></i></a></p>
