Product Overview:
Description

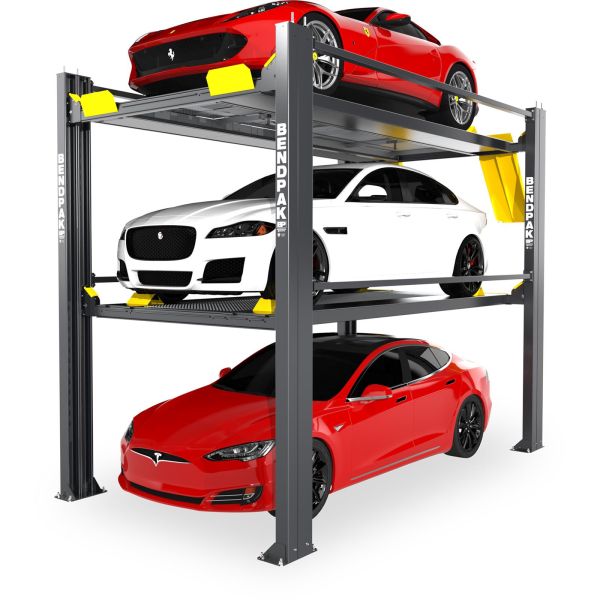

The BendPak Galvanized Tri-Level Parking Lift is made of galvanized steel with powdercoated finish for great strength and durability. This lift is perfect for service, parking and storage.
Features:
- 7,000 lb. lifting capacity for top platform and a 9,000 lb. lifting capacity for center platform
- Perfect for parking, storage, and service
- Durable powdercoat finish
- Ideal for cars, trucks, and SUVs
- Platforms feature full-length aluminum decking
- Heavy-duty 3/8 in. lifting cable
- Reliable electric-hydraulic power system
- Automatic safety locks combine with redundant anti-fall devices
Warranty
Specifications
| Style | |
| Style: | Multi-Level Parking Lift |
| Top Platform | |
| Lifting Capacity* | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Overall Width | 112'' (2,849 mm) |
| B - Overall Length | 242'' (6,139 mm) |
| C - Height of Columns | 161'' (4,093 mm) |
| D - Drive-thru Clearance | 87'' (2,201 mm) |
| E - Maximum Rise | 139.5'' (3,544 mm) |
| F - Maximum Lifting Height | 144'' (3,6​67 mm) |
| G - Distance Between Columns | 100'' (2,546 mm) |
| H - Runway Width | 19'' (482 mm) |
| I - Width Between Runways | 44'' (1,121 mm) |
| J - Runway Length | 188.5'' (4,786 mm) |
| Min. Wheelbase @ rated Capacity 1 | 135'' (3,429 mm) |
| Min. Wheelbase @ 75% Capacity 1 | 115'' (2,921 mm) |
| Min. Wheelbase @ 50% Capacity 1 | 95'' (2,413 mm) |
| Min. Wheelbase @ 25% Capacity 1 | 80'' (2,032 mm) |
| Locking Positions | 31 |
| Locking Spacing | Every 4'' (102 mm) |
| Lifting Time to Max. Rise | 90 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Bottom Platform | |
| Lifting Capacity* | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Overall Width | 112'' (2,849 mm) |
| B - Overall Length | 242'' (6,139 mm) |
| C - Height of Columns | 161'' (4,093 mm) |
| D - Drive-thru Clearance | 90.25'' (2,292 mm) |
| E - Maximum Rise | 70'' (1,7​83 mm) |
| F - Maximum Lifting Height | 75'' (1,​906 mm) |
| G - Distance Between Columns | 100'' (2,546 mm) |
| H - Runway Width | 19'' (482 mm) |
| I - Width Between Runways | 44'' (1,121 mm) |
| J - Runway Length | 176'' (4,47​4 mm) |
| Min. Wheelbase @ rated Capacity 1 | 125'' (3,175 mm) |
| Min. Wheelbase @ 75% Capacity 1 | ​110'' (2,​794 mm) |
| Min. Wheelbase @ 50% Capacity 1 | ​90'' (2,​289 mm) |
| Min. Wheelbase @ 25% Capacity 1 | 7​5'' (1,​905 mm) |
| Locking Positions | 13 |
| Locking Spacing | Every 4'' (102 mm) |
| Lifting Time to Max. Rise | 50 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
Shipping & Handling
- Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
- Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
- Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.Â
https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf
https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf
In the Box
