Product Overview:

Description

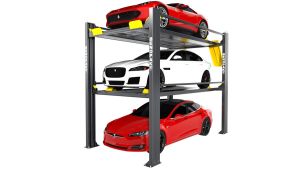

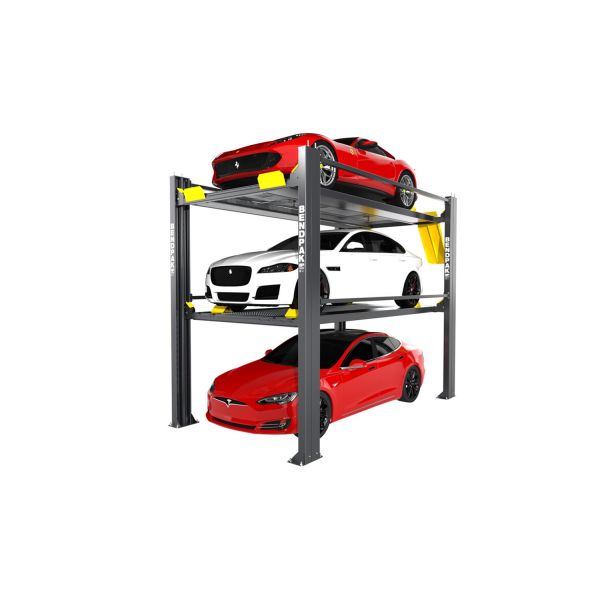

Meet the HD-973P, whose patent-pending design allows the storage of three vehicles in a single parking space. Plus, its independent platforms mean you can park vehicles at the height of your choice. Ideal for sedans, SUV’s and full-size trucks.

The Easy Triple

The HD-973P by BendPak is a four-post parking lift that offers a cost-effective way to triple the capacity of typical parking areas. Our patent-pending design can be used indoors or outdoors, and this lift allows the storage of three vehicles in a single parking space. The upper platform accommodates vehicles weighing up to 7,000 lbs., and the lower deck heftily handles up to 9,000 lbs. This is the perfect mechanical parking system for sedans, SUVs and full-size trucks.

While triple-stacking parking lifts are incredibly useful tools, most examples of this type of structure are too tall for many shops and garages. That's why we invented the HD-973P. It is an incredibly unique parking lift that fits in more spaces than any other triple-stacker. The secret to its success: Its specially engineered design lacks cumbersome mechanisms that project high over the top of the lift. This eliminates several feet of lift structure while maintaining a safe, stable and revolutionary design.

Proprietary design
Shortened height columns allow this car lift to fit in low ceiling spaces where others systems can’t. Although shorter in stature than most tri-level systems, the lower space still yields a full 70 inches of rise.

Independent platforms
Typical multi-level car stackers include a bottom platform that is suspended from the upper platform via chains or cables—both platforms move simultaneously. This tethered operation results in limited spacing options between platforms, as the distance between platforms is fixed.

The HD-973P features independently operated lifting platforms, permitting varied vehicle heights and spacing in either upper or lower parking spaces. Because the platforms do not have to move in unison with one another, you can now lower the bottom platform without disrupting the overhead vehicle being stored. This allows operators to control one platform at a time. Practically speaking, if you only want to swap out the second-level vehicle, you don't have to lower the top-level vehicle.

Unmatched protection
The patent-pending design of the HD-973P features multi-position safety locks that are spaced just four inches apart. This allows almost unlimited parking height arrangements on either the upper or lower decks. Redundant, anti-fall, spring-loaded safety catches immediately halt downward movement of either platform in the unlikely event of cable failure.

Hydraulic power
A powerful hydraulic cylinder is enclosed underside each platform set and is matched with high-strength lifting cables for simplicity and dependability. The lift can be configured for drive-thru operation, allowing as many as three deep for maximum efficiency and better use of space.

Smarter construction means less cost to you
High-rise parking lifts that can fit three vehicles will inevitably cost more than other lifts. There's simply more steel involved, and larger lifts require additional engineering, all of which gets incorporated in the cost. The HD-973P offsets much of that extra cost because its smart design requires less steel. The end result is an incredibly efficient parking lift that actually saves buyers thousands of dollars while upholding the industry's most rigid safety standards.

Weight-displacing base
Specially designed base frames distribute the load, which makes this unique lifting system suitable for installation on virtually any residential or commercial concrete floor.

Warranty

Warranty

Specifications

Style
Style: Multi-Level Parking Lift
Top Platform
Lifting Capacity* 7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)
A - Overall Width 112'' (2,849 mm)
B - Overall Length 242'' (6,139 mm)
C - Height of Columns 161'' (4,093 mm)
D - Drive-thru Clearance 87'' (2,201 mm)
E - Maximum Rise 139.5'' (3,544 mm)
F - Maximum Lifting Height 144'' (3,6​67 mm)
G - Distance Between Columns 100'' (2,546 mm)
H - Runway Width 19'' (482 mm)
I - Width Between Runways 44'' (1,121 mm)
J - Runway Length 188.5'' (4,786 mm)
Min. Wheelbase @ rated Capacity 1 135'' (3,429 mm)
Min. Wheelbase @ 75% Capacity 1 115'' (2,921 mm)
Min. Wheelbase @ 50% Capacity 1 95'' (2,413 mm)
Min. Wheelbase @ 25% Capacity 1 80'' (2,032 mm)
Locking Positions 31
Locking Spacing Every 4'' (102 mm)
Lifting Time to Max. Rise 90 seconds
Motor 220 VAC / 60 Hz / 1 Ph
Bottom Platform
Lifting Capacity* 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
A - Overall Width 112'' (2,849 mm)
B - Overall Length 242'' (6,139 mm)
C - Height of Columns 161'' (4,093 mm)
D - Drive-thru Clearance 90.25'' (2,292 mm)
E - Maximum Rise 70'' (1,7​83 mm)
F - Maximum Lifting Height 75'' (1,​906 mm)
G - Distance Between Columns 100'' (2,546 mm)
H - Runway Width 19'' (482 mm)
I - Width Between Runways 44'' (1,121 mm)
J - Runway Length 176'' (4,47​4 mm)
Min. Wheelbase @ rated Capacity 1 125'' (3,175 mm)
Min. Wheelbase @ 75% Capacity 1 ​110'' (2,​794 mm)
Min. Wheelbase @ 50% Capacity 1 ​90'' (2,​289 mm)
Min. Wheelbase @ 25% Capacity 1 7​5'' (1,​905 mm)
Locking Positions 13
Locking Spacing Every 4'' (102 mm)
Lifting Time to Max. Rise 50 seconds
Motor 220 VAC / 60 Hz / 1 Ph

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/HD-973P-Parking-Lift-Manual-5175238-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175238</b></i></a></p>

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.89ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

What is the recommended ceiling height for these?

Asked by: Ceiling height
Depending on the height of the vehicle on the top rack. Style: Multi-Level Parking Lift Top Platform Lifting Capacity* 7,000 lbs. (3,175 kg) *Max Capacity / Front Axle 3,500 lbs. (1,588 kg) *Max Capacity / Rear Axle 3,500 lbs. (1,588 kg) A - Overall Width 112'' (2,849 mm) B - Overall Length 242'' (6,139 mm) C - Height of Columns 161'' (4,093 mm) D - Drive-thru Clearance 87'' (2,201 mm) E - Maximum Rise 139.5'' (3,544 mm) F - Maximum Lifting Height 144'' (3,6​67 mm) G - Distance Between Columns 100'' (2,546 mm) H - Runway Width 19'' (482 mm) I - Width Between Runways 44'' (1,121 mm) J - Runway Length 188.5'' (4,786 mm) Min. Wheelbase @ rated Capacity 1 135'' (3,429 mm) Min. Wheelbase @ 75% Capacity 1 115'' (2,921 mm) Min. Wheelbase @ 50% Capacity 1 95'' (2,413 mm) Min. Wheelbase @ 25% Capacity 1 80'' (2,032 mm) Locking Positions 31 Locking Spacing Every 4'' (102 mm) Lifting Time to Max. Rise 90 seconds Motor 220 VAC / 60 Hz / 1 Ph Bottom Platform Lifting Capacity* 9,000 lbs. (4,082 kg) *Max Capacity / Front Axle 4,500 lbs. (2,041 kg) *Max Capacity / Rear Axle 4,500 lbs. (2,041 kg) A - Overall Width 112'' (2,849 mm) B - Overall Length 242'' (6,139 mm) C - Height of Columns 161'' (4,093 mm) D - Drive-thru Clearance 90.25'' (2,292 mm) E - Maximum Rise 70'' (1,7​83 mm) F - Maximum Lifting Height 75'' (1,​906 mm) G - Distance Between Columns 100'' (2,546 mm) H - Runway Width 19'' (482 mm) I - Width Between Runways 44'' (1,121 mm) J - Runway Length 176'' (4,47​4 mm) Min. Wheelbase @ rated Capacity 1 125'' (3,175 mm) Min. Wheelbase @ 75% Capacity 1 ​110'' (2,​794 mm) Min. Wheelbase @ 50% Capacity 1 ​90'' (2,​289 mm) Min. Wheelbase @ 25% Capacity 1 7​5'' (1,​905 mm)
Answered by: Anonymous
Date published: 2023-03-06
