Item # 32700 BRAND: BendPak

BendPak HD-9STX - Four-Post - Narrow Width - High Lift - 9000 lb. Capacity 5175862

BendPak HD-9STX - Four-Post - Narrow Width - High Lift - 9,000 lb. Capacity 5175862
BendPak HD-9STX - Four-Post - Narrow Width - High Lift - 9,000 lb. Capacity 5175862
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 61.81ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,125.00
Loading...
Loading...
Save for Later
BendPak HD-9STX - Four-Post - Narrow Width - High Lift - 9,000 lb. Capacity 5175862
  • 90-Day Returns
  • Technical Support
BendPak HD-9STX - Four-Post - Narrow Width - High Lift - 9000 lb. Capacity 5175862

Description

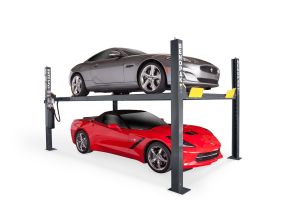

The HD-9STX is our tall and narrow four-post lift that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.

More Height in Less Floor Space

The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service—in the shop or garages with high ceilings. Whether you're a service professional or a DIY'er, BendPak’s got the right lift for you. This model is available with optional casters, drip-trays, jack platform and more.

With more height to work with, this lift does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise lift also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on high-rise car lift. The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When you’re uncomfortable, you’re more likely to make mistakes, and there’s nothing better than a car lift that lifts to the perfect height. The HD-9STX maximizes versatility in a car lift that adapts to your height and lifestyle. The narrow designs fits in the same floor space as the HD-9ST but requires a bit more ceiling height to fully enjoy.

Features:

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Freestanding design
  • Narrow-width
  • High-rise
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>9,000 lbs. (4,082 kg)</td> </tr> <tr> <td>*Max Capacity / Front Axle</td> <td>4,500 lbs. (2,041 kg)</td> </tr> <tr> <td>*Max Capacity / Rear Axle</td> <td>4,500 lbs. (2,041 kg)</td> </tr> <tr> <td><strong>Rise</strong></td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>4.5'' (114 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>82'' (2,083 mm)</td> </tr> <tr> <td>C - Max. Lifting Height:</td> <td>86.5'' (2,197 mm)</td> </tr> <tr> <td>Time to Full Rise:</td> <td>55 seconds</td> </tr> <tr> <td><strong>Outside Dimensions</strong></td> </tr> <tr> <td>D - Overall Width:</td> <td>100.25'' (2,546 mm)</td> </tr> <tr> <td>E - Outside Length:</td> <td>198'' (5,029 mm)</td> </tr> <tr> <td>F - Overall Length:</td> <td>224'' (5,690 mm)</td> </tr> <tr> <td>G - Height of Columns:</td> <td>100'' (2,540 mm)</td> </tr> <tr> <td><strong>Inside Dimensions</strong></td> </tr> <tr> <td>H - Width Between Columns</td> <td>89.75'' (2,280 mm)</td> </tr> <tr> <td>I - Drive-Thru Clearance</td> <td>76.5'' (1,943 mm)</td> </tr> <tr> <td><strong>Runways</strong></td> </tr> <tr> <td>J - Runway Width</td> <td>19'' (483 mm)</td> </tr> <tr> <td>K - Length of Runways</td> <td>188'' (4,775 mm)</td> </tr> <tr> <td>L - Width Between Runways</td> <td>37.5'' (952 mm)</td> </tr> <tr> <td>M - Runway Centerline</td> <td>56.5'' (1,435 mm)</td> </tr> <tr> <td>N - Outside Edge of Runways</td> <td>75.5'' (1,918 mm)</td> </tr> <tr> <td><strong>Minimum Wheelbase</strong></td> </tr> <tr> <td>Rated Capacity:</td> <td>135'' (3,429 mm)</td> </tr> <tr> <td>75% Capacity:</td> <td>115'' (2,921 mm)</td> </tr> <tr> <td>50% Capacity:</td> <td>95'' (2,413 mm)</td> </tr> <tr> <td>25% Capacity:</td> <td>80'' (2,032 mm)</td> </tr> <tr> <td><strong>Locking</strong></td> </tr> <tr> <td>Locking Positions:</td> <td>15</td> </tr> <tr> <td>Lock Spacing:</td> <td>Every 4'' (102 mm)</td> </tr> <tr> <td><strong>Power Unit</strong></td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> <tr> <td>Noise:</td> <td>45 dB</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Two-Post-Four-Post-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/HD-9-Four-Post-Lift-Manual-5900123-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32700</b></i></a></p>
