BendPak HDSO-14P - Four-Post - Extended Length - Open Front - 14,000 lb. Capacity 5175152
  • 90-Day Returns
  • Technical Support
BendPak HDSO-14P - Four-Post - Extended Length - Open Front - 14000 lb. Capacity 5175152

Description

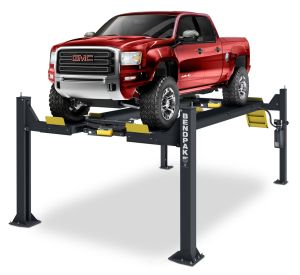

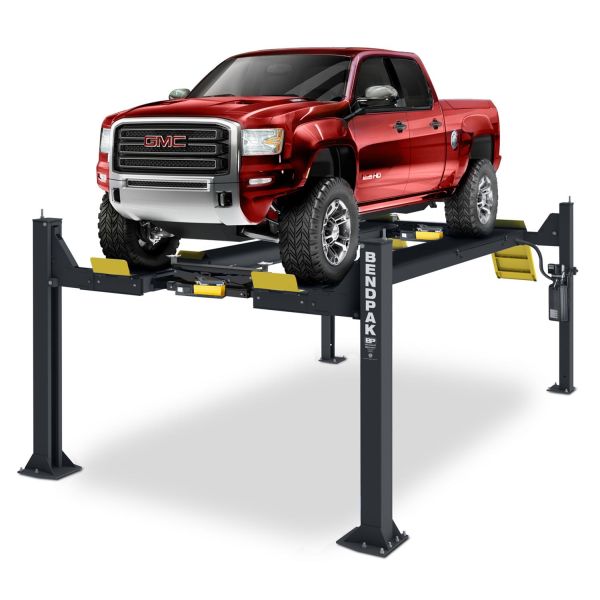

Open-Front Capability in a Powerful Four-Post Lift

The HDSO14P is an open-front four-post lift that features clear entry upfront, providing easy vehicle access. A generous 14,000-lb. lifting capacity and extended runways allow you to service a wide variety of vehicles, ranging from small cars to full-size trucks.

Open-front design
We engineered the HDSO14P without a front cross bar, so operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This model is a must-have for busy alignment bays.

Patented, adjustable front outrigger tubes
For precise front-lift leveling, nothing beats our patented adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and unlevel floors.

Dependable design
Four heavy-duty, high-quality, stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway make this lift the most durable, maintenance-free lifting system on the market.

Oversize dual-hub cable sheaves
Huge 10.5” diameter cable sheaves within the runway and cross tubes work with massive 2.25” diameter sheave axles to improve cable wear and critical component lifespan. Dual‐hub cable sheaves reduce stress, fatigue and wear. Naturally, this means a lot less money in service-related expenses down the road.

Multi-level locking positions
The HDSO14P is equipped with multiple adjustable height locking positions for variable-height parking. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.

Heavy-duty aircraft cable
Each lift is supplied with four high-quality 1/2” diameter, 6 x 25 stainless steel lifting cables rated at 14,400 lbs. each. The combined rating of these cables is more than 411% of the maximum lifting capacity of the entire lift! This aircraft‐quality cable was specifically designed for lifting applications and provides a great balance between abrasion resistance and fatigue. And we make sure it looks tidy too—all lifting cables are fully enclosed within the lift structure itself.

Features:

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Huge cable sheaves reduce wear and tear
  • Extremely convenient open-front design for easy access
  • Extended runway length for servicing
  • Longer approach ramps for low ground clearance vehicles
  • Electric / hydraulic power system
  • Runways include rail-kit for optional accessories
  • Runways adjust for different tread widths
  • Automatic leveling system with multiple auto-leveling locking positions
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Features heavy-duty 1/2" aircraft cable
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Rugged, self-lubricating cable sheaves
  • Features 1-3/8” sheave axles
  • Multi-position safety locks in each column
  • Independent backup slack-cable safety latches
  • Includes fully adjustable lock stops for precise leveling
  • Integrated rolling bridge airline kit option available
  • Roll-back kit options available
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional 7,000-lb. capacity rolling jacks available (Model RJ-7)

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>14,000 lbs. (6,350 kg)</td> </tr> <tr> <td>*Max Capacity / Front Axle</td> <td>7,000 lbs. (3,175 kg)</td> </tr> <tr> <td>*Max Capacity / Rear Axle</td> <td>7,000 lbs. (3,175 kg)</td> </tr> <tr> <td><strong>Rise</strong></td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>7.625'' (194 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>70'' (1,778 mm)</td> </tr> <tr> <td>C - Max. Lifting Height:</td> <td>77.625'' (1,972 mm)</td> </tr> <tr> <td>Time to Full Rise:</td> <td>60 seconds</td> </tr> <tr> <td>D - Overall Width (FRONT)</td> <td>143'' (3,632 mm)</td> </tr> <tr> <td>E - Overall Width (REAR):</td> <td>130'' (3,301 mm)</td> </tr> <tr> <td>F - Outside Length</td> <td>215.5'' (5,473 mm)</td> </tr> <tr> <td>G - Overall Length</td> <td>244'' (6,198 mm)</td> </tr> <tr> <td>H - Height of Columns (FRONT)</td> <td>105'' (2,664 mm)</td> </tr> <tr> <td>I - Height of Columns (REAR)</td> <td>103'' (2,613 mm)</td> </tr> <tr> <td>J - Width Between Columns (FRONT)</td> <td>123'' (3,124 mm)</td> </tr> <tr> <td>K - Width Between Columns (REAR)</td> <td>120'' (3,046 mm)</td> </tr> <tr> <td>L - Drive-Thru Clearance</td> <td>97'' (2,464 mm)</td> </tr> <tr> <td>M - Runway Width</td> <td>20'' (508 mm)</td> </tr> <tr> <td>N - Length of Runways</td> <td>199'' (5,054 mm)</td> </tr> <tr> <td>O - Width Between Runways</td> <td>45'' (1,143 mm)</td> </tr> <tr> <td>P - Runway Centerline</td> <td>65'' (1,651 mm)</td> </tr> <tr> <td>Q - Outside Edge of Runways</td> <td>85'' (2,159 mm)</td> </tr> <tr> <td><strong>Minimum Wheelbase</strong></td> </tr> <tr> <td>Rated Capacity:</td> <td>140'' (3,556 mm)</td> </tr> <tr> <td>75% Capacity:</td> <td>120'' (3,048 mm)</td> </tr> <tr> <td>50% Capacity:</td> <td>100'' (2,540 mm)</td> </tr> <tr> <td>25% Capacity:</td> <td>80'' (2,032 mm)</td> </tr> <tr> <td><strong>Locking</strong></td> </tr> <tr> <td>Locking Positions:</td> <td>13</td> </tr> <tr> <td>Lock Spacing:</td> <td>Every 4'' (102 mm)</td> </tr> <tr> <td><strong>Power Unit</strong></td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> <tr> <td>Noise:</td> <td>45 dB</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Two-Post-Four-Post-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/HDSO14P-HDSO14AX-Open-Front-Four-Post-Lift-Manual-5900001-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32692</b></i></a></p>
