Item # 59101 BRAND: Blue Demon

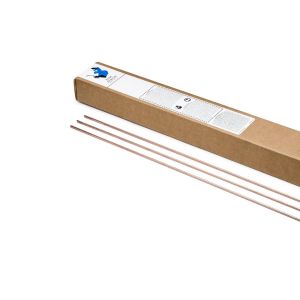

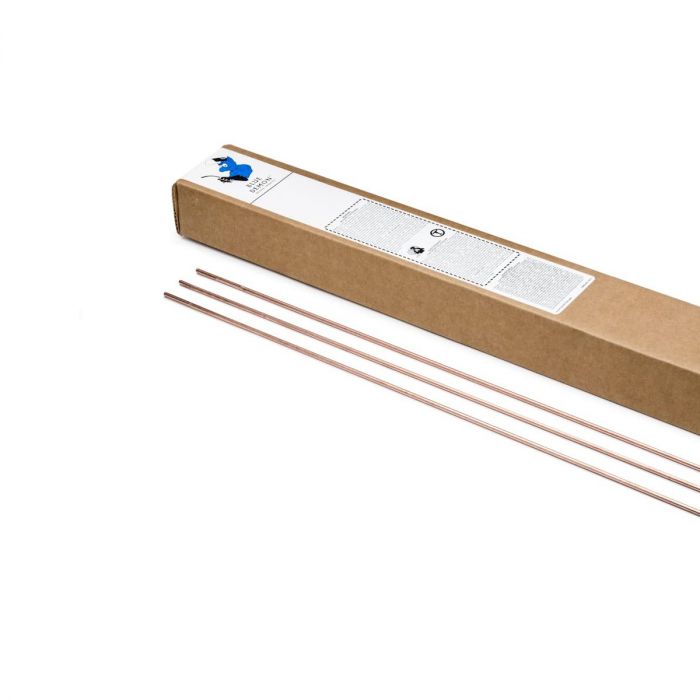

Blue Demon ER70S-6 Carbon Steel Tig Rod 1/16in x 36in x 10 lb ER70S6-063-10T

Brand: Blue Demon
In stock
SKU
59101
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 16.29ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$64.99
Loading...
Loading...
Save for Later
ER70S 6 X 1/16in X 36in X 10 Lb Box Carbon Steel Tig Rod
  • Manufacturer Warranty Included
  • 90 Day Returns + 100% Satisfaction Guarantee
  • FREE Lifetime Tech Support

QUESTIONS? Talk to an Expert:
Phone Icon  800-343-9353   |     Chat   |     Email Us

QUESTIONS? Talk to an Expert:  Phone Icon  800-343-9353   |     Chat   |     Email Us

Description

ER70S6 is a mild steel welding wire that contains higher levels of manganese and silicon than other standard grades of MIG wire to product high quality welds when used on dirty, oily, or rusty steel. The high silicon content increases the fluidity of the weld pool, thus creating a smoother bead appearance and resulting in minimal post-weld grinding. This wire is engineered to provide porosity-free, x-ray quality welds at the highest tensile strength (as welded) of all the plain carbon steel wires.

Typical Applications: general shop applications with poor fit-up or rusty, oily plates; steel castings or forging salvage; home projects; sheet metal; tanks; construction work

specifications_ax
AWS Class: ER70S6
Alloy: ER70S6
Certification: AWS A5.18/A5.18M:2005
ASME: SFA A5.18
Welding Position F, V, OH, H
Current DCEP
Tensile Strength, kpsi: 70
Yield Strength, kpsi: 58
Elongation in 2"%: 22

Typical Wire Chemistry as per AWS A5.18 (single values are maximum)

C Mn Si P S Ni Cr Mo V Cu
0.06-0.15 1.40-1.85 0.80-1.15 0.025 0.035 0.15 0.15 0.15 0.03 0.5

Typical Welding Parameters
Diameter Process Volt Travel Speed Amps Shielding Gas
in (mm) (ipm)
.035 (0.9) GMAW 23-26 11-22 160-300 Spray Transfer 98% Argon+2% Oxygen
.045 (1.2) GMAW 23-29 12-21 170-375 Spray Transfer 98% Argon+2% Oxygen
1/16 (1.6) GMAW 25-31 9-19 275-475 Spray Transfer 98% Argon+2% Oxygen
.023 GMAW 14-19 10-15 30-85 Short Circuiting Transfer 98% Argon+2% Oxygen
.030 (0.8) GMAW 15-20 12-24 40-130 Short Circuiting Transfer 98% Argon+2% Oxygen
.035 (0.9) GMAW 16-25 11-40 60-235 Short Circuiting Transfer 98% Argon+2% Oxygen
.045 (1.14) GMAW 18-23 12-22 90-290 Short Circuiting Transfer 98% Argon+2% Oxygen
.035 (0.9) GTAW 12-15 N/A 60-100 100% Argon
.045 (1.14) GTAW 13-16 N/A 70-120 100% Argon
1/16 (1.6) GTAW 12 N/A 100-160 100% Argon
1/16-3/32 (1.6)-(2.4) GTAW 12 N/A 120-250 100% Argon
1/8 (3.2) GTAW 12 N/A 150-300 100% Argon
*Note: Specifications are approximate and subject to change.
